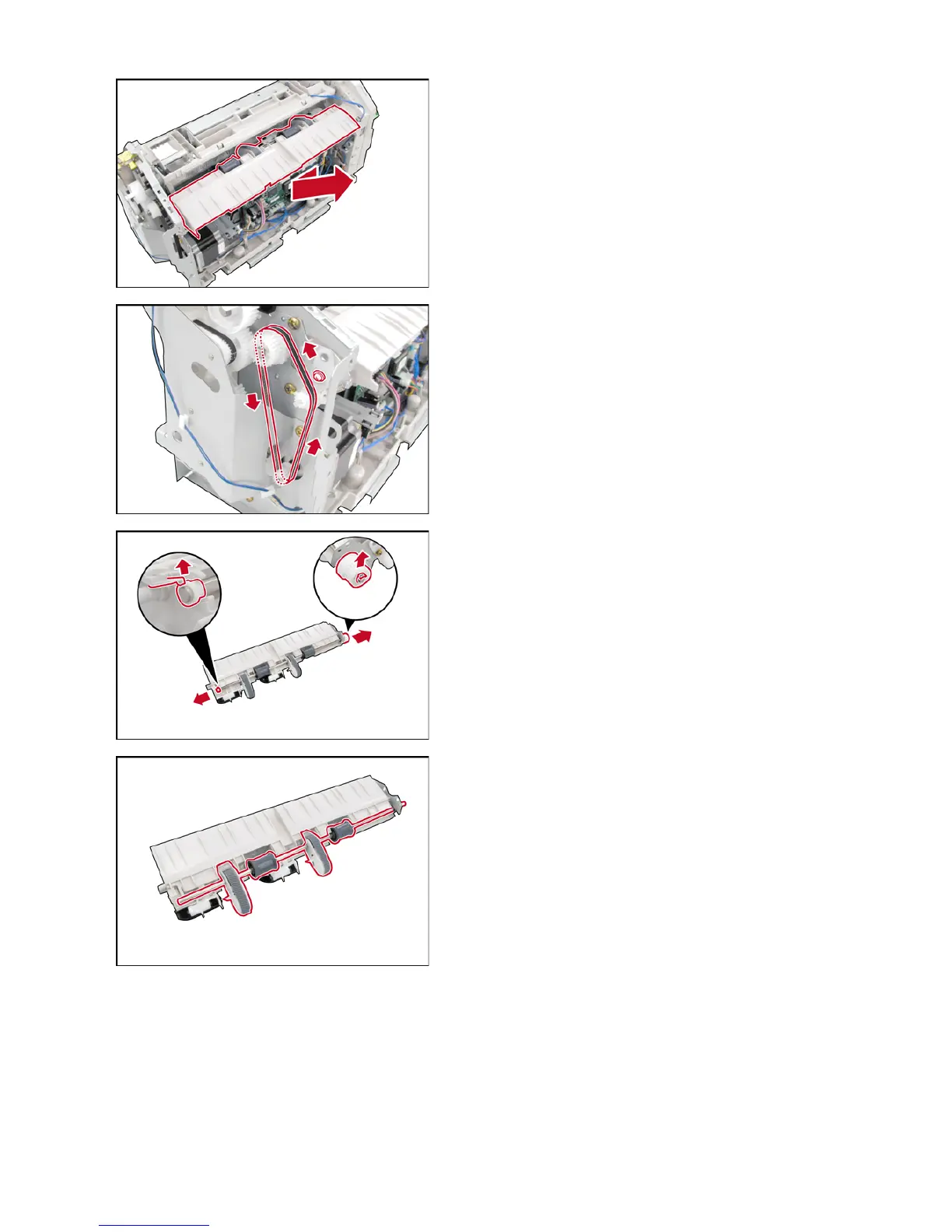

(27) Remove the Upper Guide Assembly as
illustrated.
Note:
When reinstalling, rotate the Timing Belt
counter-clockwise and then fasten 1 Screw.
(28) Remove 1 Snap Ring (2734).
(29) Remove the Feed Roller Gear (2702).
(30) Remove the Bushing (2919).
(31) Remove the Feed Roller Assembly (2911).
