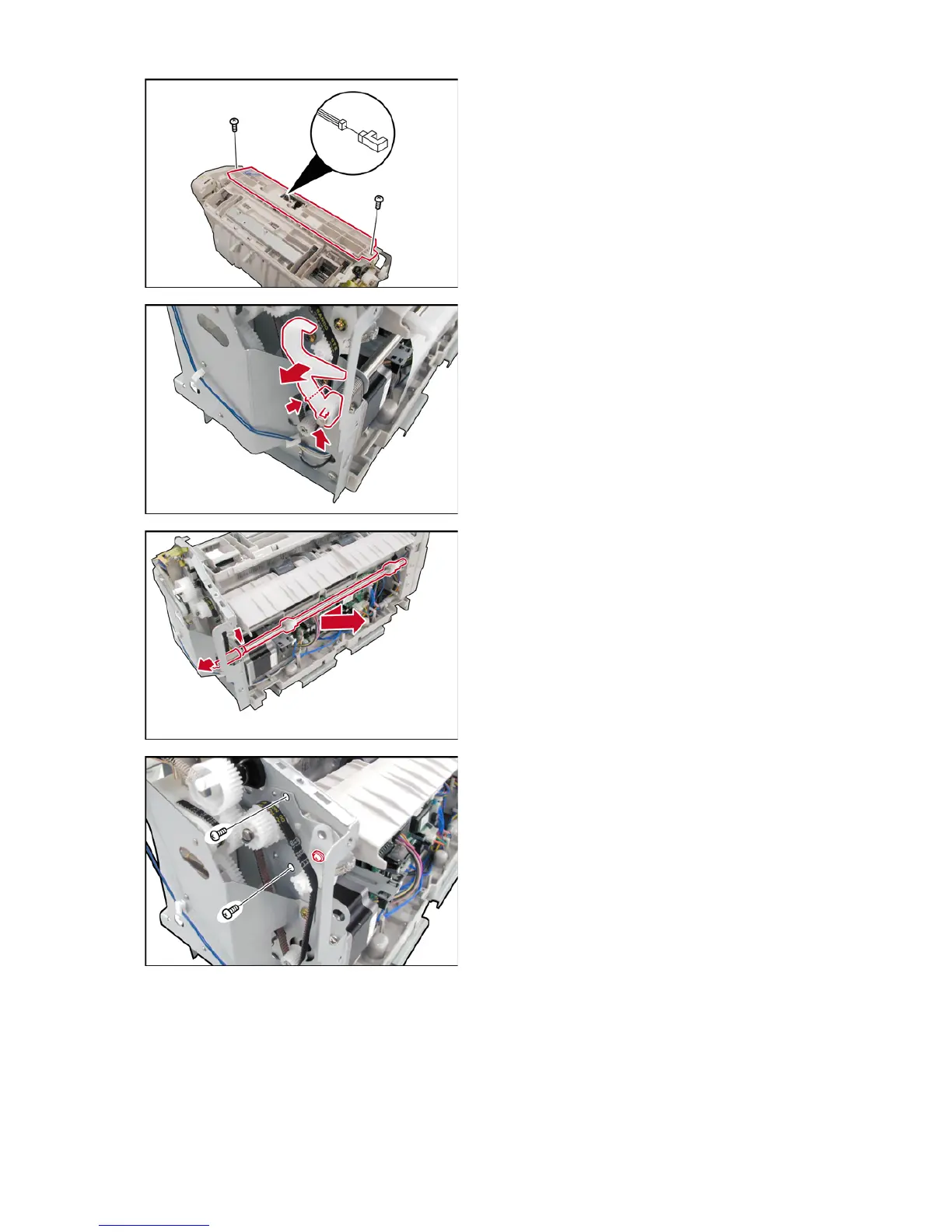

(18) Disconnect the Harness.
(19) Remove 1 Screw (2521) and 1 Screw (2631).
(20) Remove the Guide Base (2832) Assembly.
(21) Release the Tension Spring (3024) and Latch,
and then remove the Lock Arm (3025).
(22) Remove the Tension Spring (3024).
(23) Remove 1 Snap Ring (3023).
(24) Remove the Lock Lever Shaft (3020) Assembly
as illustrated.
(25) Loosen 1 Screw (2706).
(26) Remove 2 Screws (2632).
