268
DP-2330/3030
MAR 2005
Ver.2.1
DP-2310/3010

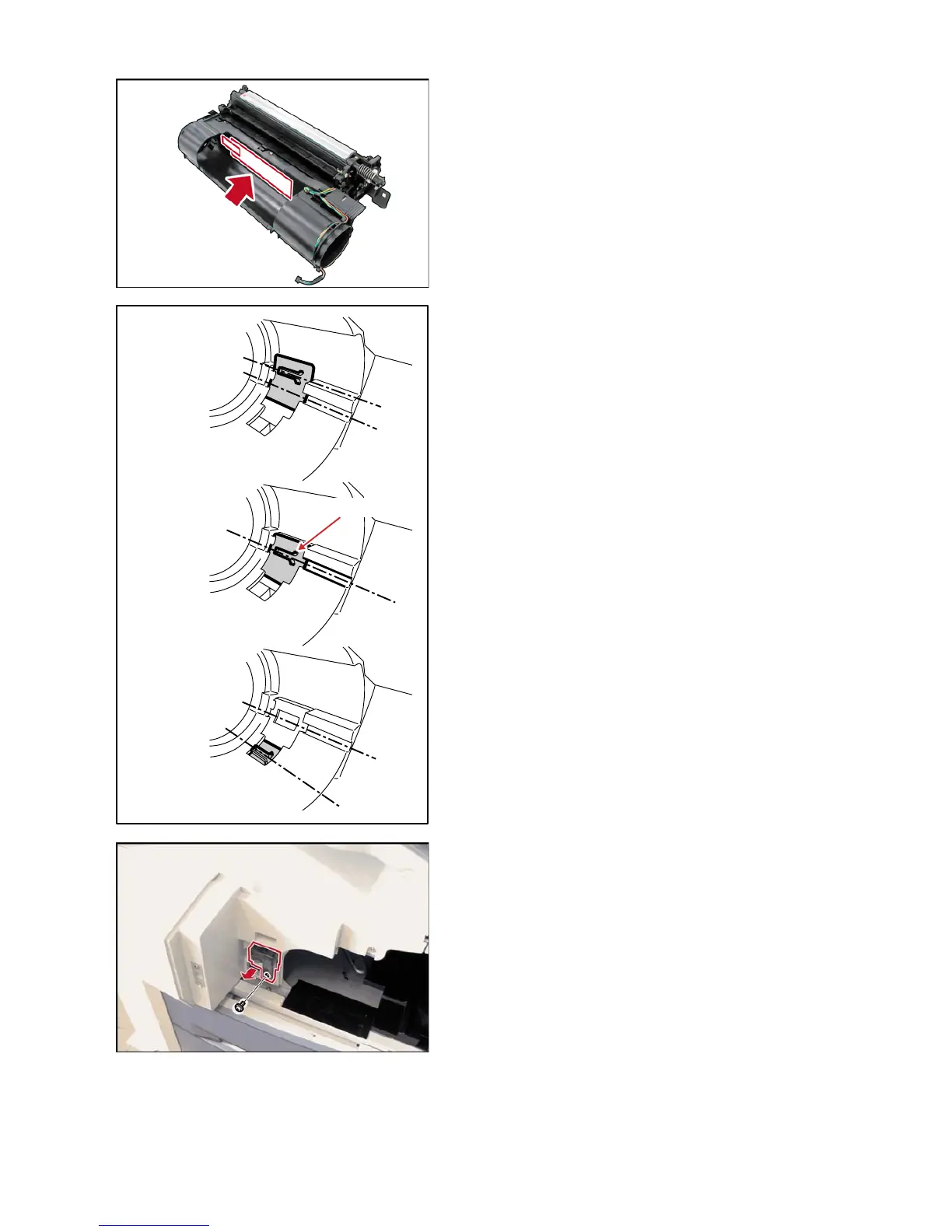

(31) Remove the Tape and the Instruction Paper.
Note:
Before installing the Process Unit into the
Machine, ensure that the Shutter's alignment
guide is positioned as illustrated.
(32) Open the Front Cover wide.
(33) Remove 1 Screw.
(34) Remove the Connector Cover (Clear Blue).
Incorrect
Incorrect
Correct
Alignment Guide
To Next Page
