<Preparing the Process Unit>

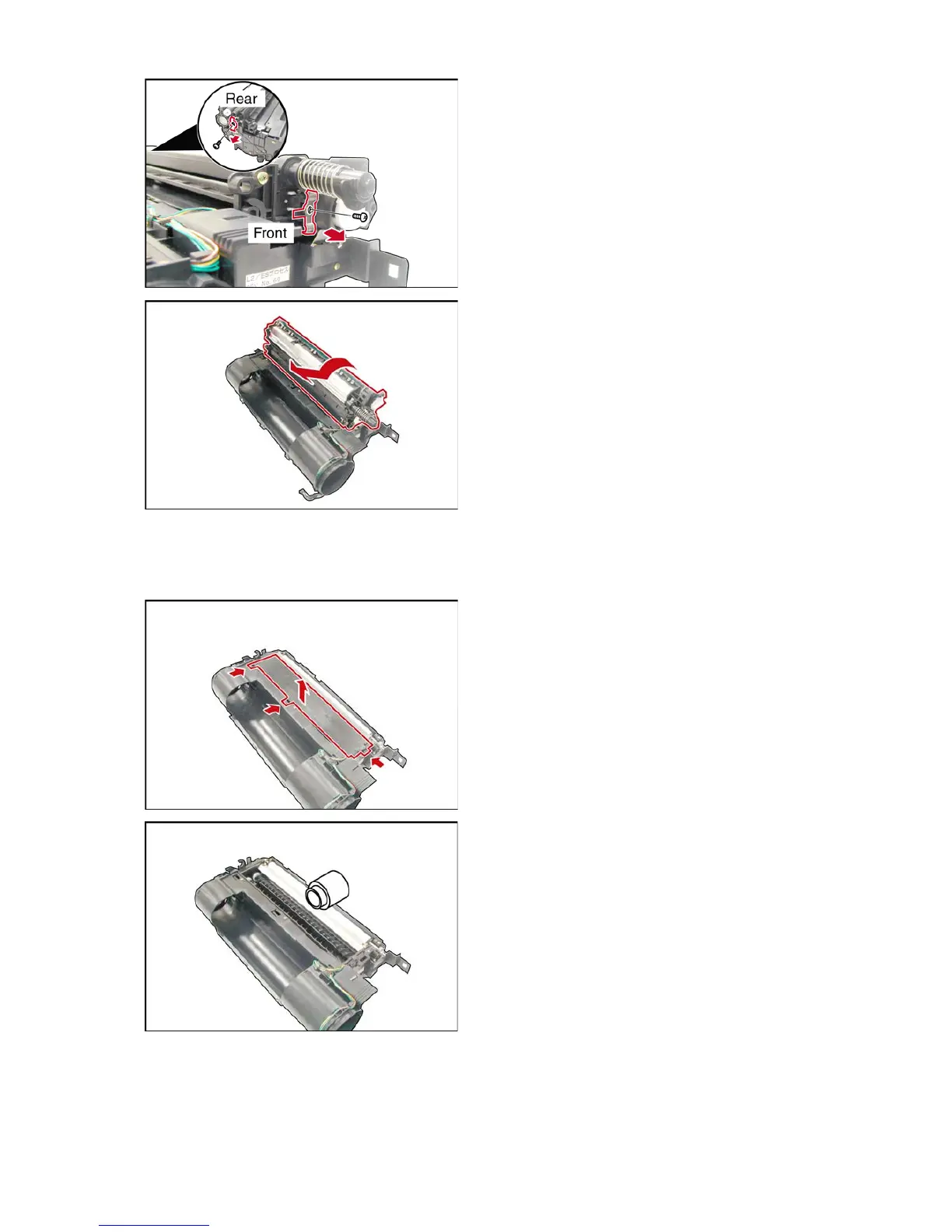

(19) Remove 1 Screw.
(20) Remove the Front Fixing Metal Bracket (longer
plastic tab).
(21) Remove 1 Screw.
(22) Remove the Rear Fixing Metal Bracket (shorter
plastic tab).
(23) Carefully remove the packing tape and protective
sheet from the OPC Drum Assembly.
(24) Turn the OPC Drum Assembly in the direction
of the arrow and remove.
Caution:
Exercise caution not to scratch the surface of the
OPC Drum (Green), and not to touch it with bare
hands.
Caution:
The OPC Drum is sensitive to light. To prevent
optical exposure problems, do not expose the
OPC Drum to direct sunlight or bright light (even if
it is a 1000-Lux fluorescent lamp).
(25) Release 3 Latch Hooks and remove the
Developer Cover.
(26) Shake the Developer Bottle thoroughly (approx.
30 seconds).
(27) Pour the appropriate developer evenly into the
developer unit. Make sure to empty the bottle.
(28) Close the Developer Cover.
(29) Reinstall the OPC Drum Assembly.
(30) Reinstall 2 Fixing Metal Brackets and 2
Screws.
