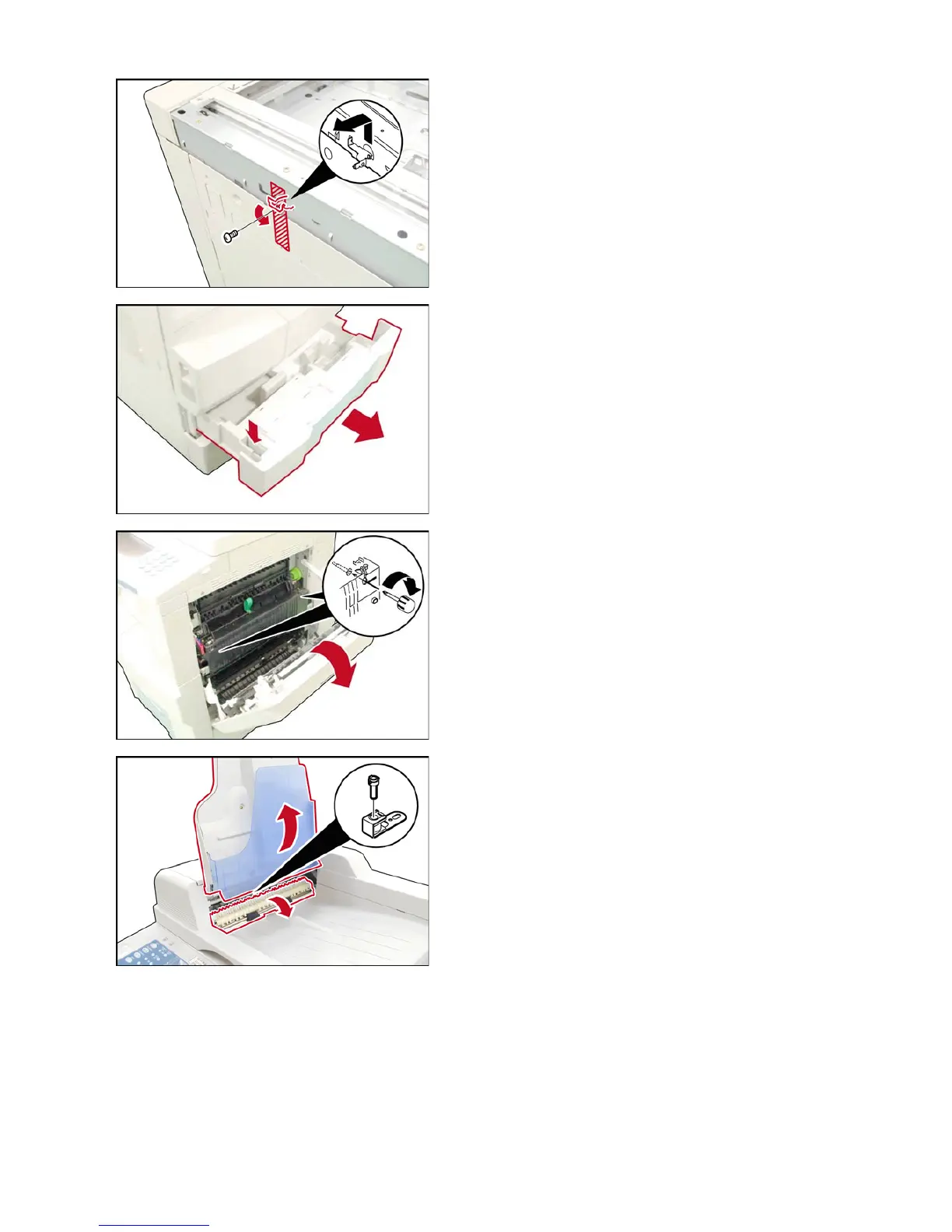

(9) Remove the Tape.
(10) Remove 1 Blue Screw.
(11) Remove the Shipping Metal Bracket by rotating
counterclockwise to unlock the Scanner.
(12) Reinstall the Left Platen Cover.
(13) Store the Shipping Metal Bracket and the Blue
Screw into the space provided in the 1st Paper
Tray.
<Unlocking the Pressure Roller>
(14) Open the Right Cover.
(15) To unlock the Pressure Roller, using a Stubby
Phillips Screwdriver, tighten 2 Screws recessed
in the holes located on the Upper Fuser Cover.
<Installing the Stamp Assembly for USA/Canada>
(16) Lift the Original Tray Assembly.
(17) Lower the Inverting Guide 2 Assembly.
(18) Install the Stamp Assembly.
To Next Page
