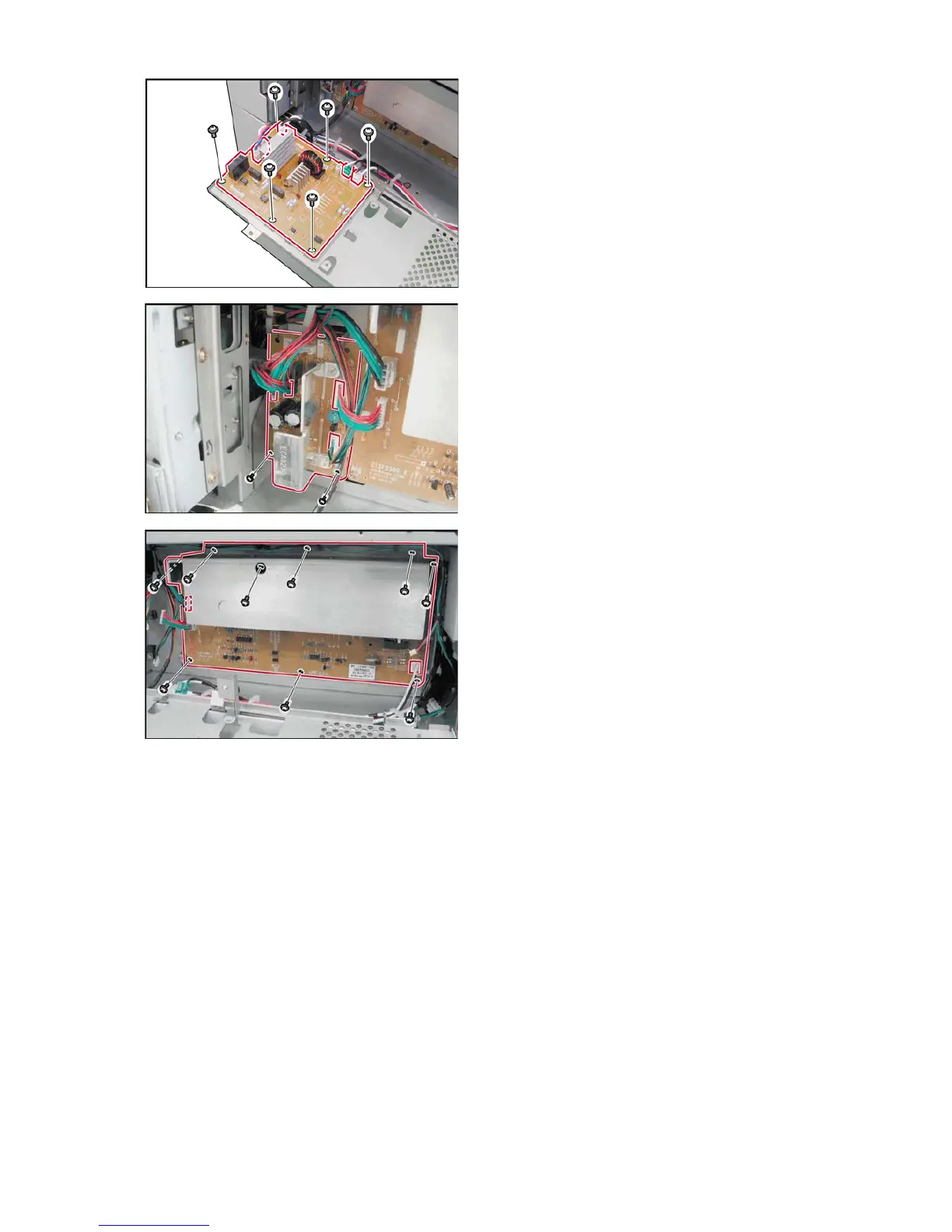

(10) Remove 6 Screws (6P).
(11) Disconnect all the Harnesses on the ACD PC
Board.
(12) Remove the ACD PC Board (1904).
(13) Remove 2 Screws (6P).
(14) Disconnect all the Harnesses on the DC PC
Board.
(15) Remove the DC PC Board (1905).
(16) Remove 9 Screws (6P).
(17) Remove all the Harnesses on the LVPS
(18) Remove the LVPS (1910).
