(3) Install the Hardware Key into one of the three
available connectors (CN67, CN68 or CN69) on
the SC PC Board.
Note:

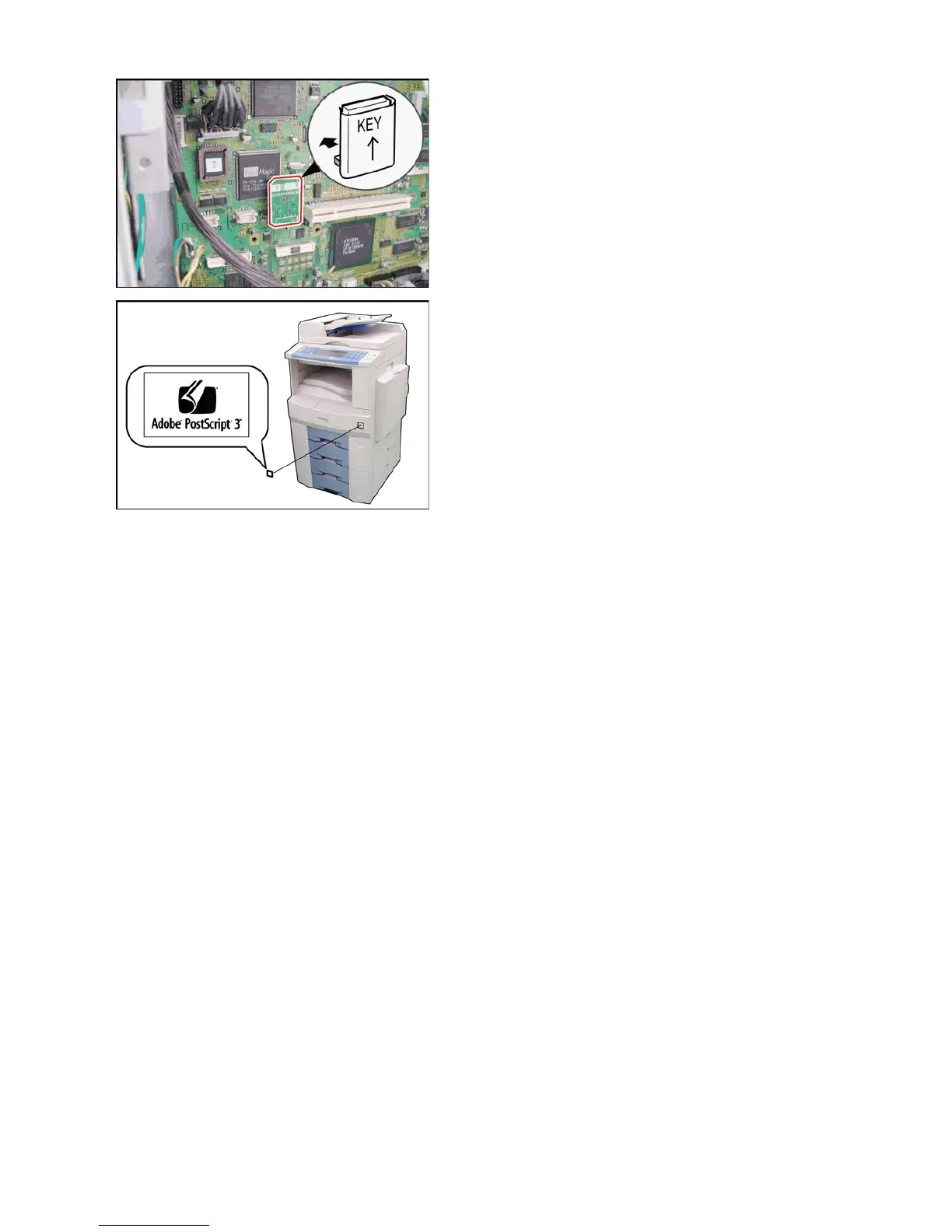

The connectors are keyed, to prevent damage to
the SC PC Board, install the Hardware Key as
illustrated. Do not force the Hardware Key into the
connector if facing the wrong way.
(4) Proceed with the installation of other options.
If finished, close and secure the Rear Cover and
reinstall remaining Covers.
(5) Plug the AC Power Cord into the wall outlet and
turn the Main Power Switch on the Back and the
Power Switch on the Left Side of the machine to
the ON position.
(6) Update the firmware of the unit to the PS/PCL
Option firmware. Refer to section 8.2. Service
Notes of this manual.
(7) Install the PS/PCL6 Software into the PC with
the Operating Instructions by following the
prompts of the Installation Wizard.
(8) Attach the Adobe PostScript 3 Label to the Front
Cover as illustrated.
