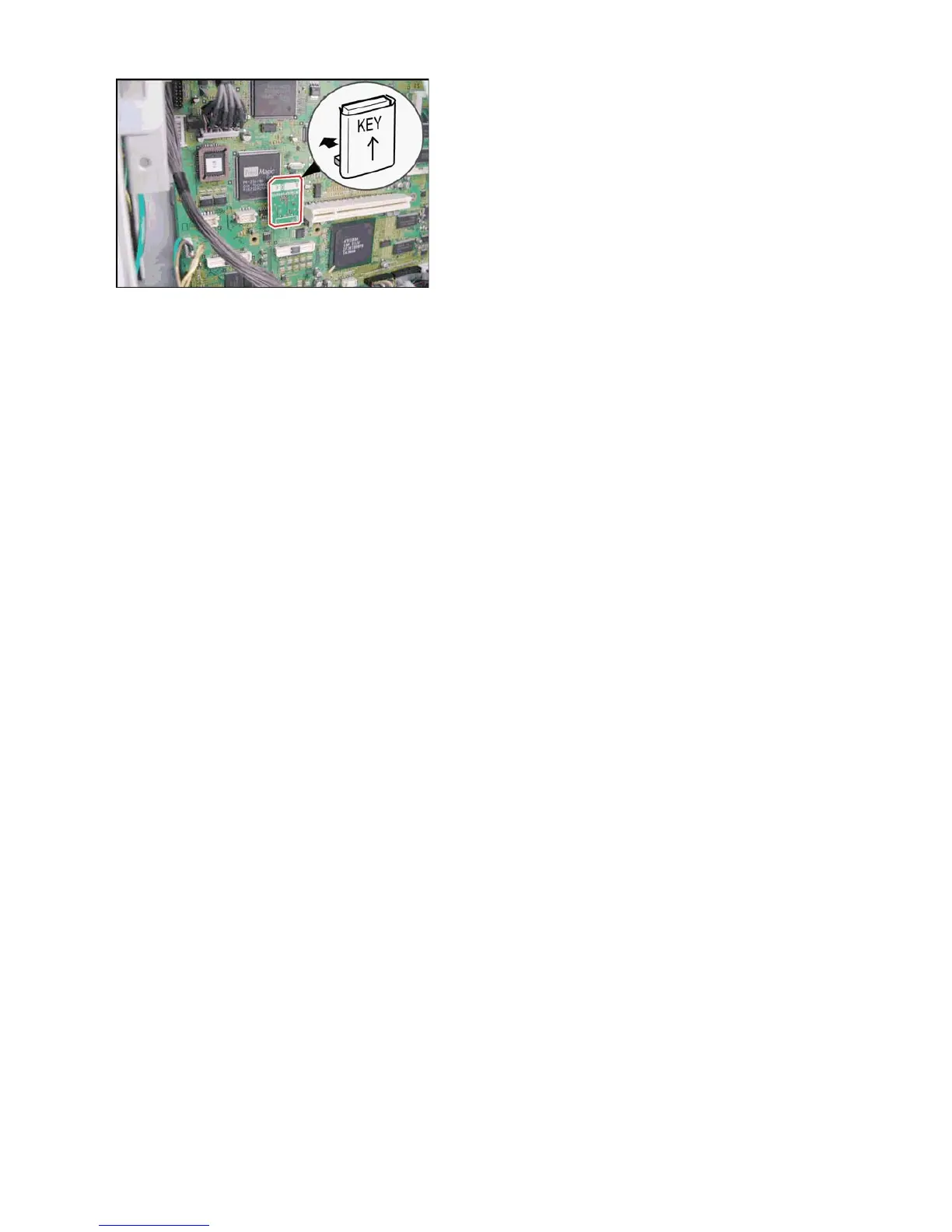

(3) Install the Hardware Key into one of the three
available connectors (CN67, CN68 or CN69) on
the SC PC Board.
Note:
The connectors are keyed, to prevent damage to
the SC PC Board, install the Hardware Key as
illustrated. Do not force the Hardware Key into the
connector if facing the wrong way.
(4) Proceed with the installation of other options.
If finished, close and secure the Rear Cover and
reinstall remaining Covers.
(5) Plug the AC Power Cord into the wall outlet and
turn the Main Power Switch on the Back and the
Power Switch on the Left Side of the machine to
the ON position.
(6) Execute Parameter Initialize by following the
steps below.
a) Press the "FUNCTION", "ORIGINAL SIZE
(LEDGER/A3)" and "3" keys simultaneously in
that order to enter the Service Mode.
b) Press the "9" and "START" keys to enter the
F9 Mode (Unit Maintenance).
c) Press "00 FAX Service Mode".
d) Press "06 RAM Initialize".
e) Press "01 Parameter Initialize" and the "Yes"
button.
f) Press the "STOP" key.
g) Press the "FUNCTION" and "C" (CLEAR)
keys simultaneously to exit the Service Mode.
(7) Install the Internet Fax/Email Software into the
PC with the Operating Instructions by following
the prompts of the Installation Wizard.
