Panasonic DP-2330

355
DP-2330/3030
MAR 2005
Ver. 2.1
DP-2310/3010

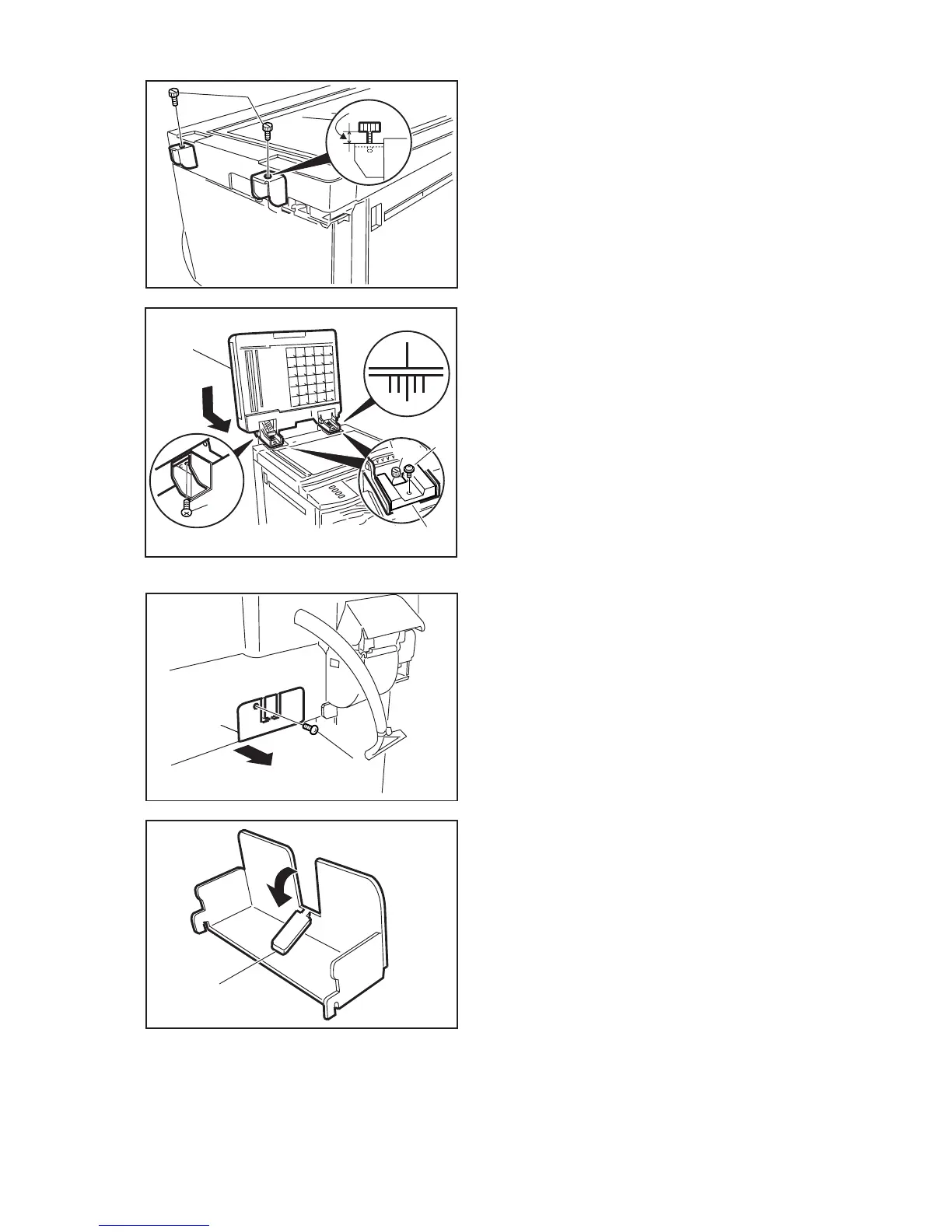

(3) Install 2 Thumb Screws, one on each ADF
Mounting Bracket.
Note:
When installing the 2 Thumb Screws, do NOT
tighten the Screws. Keep about 6-8mm space as
illustrated.
(4) Install the Automatic Document Feeder on top of
the ADF Mounting Brackets.
Note:
a. Set the Automatic Document Feeder in the
direction of the arrow.
b. Align the hallmark on the right side of the
Hinge Base and the ADF Mounting Bracket
as illustrated.
(5) Tighten the 2 Thumb Screws (Silver).
(6) Install 2 Hinge Cover 2.
(7) Secure the Automatic Document Feeder with 2
Silver Screws.
(8) Install 1 Screw on the back of the left ADF
Mounting Bracket from the bottom.
(9) Remove 1 Screw.
(10) Remove the CN Bracket.
(11) Bend the protective Tab on the CN Bracket more
than 90° as illustrated.
(3)
6~8mm
(4)
(8)
(7)
(5)
(6)
(10)
(9)
(11)
