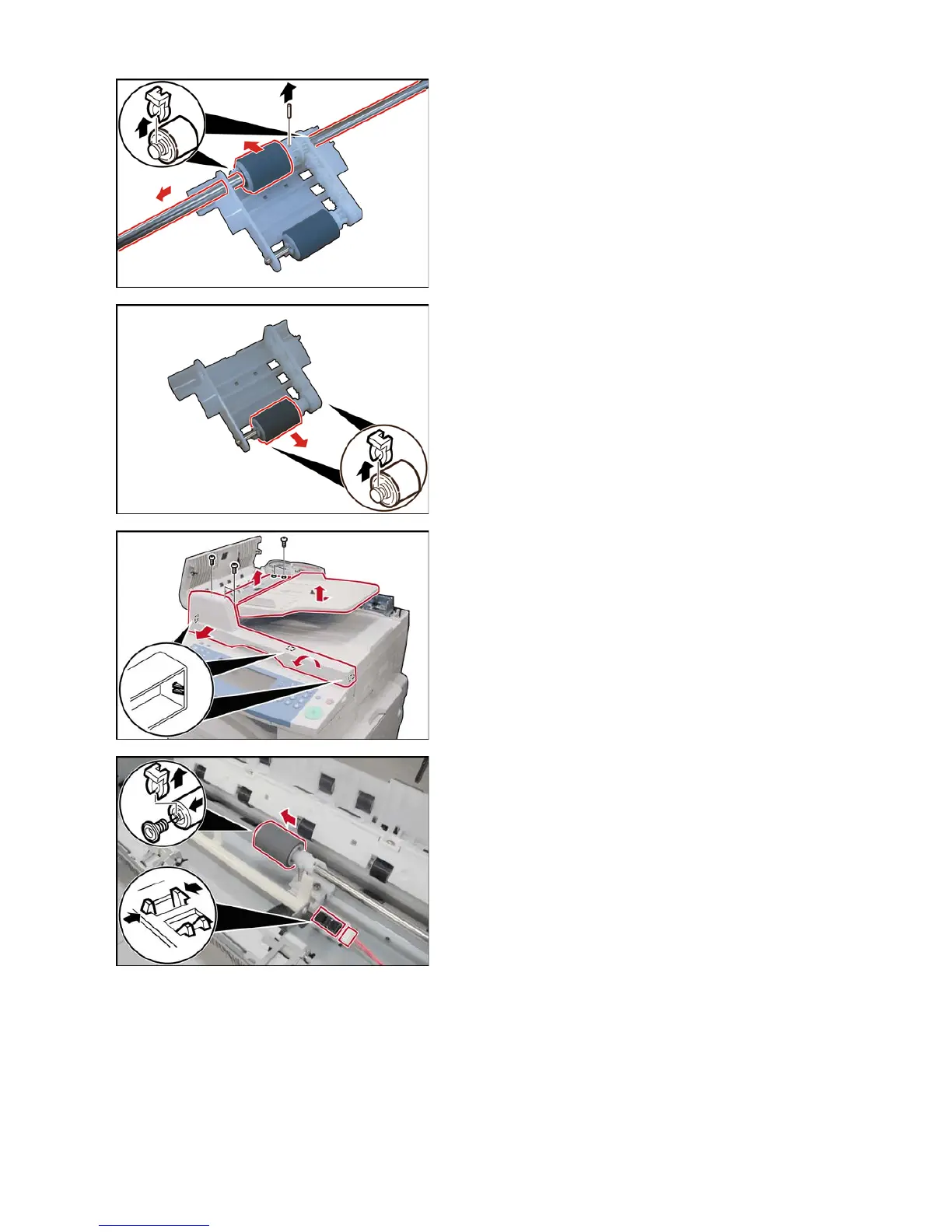

(15) Remove the Snap Ring (S9).
(16) Remove the Pin (744).
(17) Remove the ADF Shaft (1724).
(18) Remove the ADF Roller (1728).
(19) Remove the Snap Ring (S9).
(20) Remove the Pre-Feed Roller Shaft (1730).
(21) Remove the Pre-Feed Roller (1731).
(22) Remove 1 Silver Screw (B1).
(23) Remove the ADF Front Cover (1637).
Note:
Release 3 Latch Hooks in alphabetical order and
in the direction as shown by each arrow.
(24) Remove 4 Screws (19).
(25) Remove the Upper ADF Guide (1723).
(26) Remove the Snap Ring (S9).
(27) Remove the Torque Limiter Bushing (1741)
and Torque Limiter Spring (1742).
Note:
When reinstalling the Torque Limiter Assembly,
ensure that the Torque Limiter Spring is placed
into the deeper slot of the Separation Roller.
(28) Remove the Separation Roller (1740).
(29) Disconnect the APNT Harness (1956) and
remove Sensor (1045) (Original Detection
Sensor).
