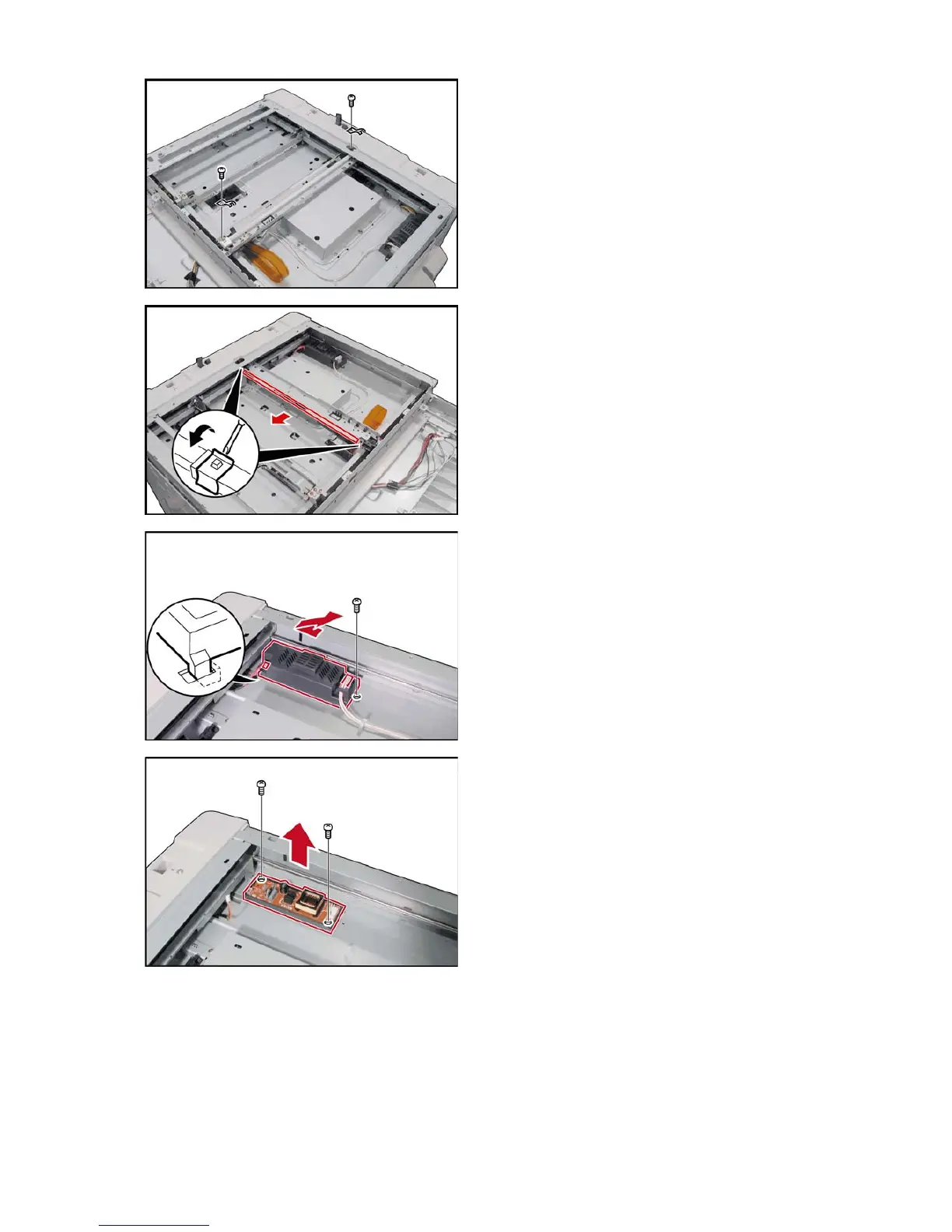

(8) Remove 2 Screws (19).
(9) Remove the 2 Lamp Plate Springs (232).
(10) Disconnect the Harness on the LFB PC Board
(CN181).
(11) Remove the Scanning Lamp (204).
(12) Remove 2 Mirror Plate Springs (230).
(13) Remove Mirror 1 (264).
Note:
Observe the position of the Mirror 1 before
removing it. The Black Mark on the Mirror,
indicates non-reflective side. When reinstalling,
make sure the smooth side of Mirror 1 with the
Black Mark is pointing downwards.
(14) Disconnect 2 Harnesses on the Inverter PC
Board (CN1 and CN2).
(15) Remove 1 Screw (19).
(16) Remove the Inverter Upper Cover (212).
(17) Remove 2 Screws (19).
(18) Remove the Inverter PC Board (268).
