Panasonic DP-2330

96
DP-2330/3030
MAR 2005
Ver.2.1
DP-2310/3010
Automatic Duplex Unit
Bias Transfer Roller
(BTR)
1221 EM-50L
KS-660
Registration Pinch
Roller
1222
Front Bushing 1231
Rear Bushing 1233
Roller Shaft 1313 EM-50L
Pinch Roller 1518
Drive Roller 1409 EM-50L
P6L5 Bushing 1150
Pinch Spring 1411 EM-50L
Pinch Roller 1518
Mechanical Parts
Ref.
No.

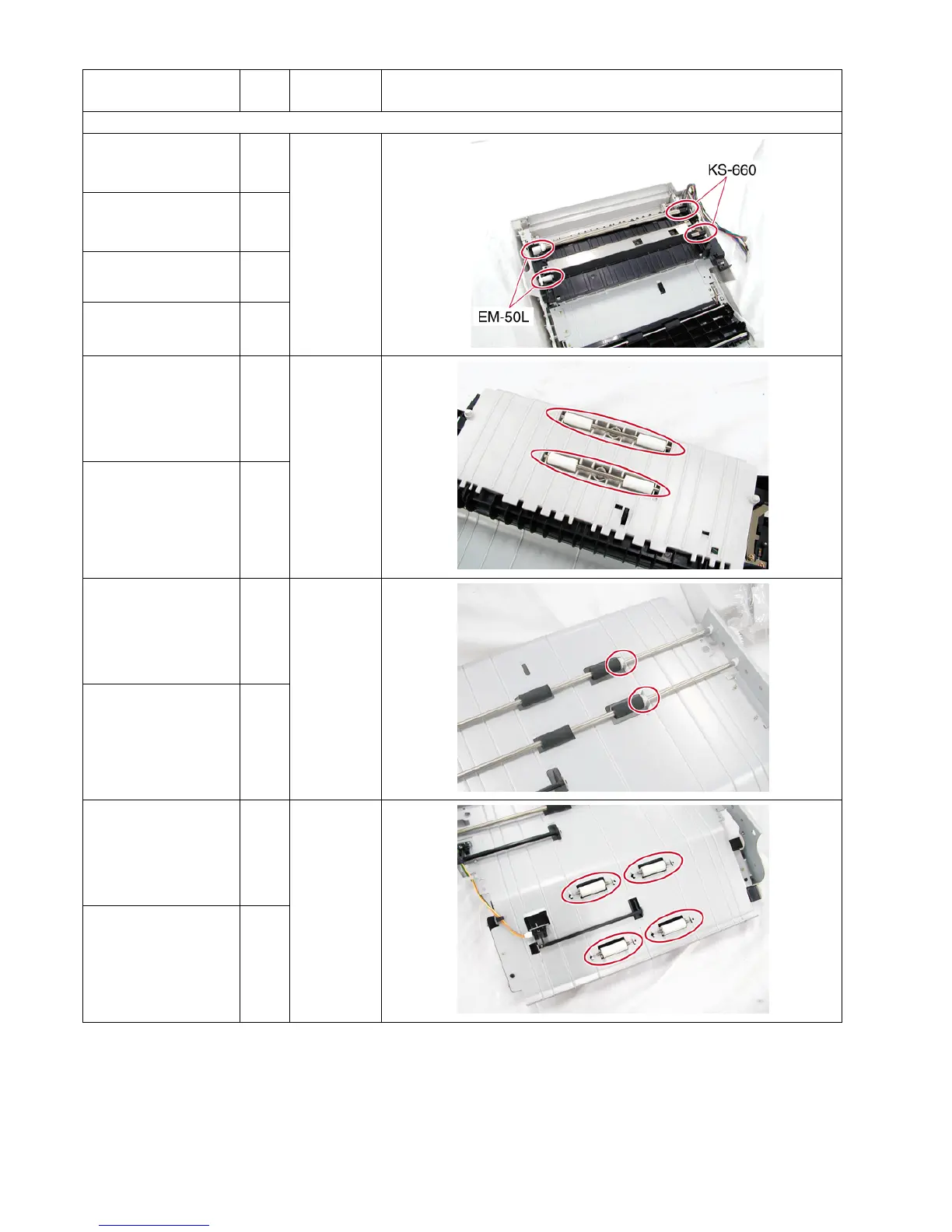

Grease Lubrication Point
