Internal Assemblies — Front Case 4: Repair
103
4 Remove the UI PCA.
 Removal UI PCA R1.1
1 Unplug the seven cables, see Figure 71.
2 Refer to step 2 to 4 to remove the UI PCA.

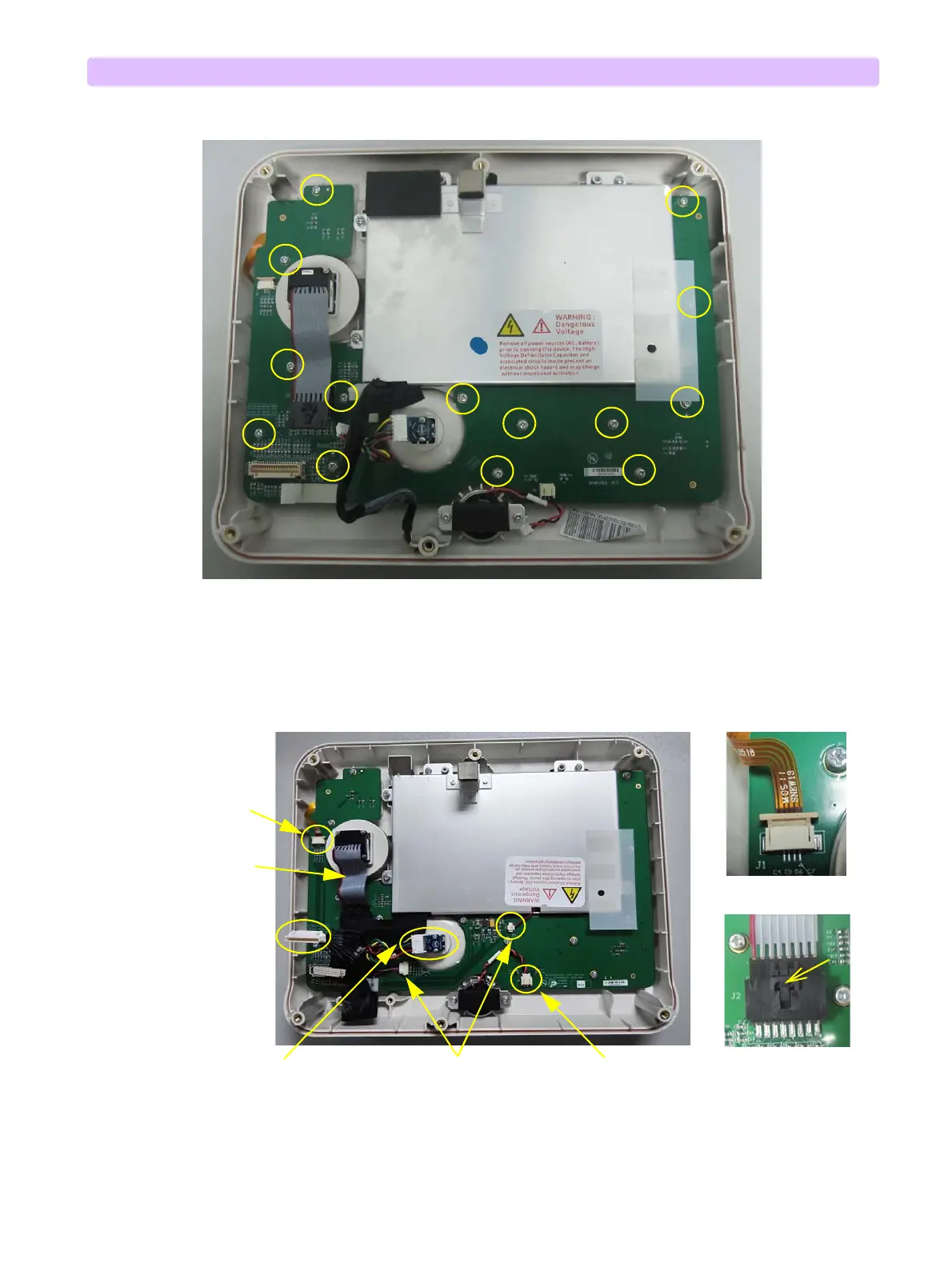

Figure 70 UI PCA-2
Figure 71 UI PCA-3
RFU
Indicator
Cable
Therapy
Encoder
Cable
UI PCA to
Processor
PCA Cable
Smart Select Knob Encoder Cable Alarm Speaker Cable
RFU Indicator Cable
Therapy Encoder Cable
LCD Display Cables
