LIFEPAK 15 Monitor/Defibrillator
Service Manual
Replacement Procedures
Interface PCB (A05) Replacement
Section Menu Section Contents Procedures Back Index
191
8

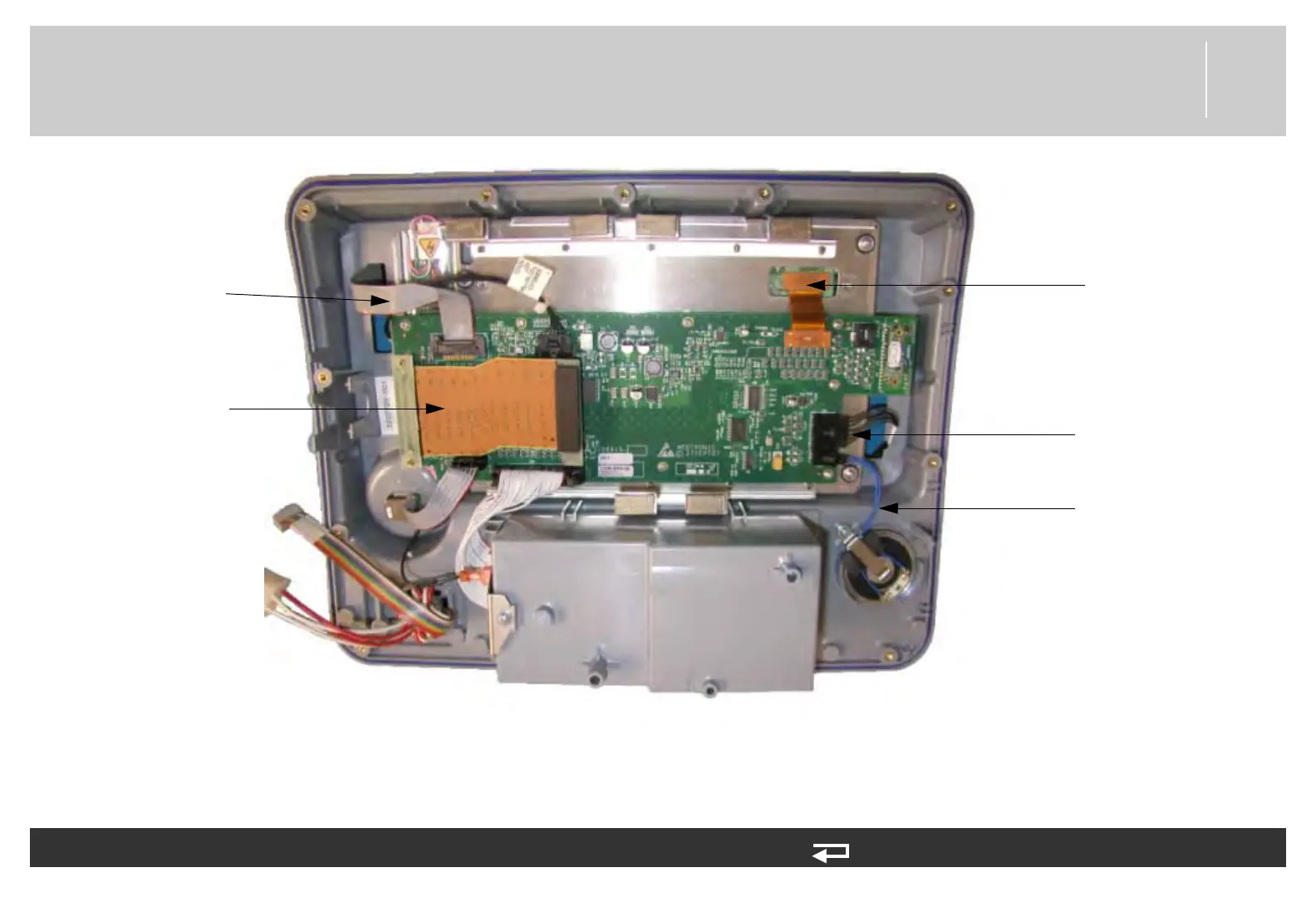

Figure 8.11—Interface PCB cable connection locations - view 1 of 2
W7 - speaker cable
(3009726-03) - J34
W12 - printer control
keypad cable (
3206989-000) -
J32
W18 - LCD cable
(3206990-001) - J36
W04 - system flex cable
(
3206991-003) - J30
W13 - main keypad
cable (3207388-001) - J31
