Physio Control LIFEPAK 15 - Page 190

LIFEPAK 15 Monitor/Defibrillator
Service Manual
Replacement Procedures
Interface PCB (A05) Replacement
Section Menu Section Contents Procedures Back Index
192
8

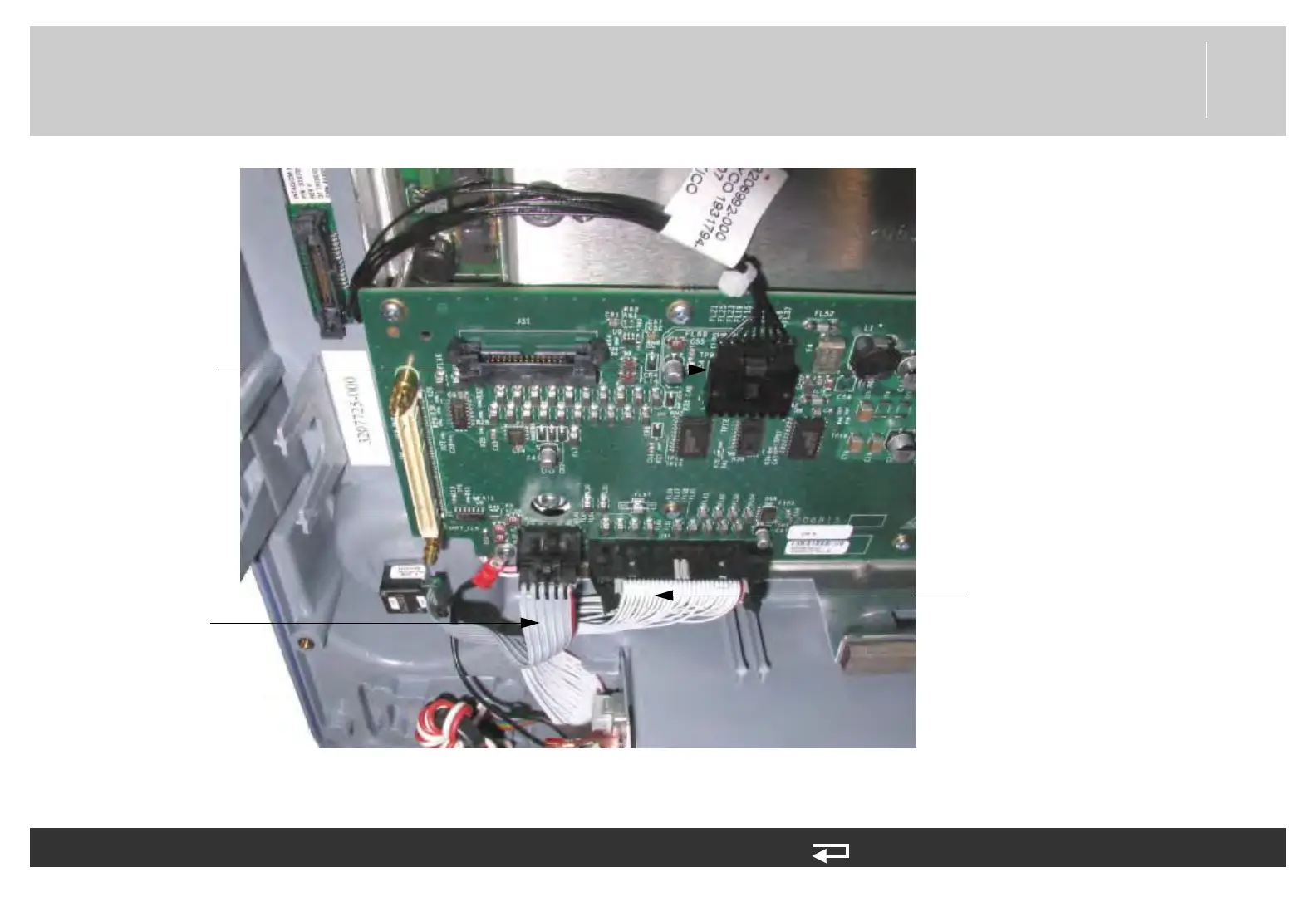

Figure 8.12—Interface PCB cable connection locations - view 2 of 2
W06 - backlight inverter
cable (3206992-000) - J37
W16 - printer interface
cable (3009724-001) - J35
W15 - speed dial (rotary
switch) cable - J33
