LIFEPAK 15 Monitor/Defibrillator
Service Manual
Replacement Procedures
SpO2 PCB (A16) Replacement
Section Menu Section Contents Procedures Back Index
281
8
5. Install the mounting bracket (3206962-001) using two new
screws (202253-764); torque to 6.8 in-lb.
 To install the SpO2 Module in the rear case (see Figure 9.21 on p. 413): (Continued) 13 steps, (Page 2 of 4)

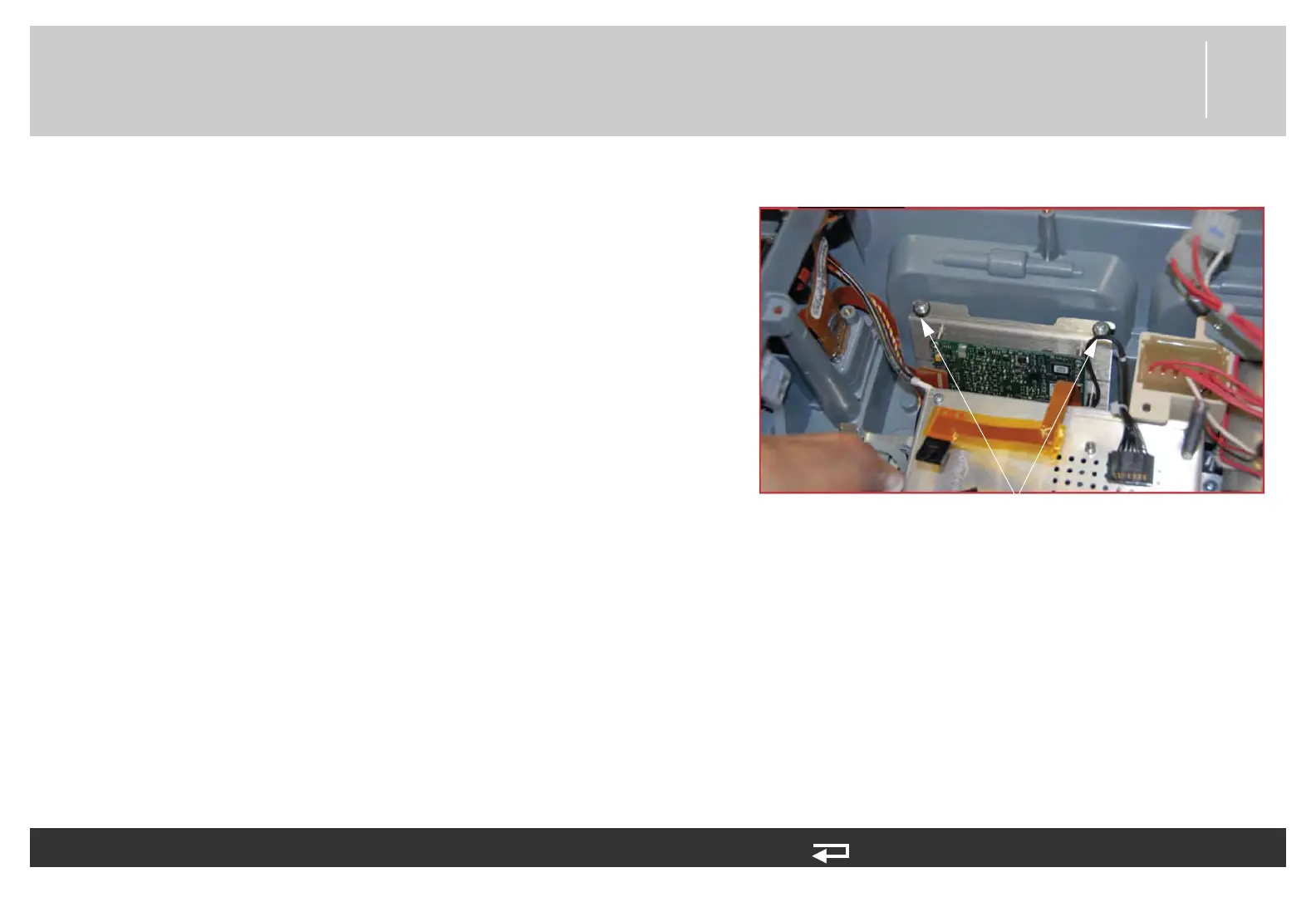

screw locations
Figure 8.73—SpO2 mounting bracket
