LIFEPAK 15 Monitor/Defibrillator
Service Manual
Assembly Diagrams and Parts Lists
Connection Diagrams for Assemblies, Control Boards, Cables, and
Connectors
Section Menu Section Contents
Back
Index
461
9
Biphasic Module

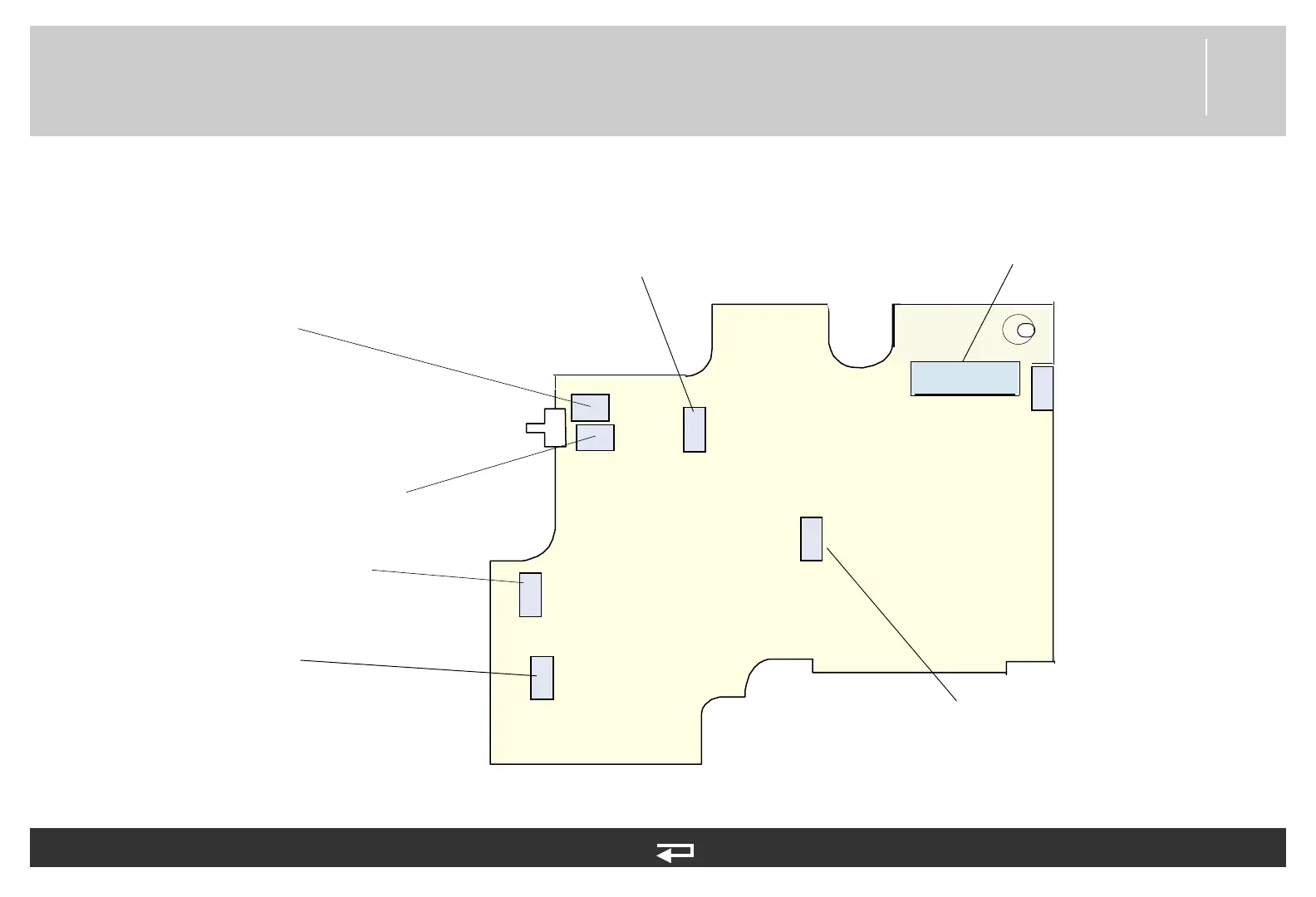

Figure 9.39—Diagram for item A22
Inductive Resistor
(p. 456)
Interconnect
Bracket (p. 459)
Pin 6
Interconnect
Bracket (p. 459)
Pin 9
Interconnect
Bracket (p. 459)
Pin 3
Transfer Relay
Assembly (p. 455)
Biphasic to
Therapy PCB Flex
Cable (p. 482)
Refer to Figure 9.18: Rear Case view 5 of 7, p. 404.
See also MIN 3010178-010 in parts table.
J106
J102
J104
J108
J105
J103
J101
Inductive
Resistor (p. 456)
