LIFEPAK 15 Monitor/Defibrillator
Service Manual
Assembly Diagrams and Parts Lists
Connection Diagrams for Assemblies, Control Boards, Cables, and
Connectors
Section Menu Section Contents
Back
Index
465
9

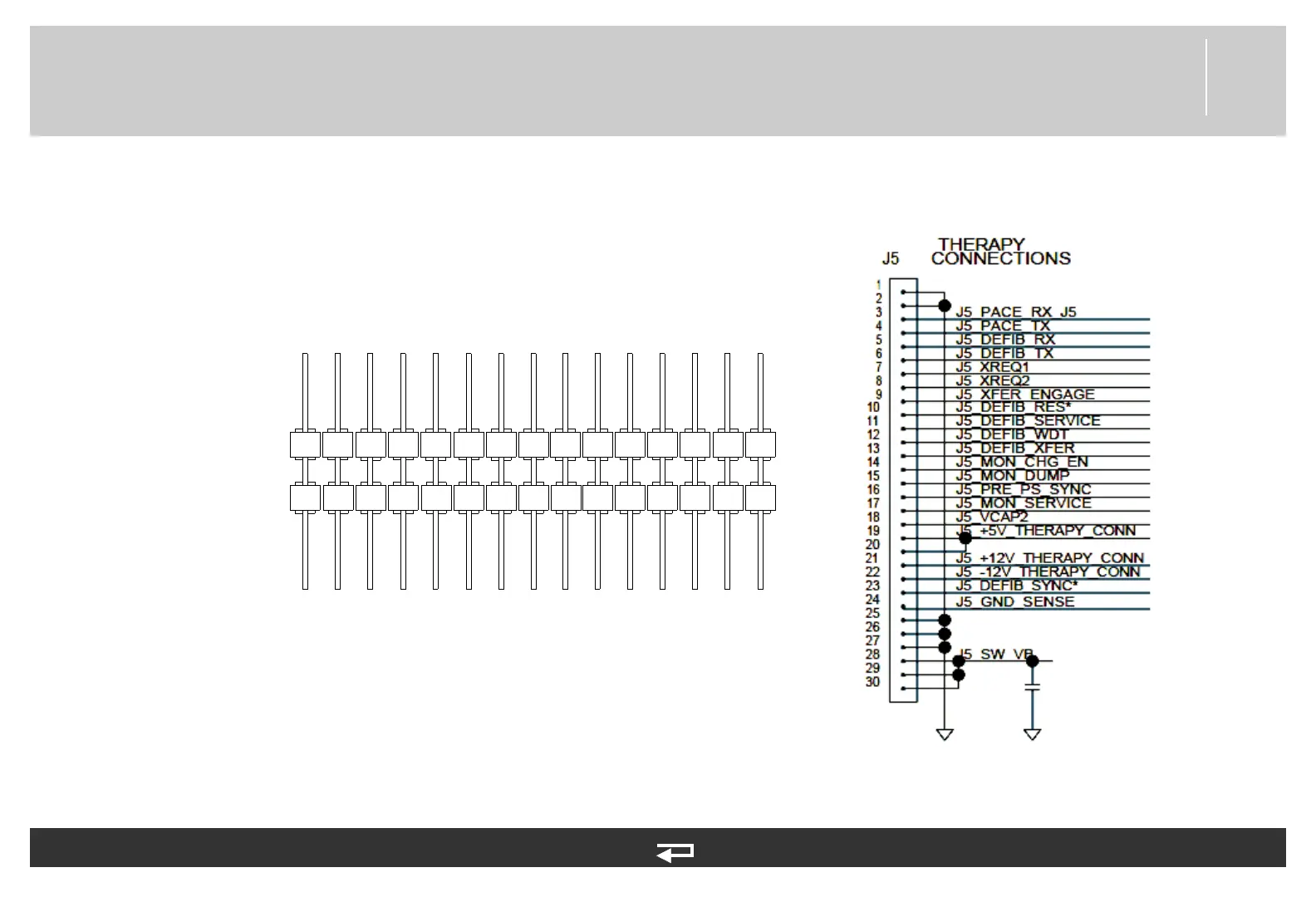

System PCB/Therapy PCB Connector
Figure 9.43—Diagram for item W03
P5 - System PCB (p. 444)
P50 - Therapy PCB (p. 446)
Refer to Figure 9.17: Rear Case view 4 of 7, p. 403.
See MIN 3207692-000 in table for part information.
