LIFEPAK 15 Monitor/Defibrillator
Service Manual
Assembly Diagrams and Parts Lists
Connection Diagrams for Assemblies, Control Boards, Cables, and
Connectors
Section Menu Section Contents
Back
Index
468
9

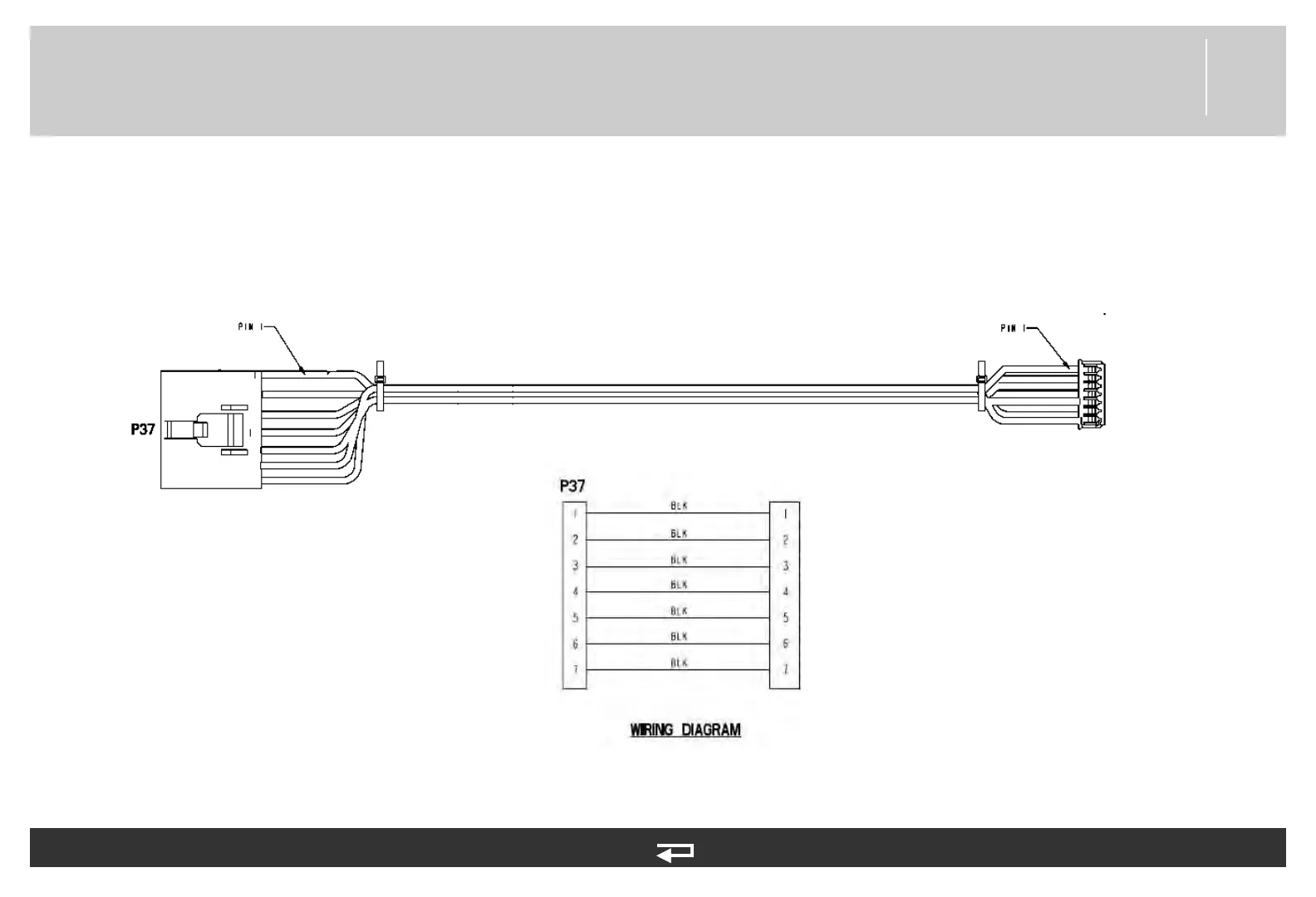

Backlight PCB/Interface PCB Cable
Figure 9.46—Diagram for item W06
Refer to Figure 9.6: Front Case parts view 2 of 3, p. 379.
See MIN 3206992-000 in table for parts information.
P37
P49
Pin 1
Interface PCB (p. 447)
Backlight PCB (p. 450)
To Next Page
