LIFEPAK 15 Monitor/Defibrillator
Service Manual
Assembly Diagrams and Parts Lists
Connection Diagrams for Assemblies, Control Boards, Cables, and
Connectors
Section Menu Section Contents
Back
Index
471
9
Auxiliary Power Connector Cable (V2)

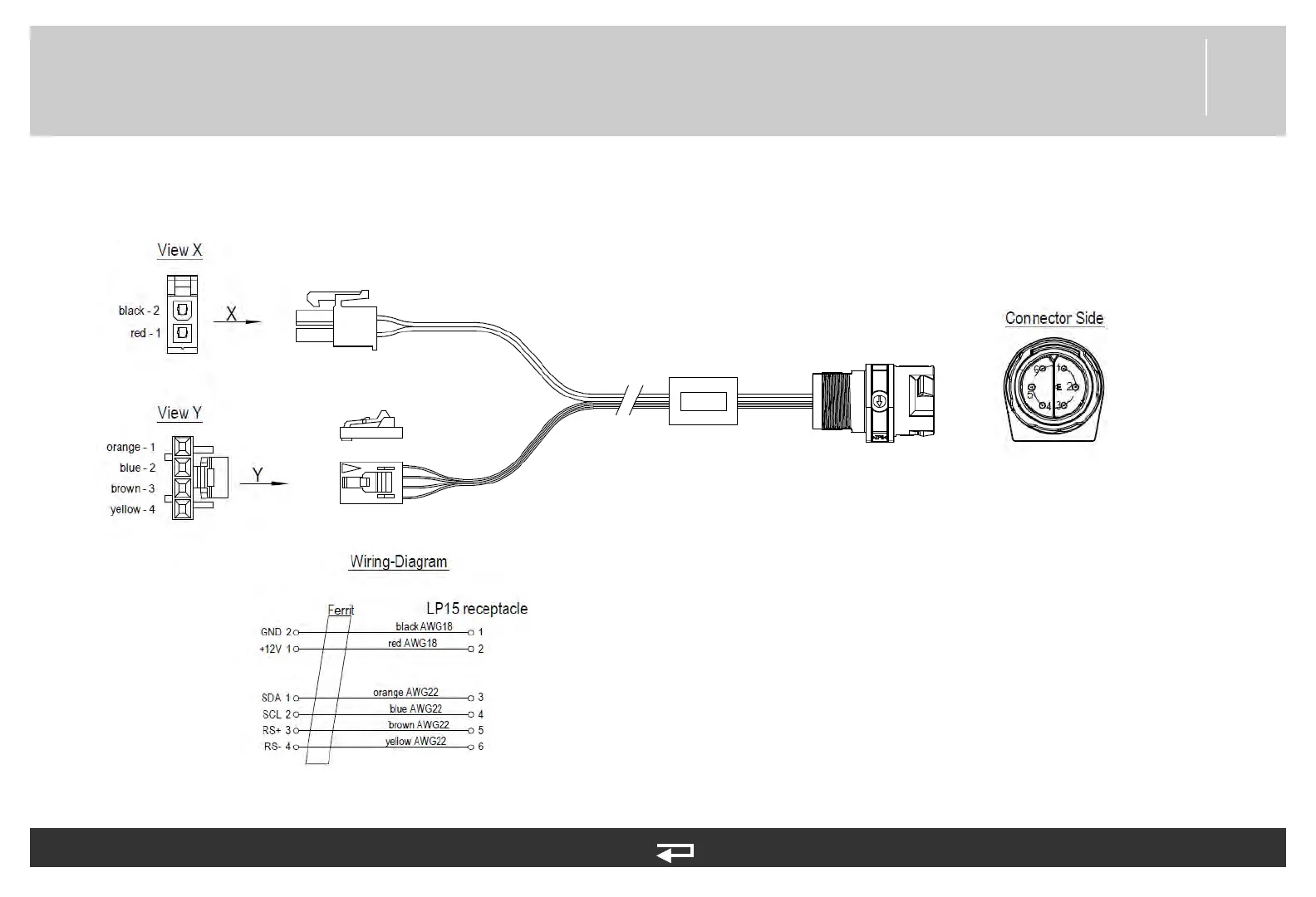

Figure 9.49—Diagram for item W09
Power PCB (p. 445)
Refer to Figure 9.17: Rear Case view 4 of 7, p. 403.
See MIN 3303848-002 in table for part information.
Power PCB (p. 445)
J15-A
J15-B
J15-A
J15-B
