Transmit Error Counters
Object Description
• Tx Drops
The number of frames dropped due to output buffer congestion.
• Tx Late/Exc. Coll.
The number of frames dropped due to excessive or late collisions.
Buttons
: Click to refresh the Page immediately.
: Clears the counters for all ports.
Auto-refresh : Check this box to enable an automatic refresh of the Page at regular intervals.
4.4.4 SFP Information
You can check the physical or operational status of an SFP module via the SFP Module Information Page. This Page shows the
operational status, such as the transceiver type, speed, and wavelength and supports distance of SFP module on a specific
interface. You can also use the hyperlink of port no. to check the statistics on a speficic interface. The SFP Module Information
screen in Figure 4-4-4 appears.

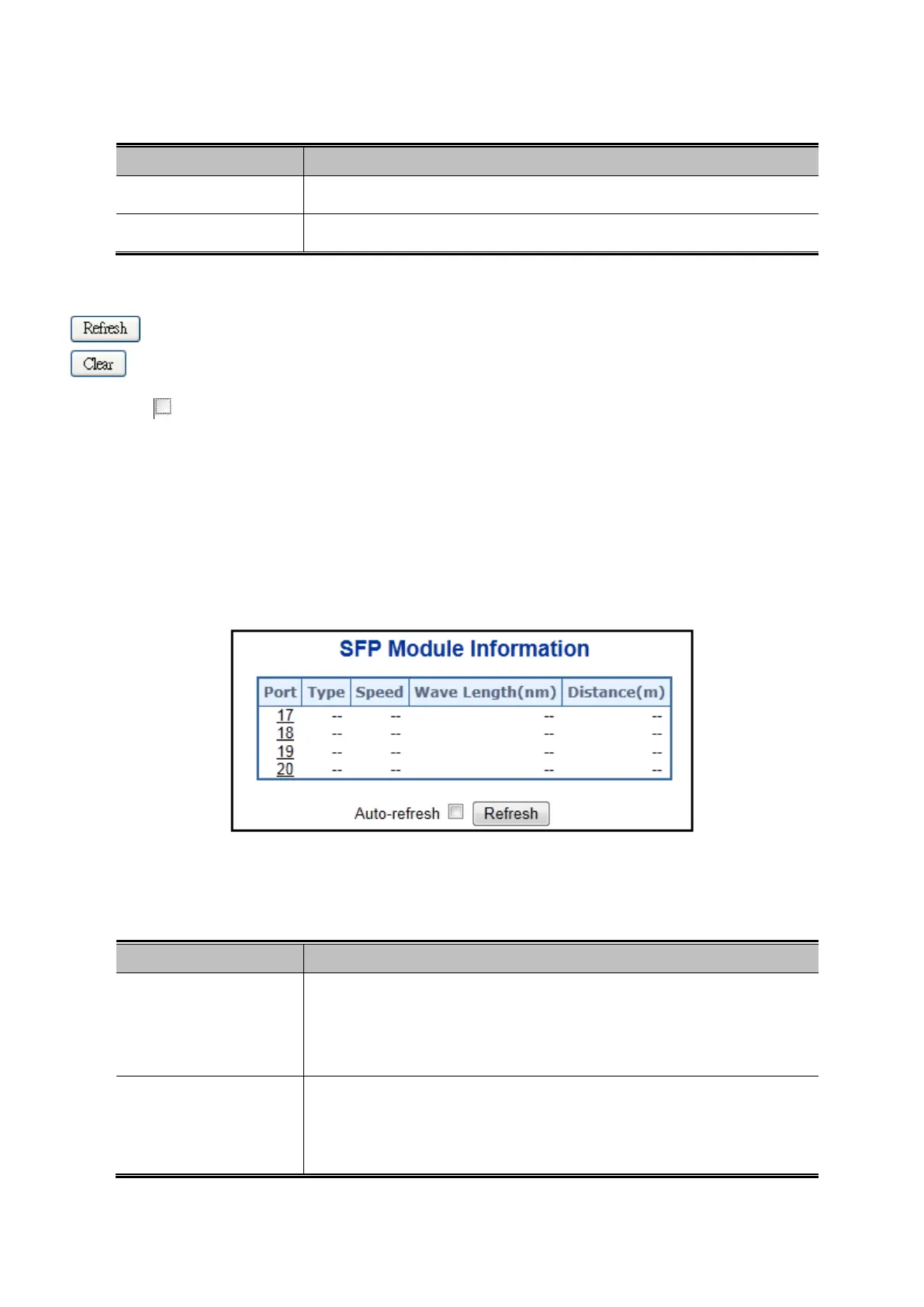

Figure 4-4-4: SFP Module Information for Switch Page Screenshot
The Page includes the following fields:
Object Description
• Type
Display the type of current SFP module, the possible types are:
1000Base-SX
1000Base-LX
• Speed
Display the spedd of current SFP module, the speed value or description is get
from the SFP module. Different vendors SFP modules might shows different
speed information.
