: Click to refresh the Page immediately.
: Clears the counters for all ports.
Auto-refresh : Check this box to enable an automatic refresh of the Page at regular intervals.
4.4.3 Port Statistics Detail
This Page provides detailed traffic statistics for a specific switch port. Use the port select box to select which switch port details
to display. The selected port belong to the currently selected stack unit, as reflected by the Page header. The displayed counters
are the totals for receive and transmit, the size counters for receive and transmit, and the error counters for receive and transmit.
The Port Statistics Detail screen in Figure 4-4-3 appears.

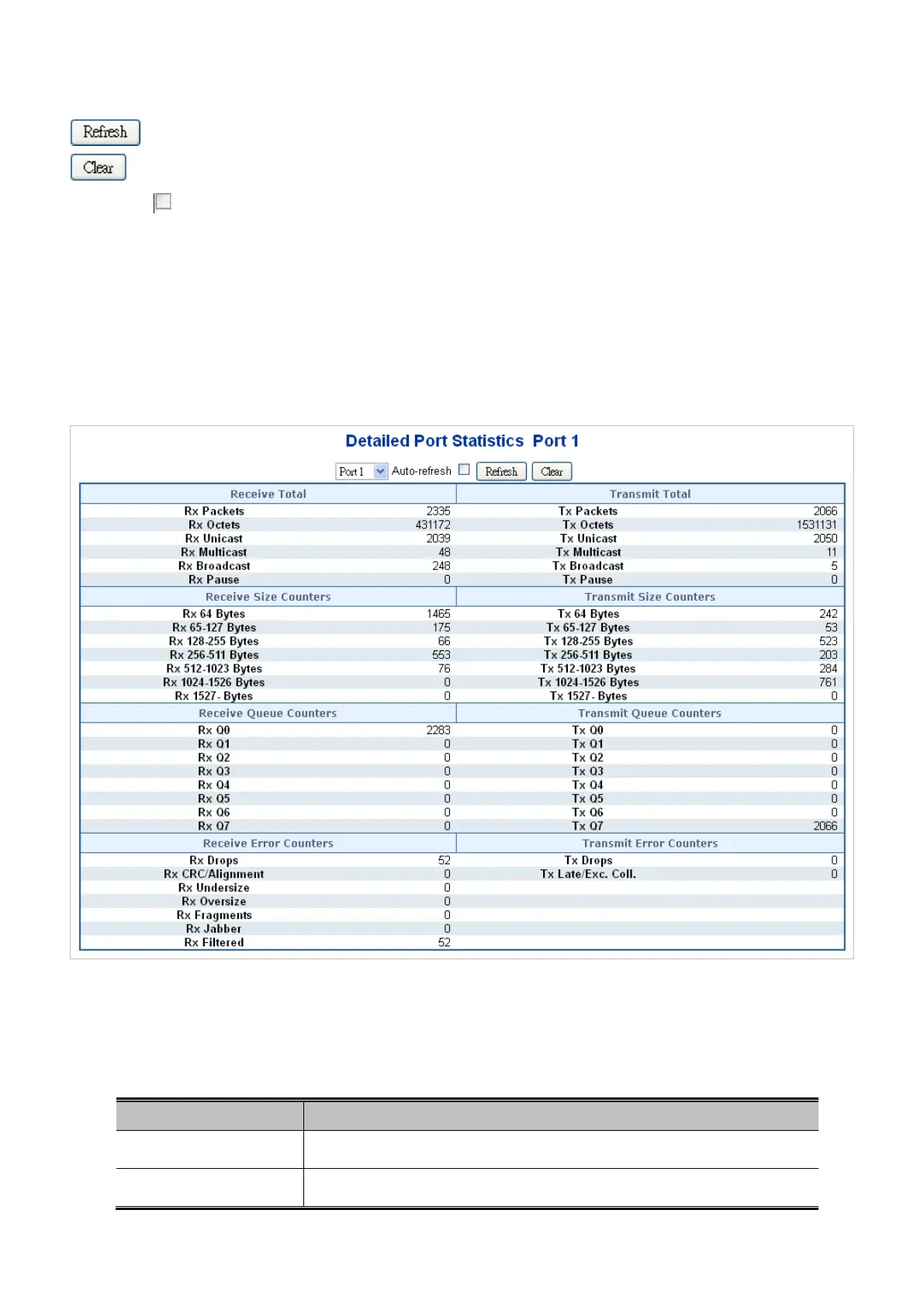

Figure 4-4-3: Detailed Port Statistics Port 1 Page Screenshot
The Page includes the following fields:
Receive Total and Transmit Total
Object Description
• Rx and Tx Packets
The number of received and transmitted (good and bad) packets
• Rx and Tx Octets
The number of received and transmitted (good and bad) bytes. Includes FCS, but
To Next Page
