User’s Manual of WGSW-20160HP/WGSW-24040HP series
4.2.10 CPU Load
This Page displays the CPU load, using a SVG graph.
The load is measured as average over the last 100ms, 1sec and 10 seconds intervals. The last 120 samles are graphed, and
the last numbers are displayed as text as well.
In order to display the SVG graph, your browser must support the SVG format. Consult the SVG Wiki for more information on
browser support. Specifically, at the time of writing, Microsoft Internet Explorer will need to have a plugin installed to support
SVG. The CPU Load screen in Figure 4-2-13 appears.

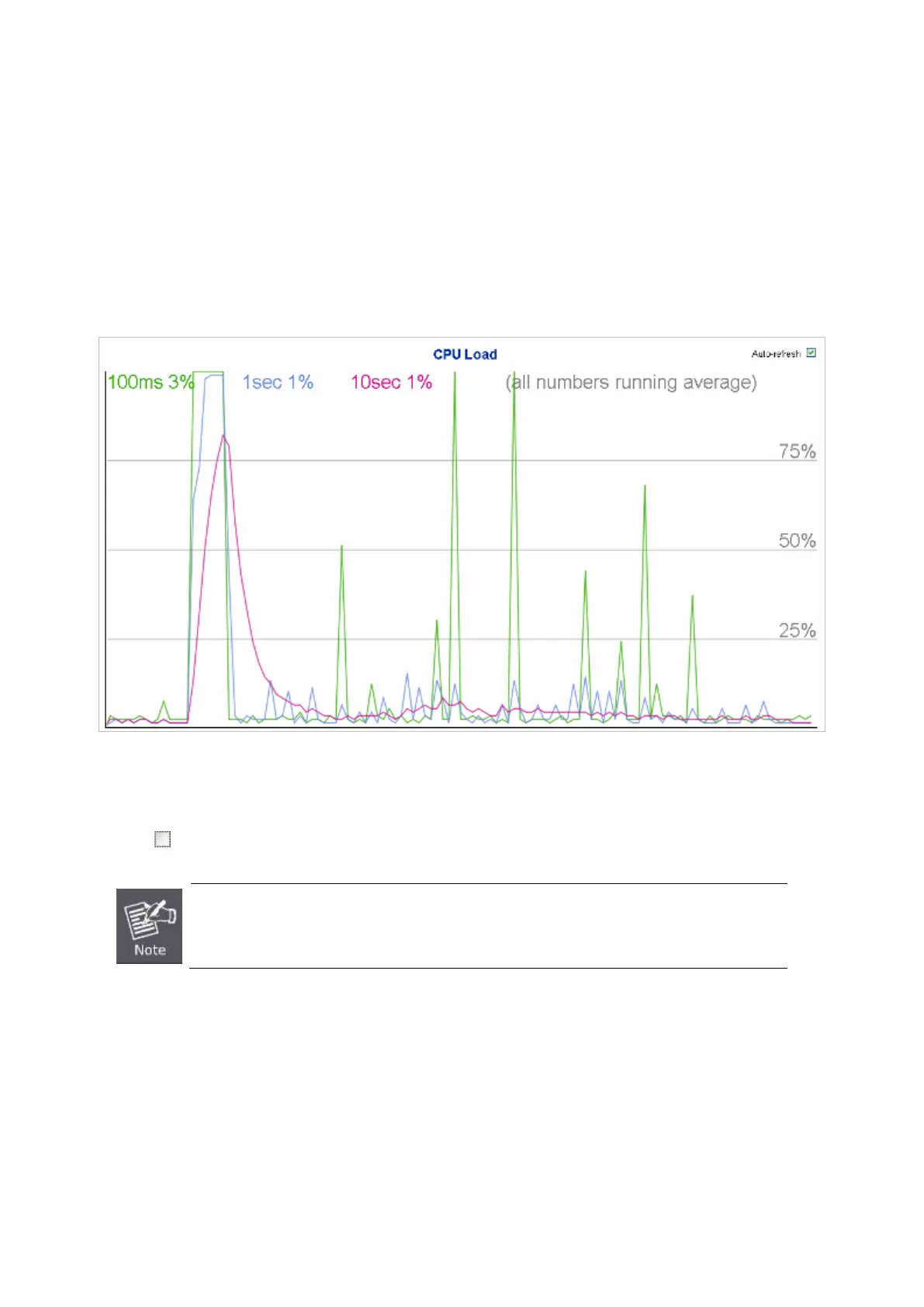

Figure 4-2-13: CPU Load Page Screenshot
Buttons
Auto-refresh : Check this box to refresh the Page automatically. Automatic refresh occurs every 3 seconds.
If your browser cannot display anything on this Page
, please download Adobe SVG tool and
install it in your computer.
