User’s Manual of WGSW-20160HP/WGSW-24040HP series
4.2.19 Image Select
This Page provides information about the active and alternate (backup) firmware images in the device, and allows you to revert
to the alternate image. The web Page displays two tables with information about the active and alternate firmware images. The
Image Select screen in Figure 4-2-26 appears.
1.
In case the active firmware image is the alternate image, only the "Active Image" table is shown.
In this case, the Activate Alternate Image button is also disabled.
2. If the alternate image is active (due to a corruption of the primary image or by manual
intervention), uploading a new firmware image to the device will automatically use the primary
image slot and activate this.
3. The firmware version and date information may be empty for older firmware releases. This does
not constitute an error.

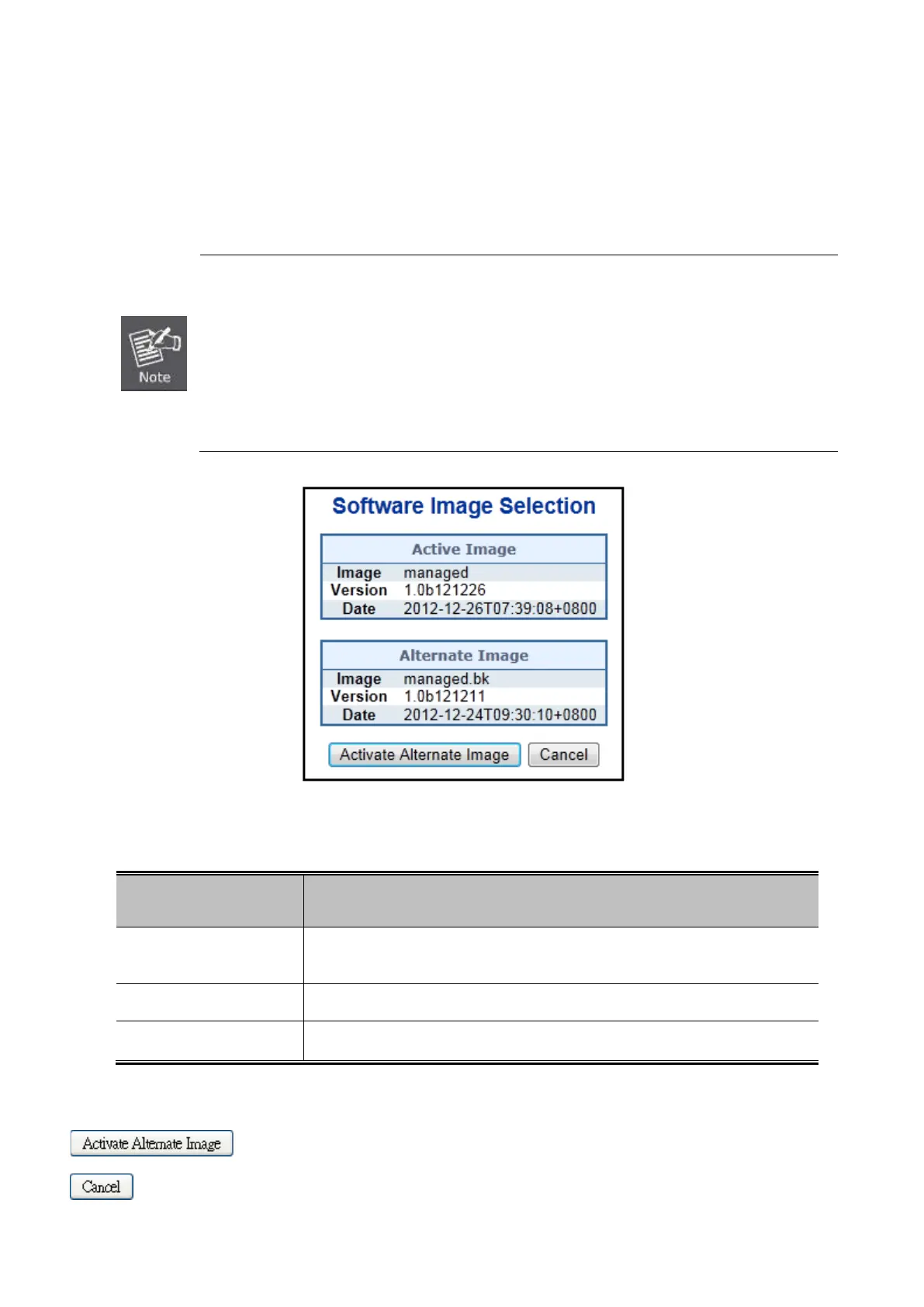

Figure 4-2-26: Software Image Selection Page Screenshot
The Page includes the following fields:
Object Description
• Image
The flash index name of the firmware image. The name of primary (preferred)
image is image, the alternate image is named image.bk.
• Version
The version of the firmware image.
• Date
The date where the firmware was produced.
Buttons
: Click to use the alternate image. This button may be disabled depending on system state.
: Cancel activating the backup image. Navigates away from this Page.
