4.9.14 QoS Statistics
This Page provides statistics for the different queues for all switch ports. The QoS Statistics screen in Figure 4-9-16 appears.

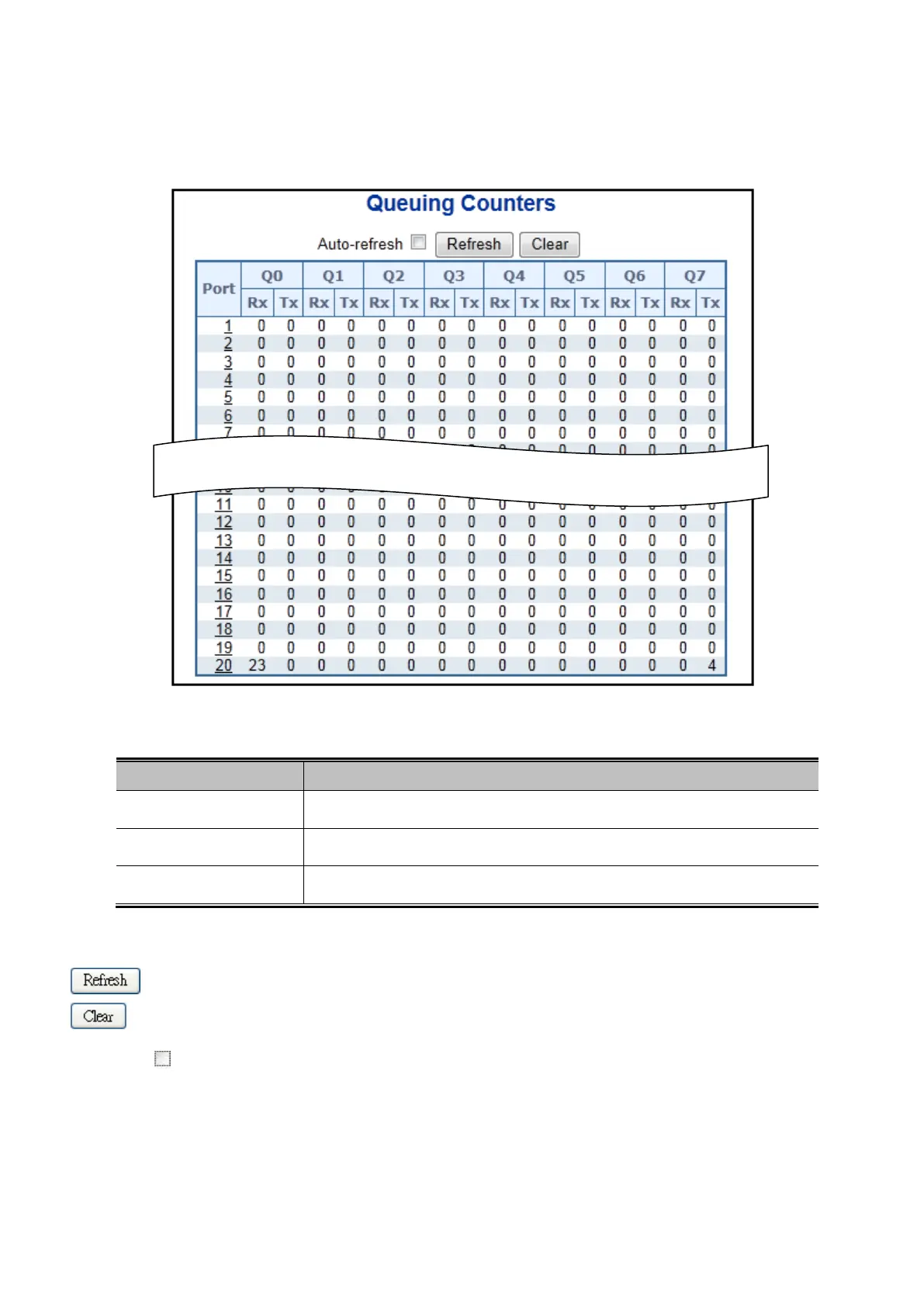

Figure 4-9-16: Queuing Counters Page Screenshot
The Page includes the following fields:
Object Description
• Port
The logical port for the settings contained in the same row.
• Q0 ~ Q7
There are 8 QoS queues per port. Q0 is the lowest priority queue.
• Rx/Tx
The number of received and transmitted packets per queue.
Buttons
: Click to refresh the Page immediately.
: Clears the counters for all ports.
Auto-refresh
: Check this box to enable an automatic refresh of the Page at regular intervals.
