User’s Manual of WGSW-20160HP/WGSW-24040HP series

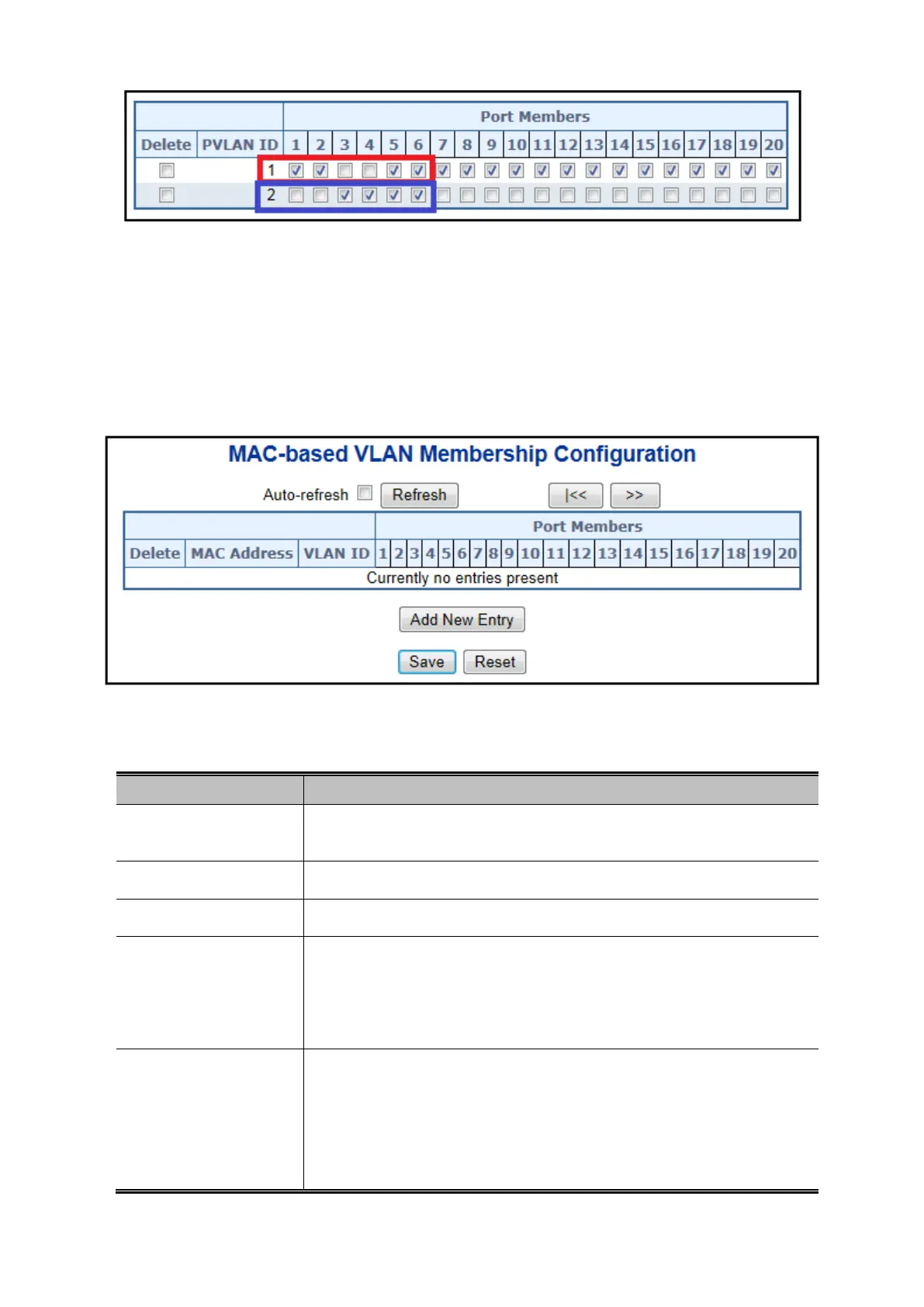

Figure 4-6-16: Private VLAN Port Setting
4.6.11 MAC-based VLAN
The MAC-based VLAN enties can be configured here. This Page allows for adding and deleting MAC-based VLAN entries and
assigning the entries to different ports. This Page shows only static entries. The MAC-based VLAN screen in Figure 4-6-17
appears.
Figure 4-6-17: MAC-based VLAN Membership Configuration Page Screenshot
The Page includes the following fields:
Object Description
• Delete
To delete a MAC-based VLAN entry, check this box and press save. The entry
will be deleted in the stack.
• MAC Address
Indicates the MAC address.
• VLAN ID
Indicates the VLAN ID.
• Port Members
A row of check boxes for each port is displayed for each MAC-based VLAN entry.
To include a port in a MAC-based VLAN, check the box. To remove or exclude
the port from the MAC-based VLAN, make sure the box is unchecked. By default,
no ports are members, and all boxes are unchecked.
• Adding a New
MAC-based VLAN
Click “Add New Entry” to add a new MAC-based VLAN entry. An empty row is
added to the table, and the MAC-based VLAN entry can be configured as
needed. Any unicast MAC address can be configured for the MAC-based VLAN
entry. No broadcast or multicast MAC addresses are allowed. Legal values for a
VLAN ID are 1 through 4095.
