User’s Manual of WGSW-20160HP/WGSW-24040HP series
• V3 Reports Received
The number of Received V3 Reports.
• V2 Leave Received
The number of Received V2 Leave.
• Router Port
Display which ports act as router ports. A router port is a port on the Ethernet
switch that leads towards the Layer 3 multicast device or IGMP querier.
Static denotes the specific port is configured to be a router port.
Dynamic denotes the specific port is learnt to be a router port.
Both denote the specific port is configured or learnt to be a router port.
• Port
Switch port number.
• Status
Indicate whether specific port is a router port or not.
Buttons
: Click to refresh the Page immediately.
: Clears all Statistics counters.
Auto-refresh
: Automatic refresh occurs every 3 seconds.
4.8.6 IGMP Group Information
Entries in the IGMP Group Table are shown on this Page. The IGMP Group Table is sorted first by VLAN ID, and then by group.
Each Page shows up to 99 entries from the IGMP Group table, default being 20, selected through the "entries per Page" input
field. When first visited, the web Page will show the first 20 entries from the beginning of the IGMP Group Table.
The "Start from VLAN", and "group" input fields allow the user to select the starting point in the IGMP Group Table.
The IGMP Groups Informatino screen in Figure 4-8-9 appears.

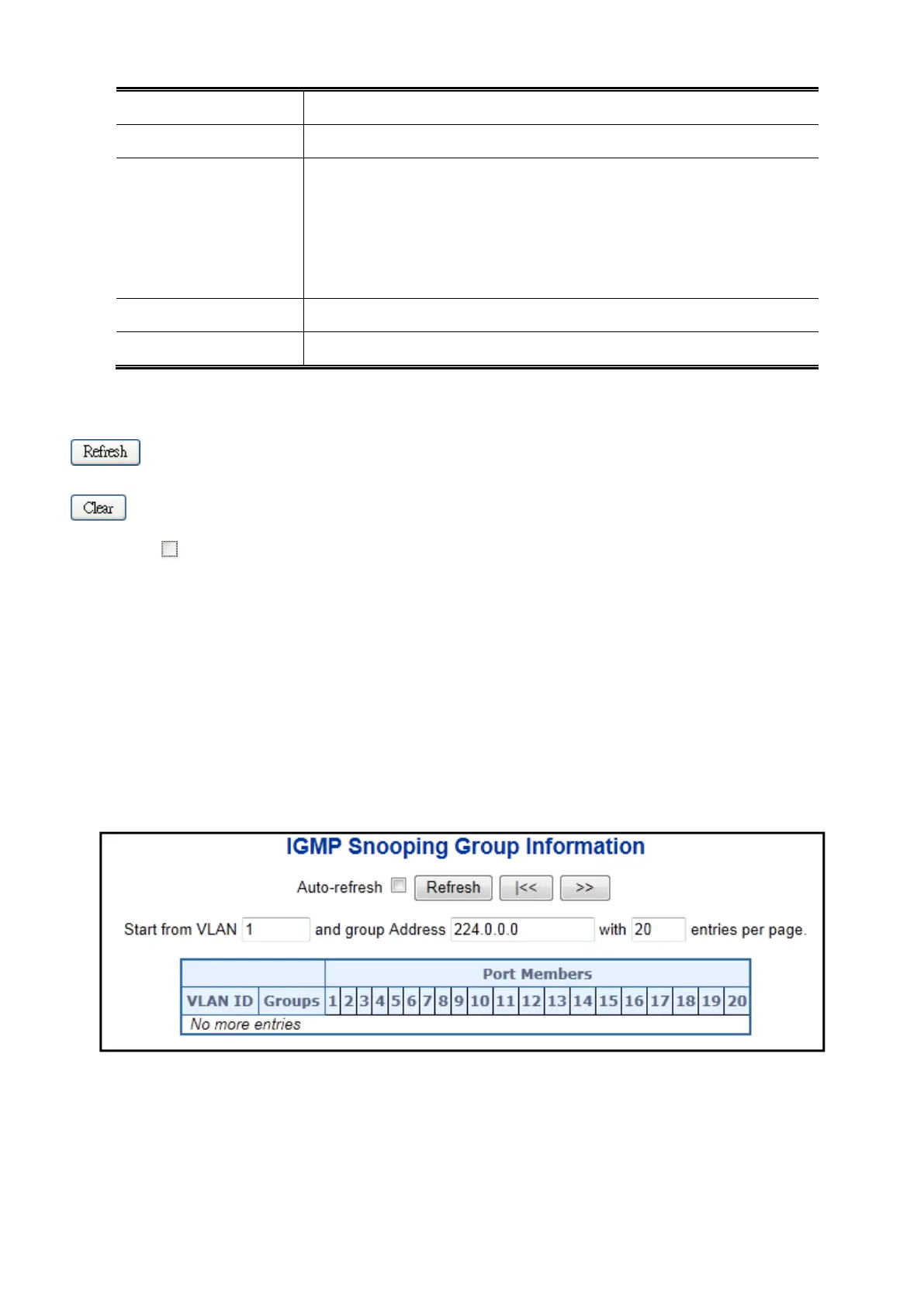

Figure 4-8-9: IGMP Snooping Groups Information Page Screenshot
