User’s Manual of WGSW-20160HP/WGSW-24040HP series
4.16.4 PoE Status
This page allows the user to inspect the total power consumption, total power reserved and current status for all PoE ports. The
screen in Figure 4-16-4 appears.

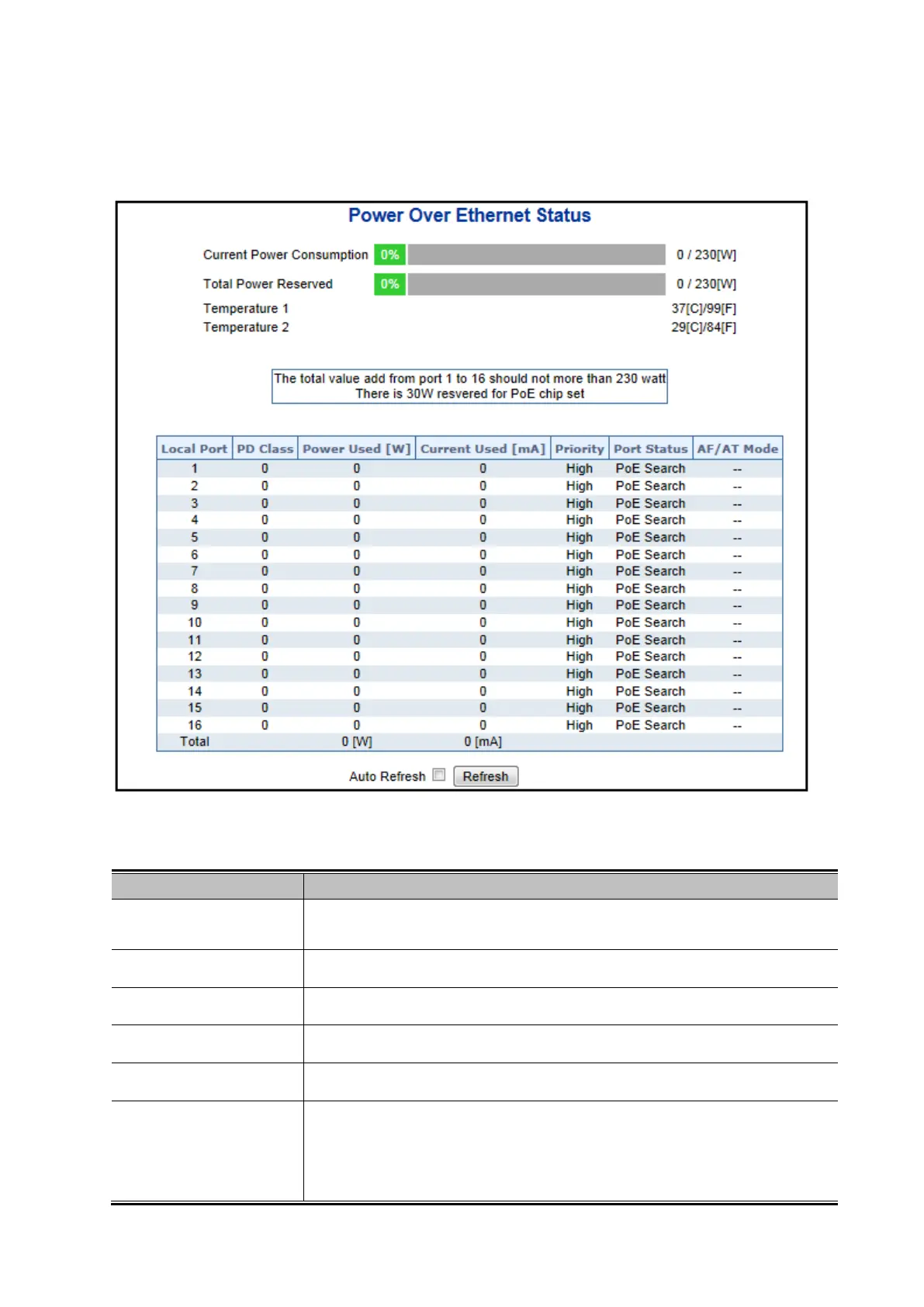

Figure 4-16-4:PoE Status Screenshot
The page includes the following fields:
Object Description
• Current Power
Consumption
Show the total watts usage of Managed PoE Switch.
• Total Power Reserved
Shows how much the total power be reserved for all PDs.
• Temperature 1
Display the current operating temperature of first PoE chip unit.
• Temperature 2
Display the current operating temperature of second PoE chip unit.
• Local Port
This is the logical port number for this row.
• PD Class
Display the class of the PD attached to the port, as established by the classification
process. Class 0 is the default for PDs. The PD is powered based on PoE Class
level if system working on Classification mode. A PD shall return Class 0 to 4 in
accordance with the maximum power draw as specified by Table 4-16-1.
