User’s Manual of WGSW-20160HP/WGSW-24040HP series
Configure IP Address
The Managed Switch is shipped with default IP address as following.
IP Address: 192.168.0.100
Subnet Mask: 255.255.255.0
To check the current IP address or modify a new IP address for the Managed Switch, please use the procedures as follow:
Show the current IP address
1. On ”WGSW-20160HP:/> ” prompt, enter “show ip”.
2. The screen displays the current IP address, Subnet Mask and Gateway. As show in Figure 5-2.

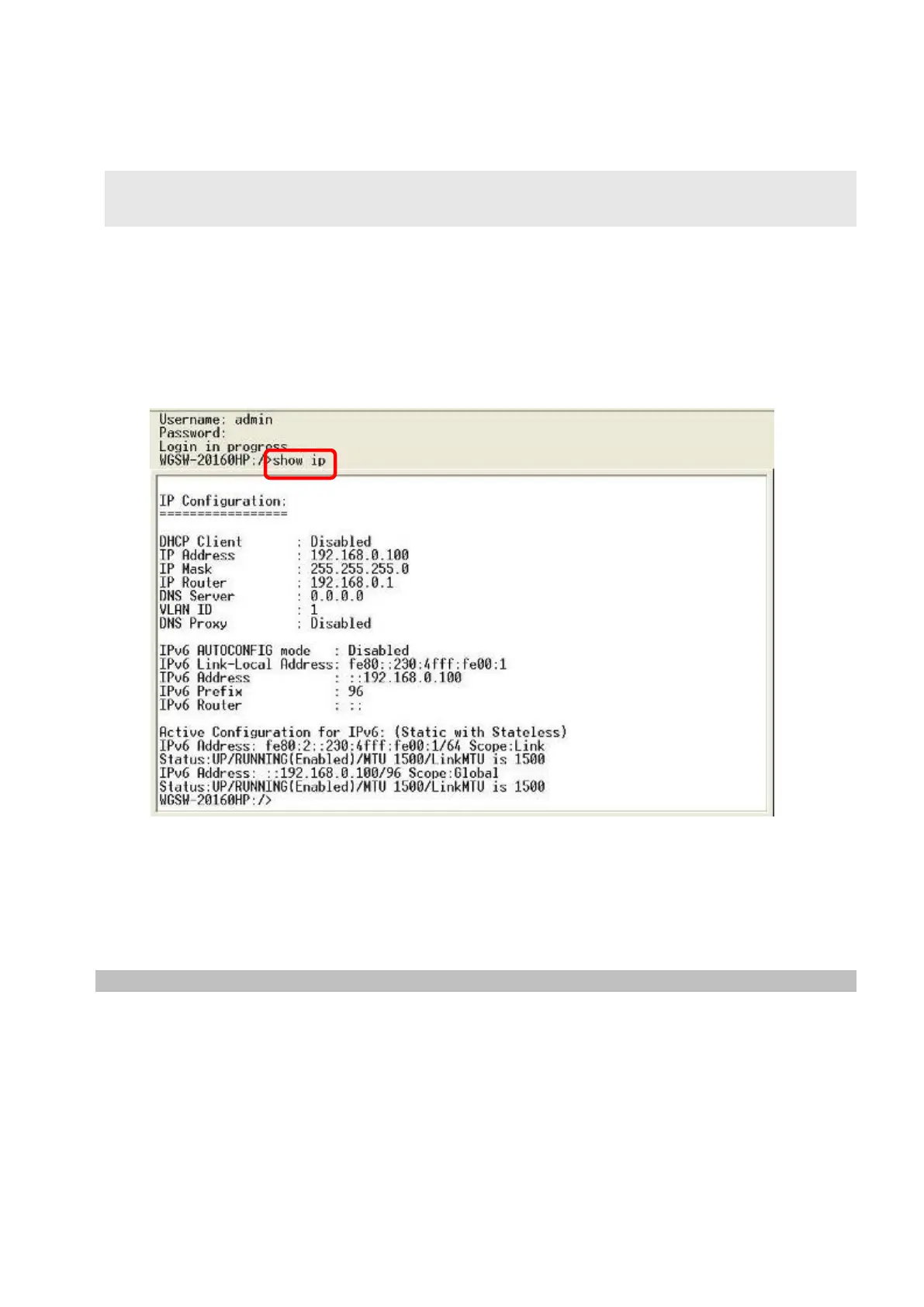

Figure 5-2: Show IP Information Screen
Configure IP address
3. On ”WGSW-20160HP:/> ” prompt, enter the following command and press <Enter>. As show in Figure 5-3.
WGSW-20160HP:/IP> setup 192.168.1.100 255.255.255.0 192.168.1.1
The previous command would apply the follow settings for the Managed Switch.
IP Address: 192.168.1.100
Subnet Mask: 255.255.255.0
Gateway: 192.168.1.1
