User’s Manual of WGSW-20160HP/WGSW-24040HP series
4.9.10 DSCP Classification
This Page allows you to map DSCP value to a QoS Class and DPL value. The DSCP Classification screen in Figure 4-9-11
appears.

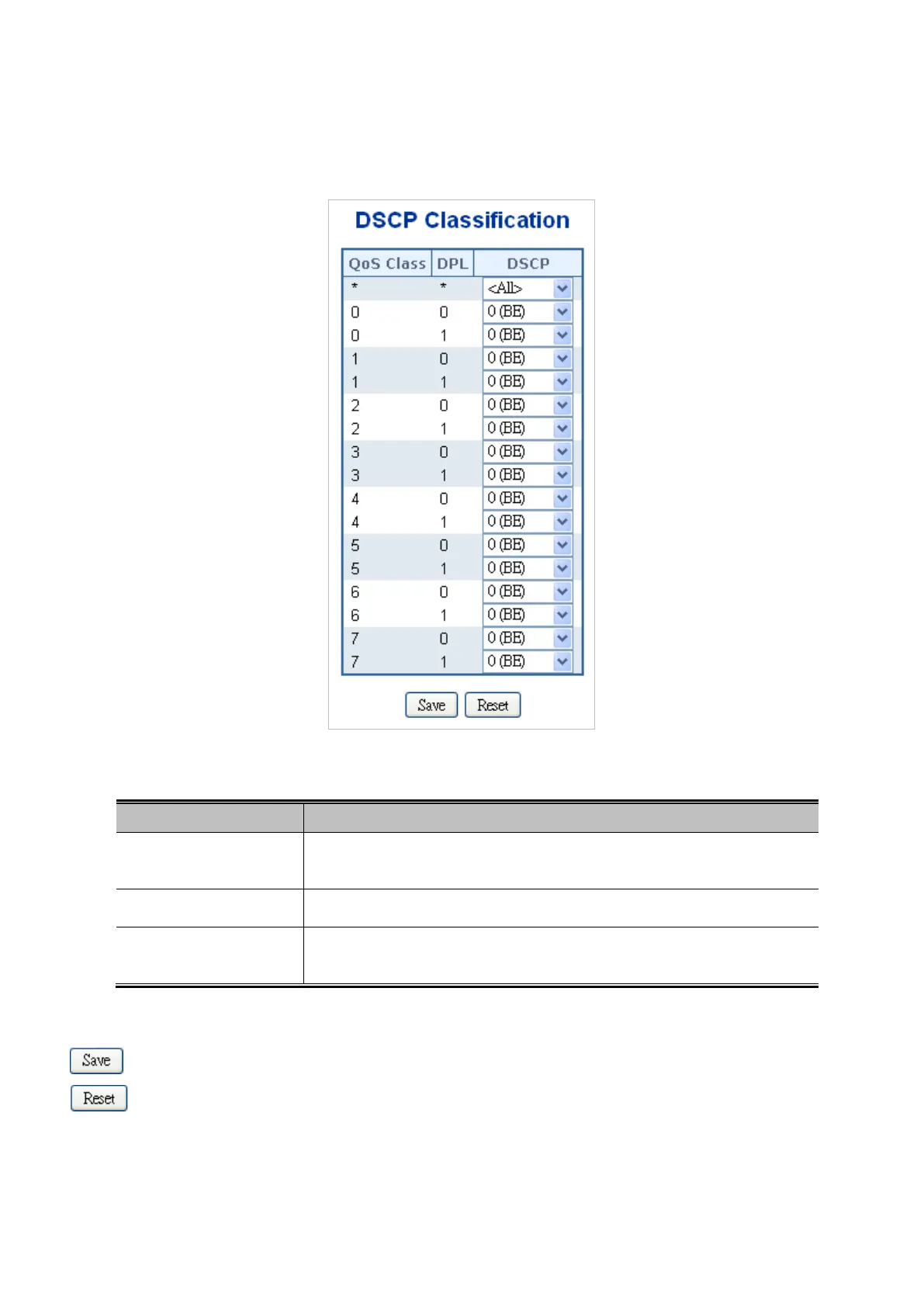

Figure 4-9-11: DSCP Classification Page Screenshot
The Page includes the following fields:
Object Description
• QoS Class
Available QoS Class value ranges from 0 to 7. QoS Class (0-7) can be mapped
to followed parameters.
• DPL
Actual Drop Precedence Level.
• DSCP
Select DSCP value (0-63) from DSCP menu to map DSCP to corresponding QoS
Class and DPL value
Buttons
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
To Next Page
