User’s Manual of WGSW-20160HP/WGSW-24040HP series
4.16.6 LLDP PoE Neighbours
This page provides a status overview for all LLDP PoE neighbors. The displayed table contains a row for each port on which an
LLDP PoE neighbor is detected. The columns hold the following information: The screen in Figure 4-16-6 appears.

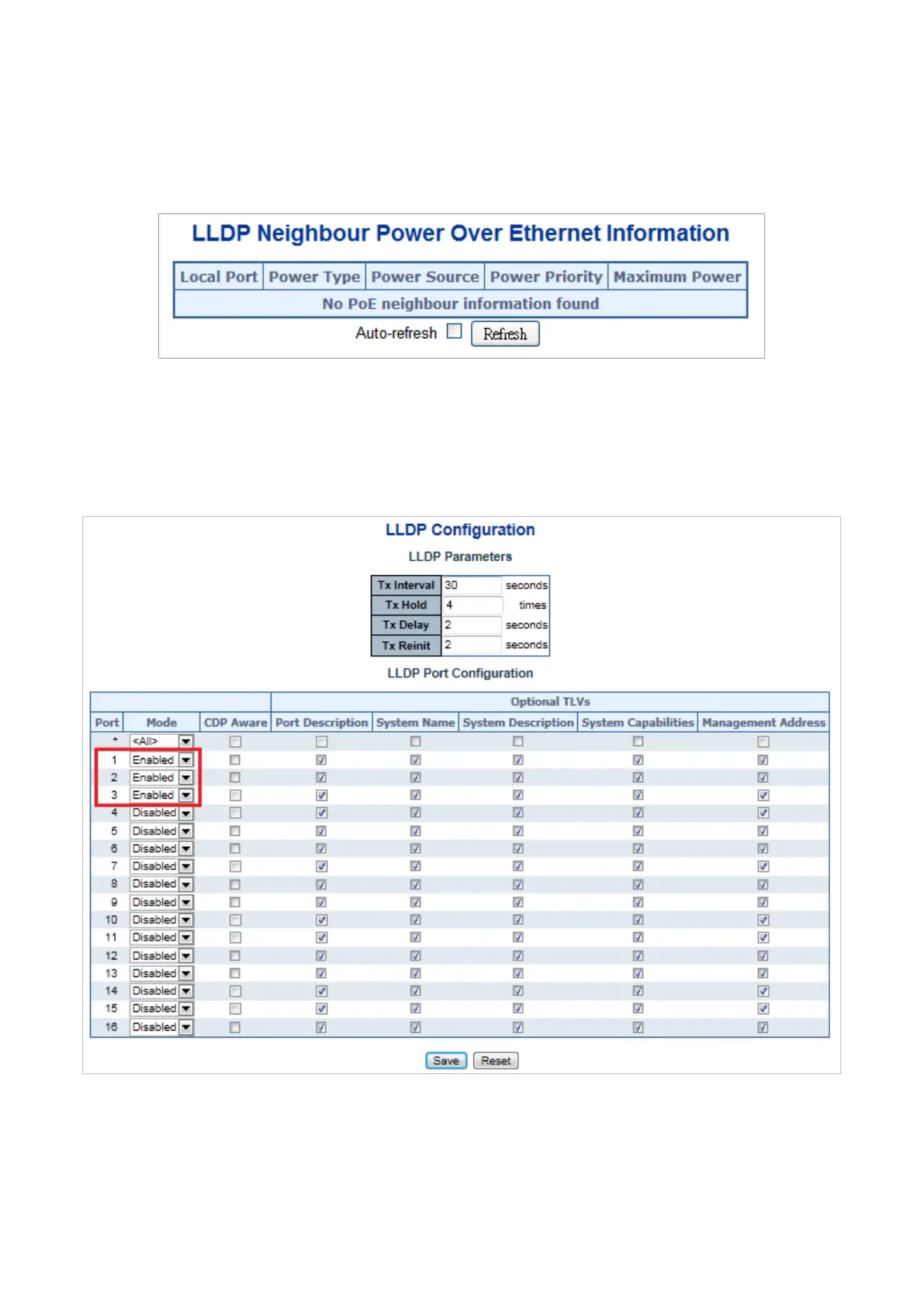

Figure 4-16-6: LLDP PoE Neighbour Screenshot
Please be noticed that administrator has to enable LLDP port from LLDP configuration, please refer to following example (The
screen in Figure 4-16-7 appears.) we enabled LLDP function from port1 ro port3, administrator has to plug a PD that supported
PoE LLDP function, and then administrator is going to see the PoE information of the PD form LLDP.
Figure 4-16-7: LLDP Configuration Screenshot
