User’s Manual of WGSW-20160HP/WGSW-24040HP series
The Page includes the following fields:
Object Description
• Port
The logical port for the settings contained in the same row.
Click on the port number in order to configure tag remarking.
For more detail, please refer to chapter 4.9.6.1.
• Mode
Shows the tag remarking mode for this port.
Classified: Use classified PCP/DEI values.
Default: Use default PCP/DEI values.
Mapped: Use mapped versions of QoS class and DP level.
4.9.6.1 QoS Egress Port Tag Remarking
The QoS Egress Port Tag Remarking for a specific port are configured on this Page. The QoS Egress Port Tag Remarking
sscreen in Figure 4-9-7 appears.

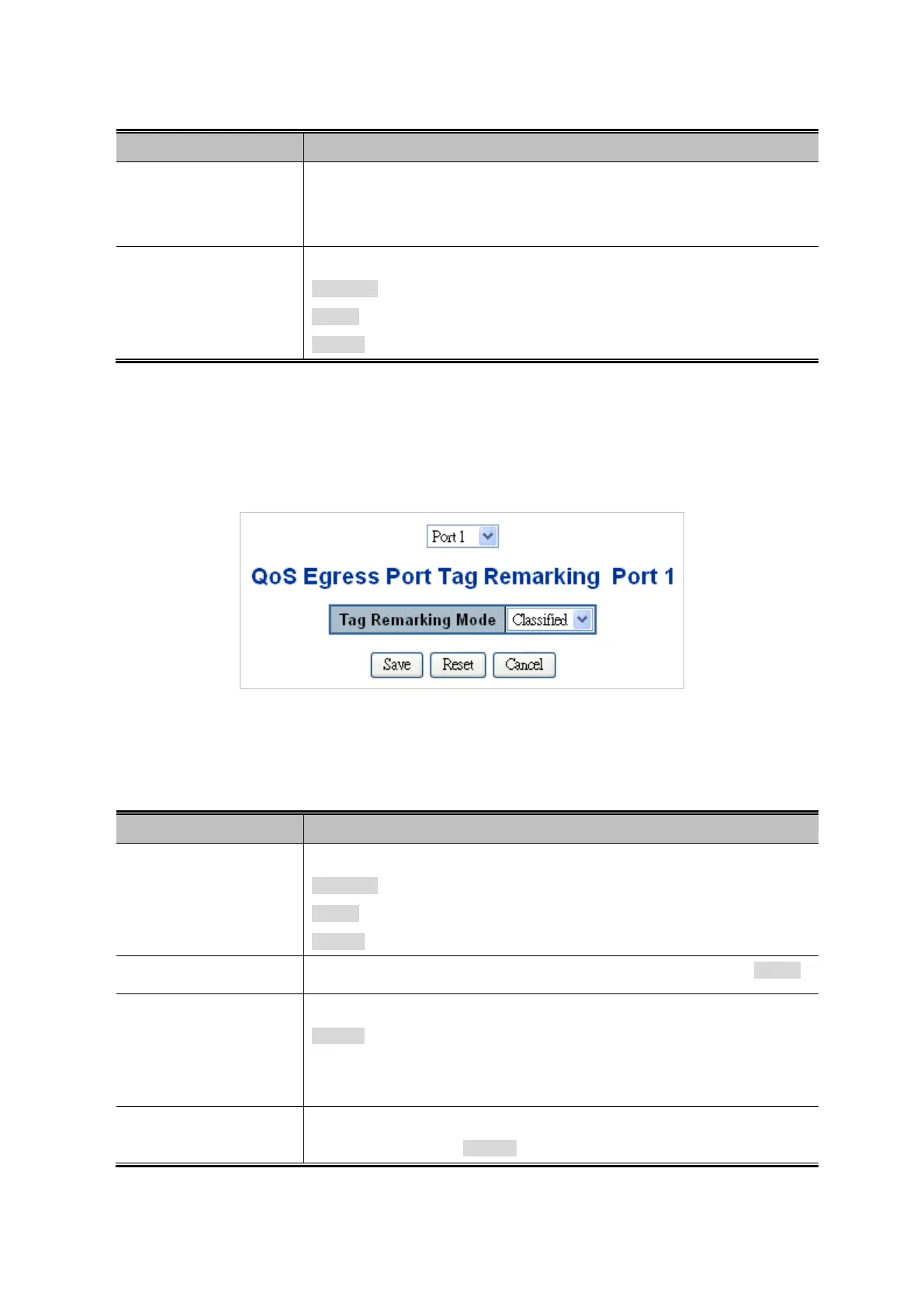

Figure 4-9-7: QoS Egress Port Tag Remarking Page Screenshot
The Page includes the following fields:
Object Description
• Mode
Controls the tag remarking mode for this port.
Classified: Use classified PCP/DEI values.
Default: Use default PCP/DEI values.
Mapped: Use mapped versions of QoS class and DP level.
• PCP/DEI Configuration
Controls the default PCP and DEI values used when the mode is set to Default.
• DP level Configuration
Controls the Drop Precedence level translation table when the mode is set to
Mapped.
The purpose of this table is to reduce the 2 bit classified DP level to a 1 bit DP
level used in the (QoS class, DP level) to (PCP, DEI) mapping process.
• (QoS class, DP level)
to (PCP, DEI) Mapping
Controls the mapping of the classified (QoS class, DP level) to (PCP, DEI) values
when the mode is set to Mapped.
