User’s Manual of WGSW-20160HP/WGSW-24040HP series
Buttons
: Click to add new MVR VLAN. Specify the VID and configure the new entry. Click "Save"
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
4.8.15 MVR Status
This Page provides MVR status. The MVR Status screen in Figure 4-8-18 appears.

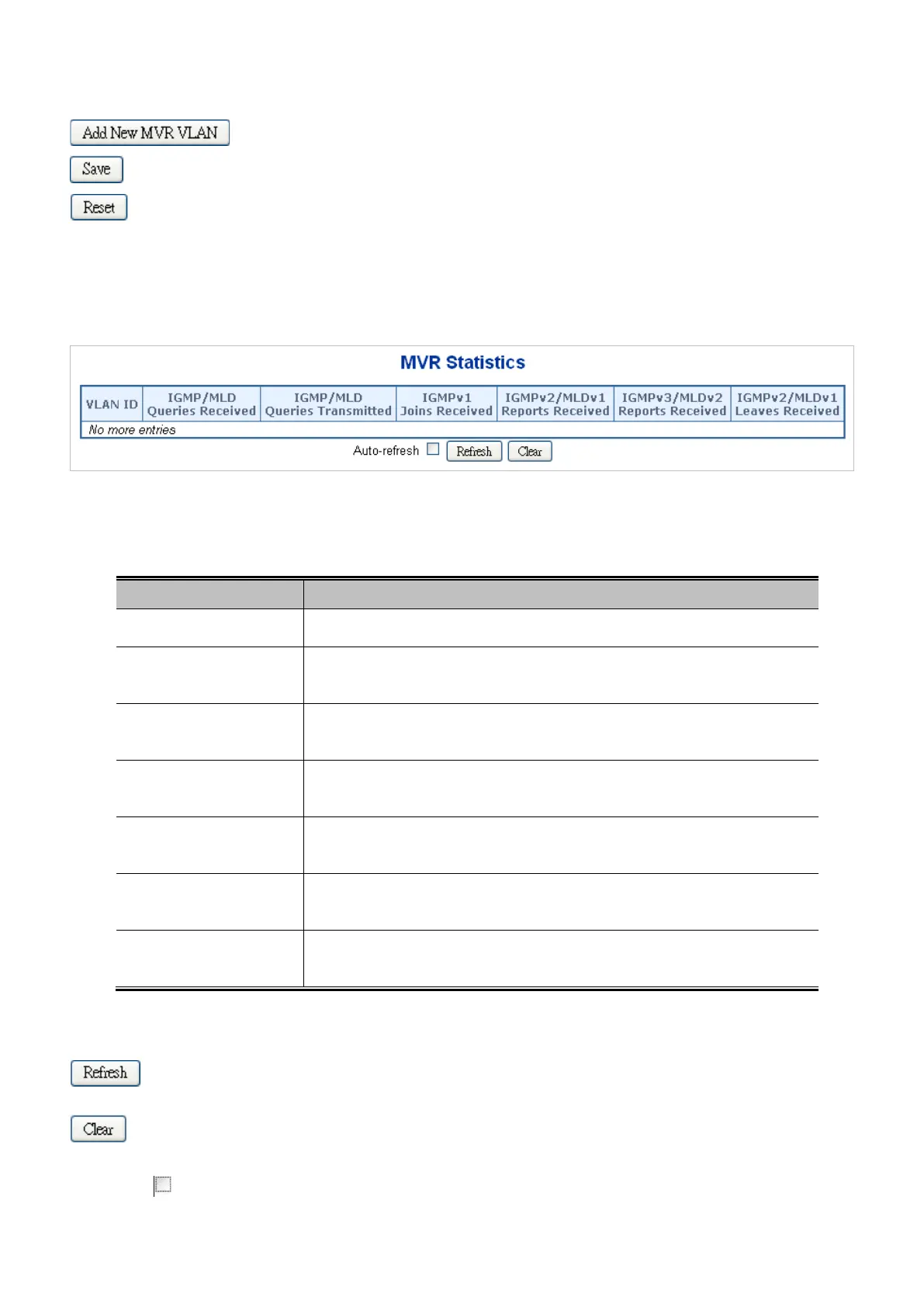

Figure 4-8-18: MVR Status Page Screenshot
The Page includes the following fields:
Object Description
• VLAN ID
The Multicast VLAN ID.
• IGMP/MLD Queries
Received
The number of Received Queries for IGMP and MLD, respectively.
• IGMP/MLD Queries
Transmitted
The number of Transmitted Queries for IGMP and MLD, respectively.
• IGMPv1 Joins
Received
The number of Received IGMPv1 Joins.
• IGMPv2/MLDv1
Reports Received
The number of Received IGMPv2 Joins and MLDv1 Reports, respectively.
• IGMPv3/MLDv2
Reports Received
The number of Received IGMPv1 Joins and MLDv2 Reports, respectively.
• IGMPv2/MLDv1 Leaves
Received
The number of Received IGMPv2 Leaves and MLDv1 Dones, respectively.
Buttons
: Click to refresh the Page immediately.
: Clears all Statistics counters.
Auto-refresh : Automatic refresh occurs every 3 seconds.
