User’s Manual of WGSW-20160HP/WGSW-24040HP series
4.4 Port Management
Use the Port Menu to display or configure the Managed Switch's ports. This section has the following items:
Port Configuration Configures port connection settings
Port Statistics Overview Lists Ethernet and RMON port statistics
Port Statistics Detail Lists Ethernet and RMON port statistics
SFP Module Information Display SFP information
Port Mirror Sets the source and target ports for mirroring
4.4.1 Port Configuration
This Page displays current port configurations. Ports can also be configured here. The Port Configuration screen in Figure 4-4-1
appears.

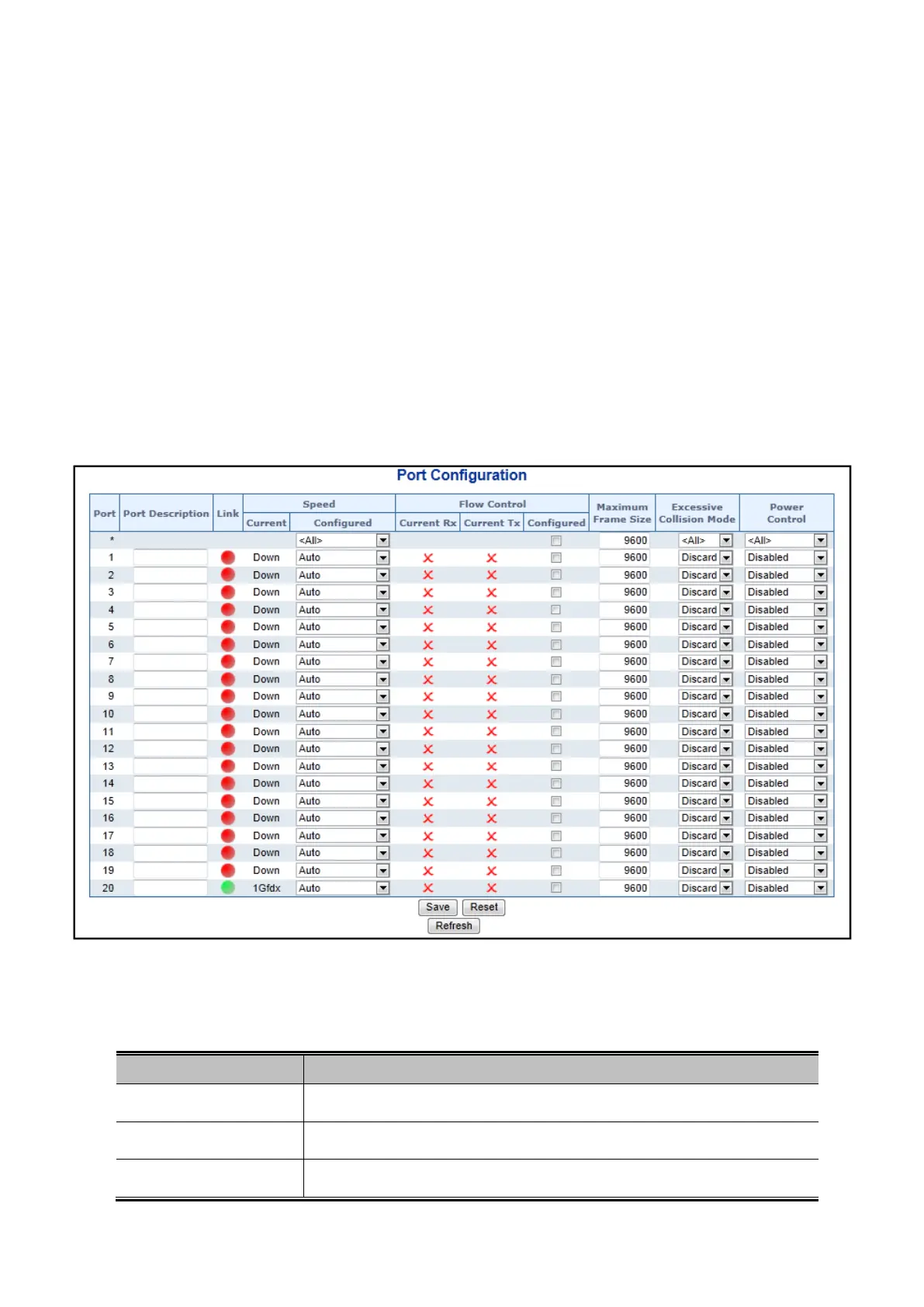

Figure 4-4-1: Port Configuration Page Screenshot
The Page includes the following fields:
Object Description
• Port
This is the logical port number for this row.
• Port Description
Indicates the per port description.
• Link
The current link state is displayed graphically. Green indicates the link is up and
