User’s Manual of WGSW-20160HP/WGSW-24040HP series
138
The MAC-based VLAN entry is enabled when you click on "Save". A MAC-based
VLAN without any port members will be deleted when you click "Save".
The “Delete” button can be used to undo the addition of new MAC-based VLANs.
Buttons
: Click to add a new MAC-based VLAN entry.
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
Auto-refresh
: Check this box to refresh the Page automatically. Automatic refresh occurs every 3 seconds.
: Click to refresh the Page immediately.
: Updates the table starting from the first entry in the MAC-based VLAN Table.
: Updates the table, starting with the entry after the last entry currently displayed.

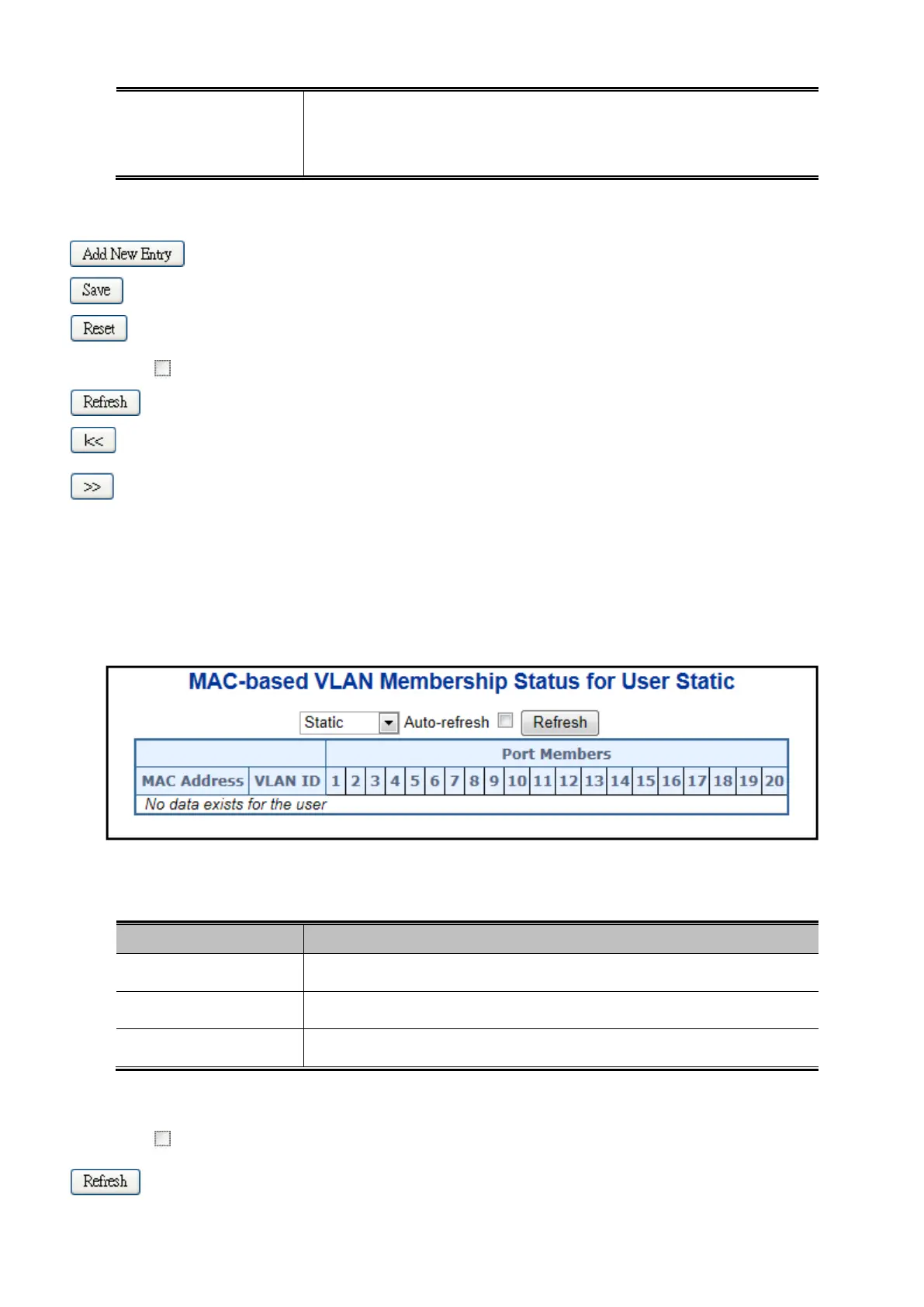

4.6.12 MAC-based VLAN Status
This Page shows MAC-based VLAN entries configured by various MAC-based VLAN users. The MAC-based VLAN Status
screen in Figure 4-6-18 appears.
Figure 4-6-18: MAC-based VLAN Membership Configuration for User Static Page Screenshot
The Page includes the following fields:
Object Description
• MAC Address
Indicates the MAC address.
• VLAN ID
Indicates the VLAN ID.
• Port Members
Port members of the MAC-based VLAN entry.
Buttons
Auto-refresh : Check this box to refresh the Page automatically. Automatic refresh occurs every 3 seconds.
: Click to refresh the Page immediately.
