User’s Manual of WGSW-20160HP/WGSW-24040HP series
Please note that conflict can be resolved by releasing the H/W resources
required to add QCL entry on pressing 'Resolve Conflict' button.
Buttons
: Select the QCL status from this drop down list.
Auto-refresh
: Check this box to refresh the Page automatically. Automatic refresh occurs every 3 seconds.
: Click to release the resources required to add QCL entry, in case the conflict status for any QCL entry is
'yes'.
: Click to refresh the Page.
4.9.13 Storm Control Configuration
Storm control for the switch is configured on this Page.
There is a unicast storm rate control, multicast storm rate control, and a broadcast storm rate control. These only affect flooded
frames, i.e. frames with a (VLAN ID, DMAC) pair not present on the MAC Address table.
The configuration indicates the permitted packet rate for unicast, multicast or broadcast traffic across the switch.

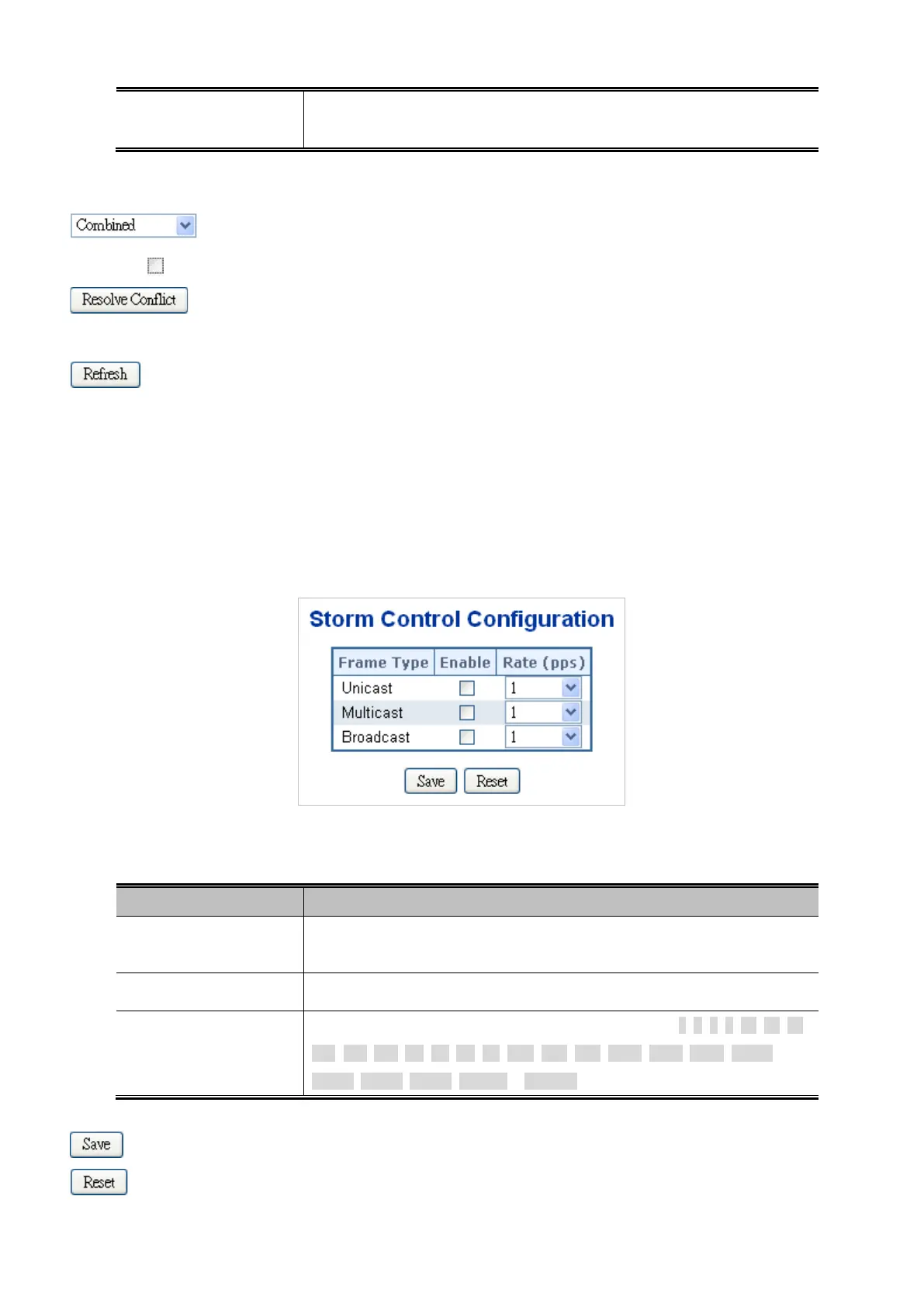

The Storm Control Configuration screen in Figure 4-9-15 appears.
Figure 4-9-15: Storm Control Configuration Page Screenshot
The Page includes the following fields:
Object Description
• Frame Type
The settings in a particular row apply to the frame type listed here: Unicast,
Multicast or Broadcast.
• Enable
Enable or disable the storm control status for the given frame type.
• Rate
The rate unit is packets per second (pps). Valid values are: 1, 2, 4, 8, 16, 32, 64,
128, 256, 512, 1K, 2K, 4K, 8K, 16K, 32K, 64K, 128K, 256K, 512K, 1024K,
2048K, 4096K, 8192K, 16384K or 32768K.
Buttons
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
