User’s Manual of WGSW-20160HP/WGSW-24040HP series
Buttons
: Click to add a new entry in mapping table.
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
Auto-refresh
: Check this box to refresh the Page automatically. Automatic refresh occurs every 3 seconds.
: Click to refresh the Page immediately.
4.6.14 Protocol-based VLAN
This Page allows you to add new protocols to Group Name (unique for each Group) mapping entries as well as allow you to see

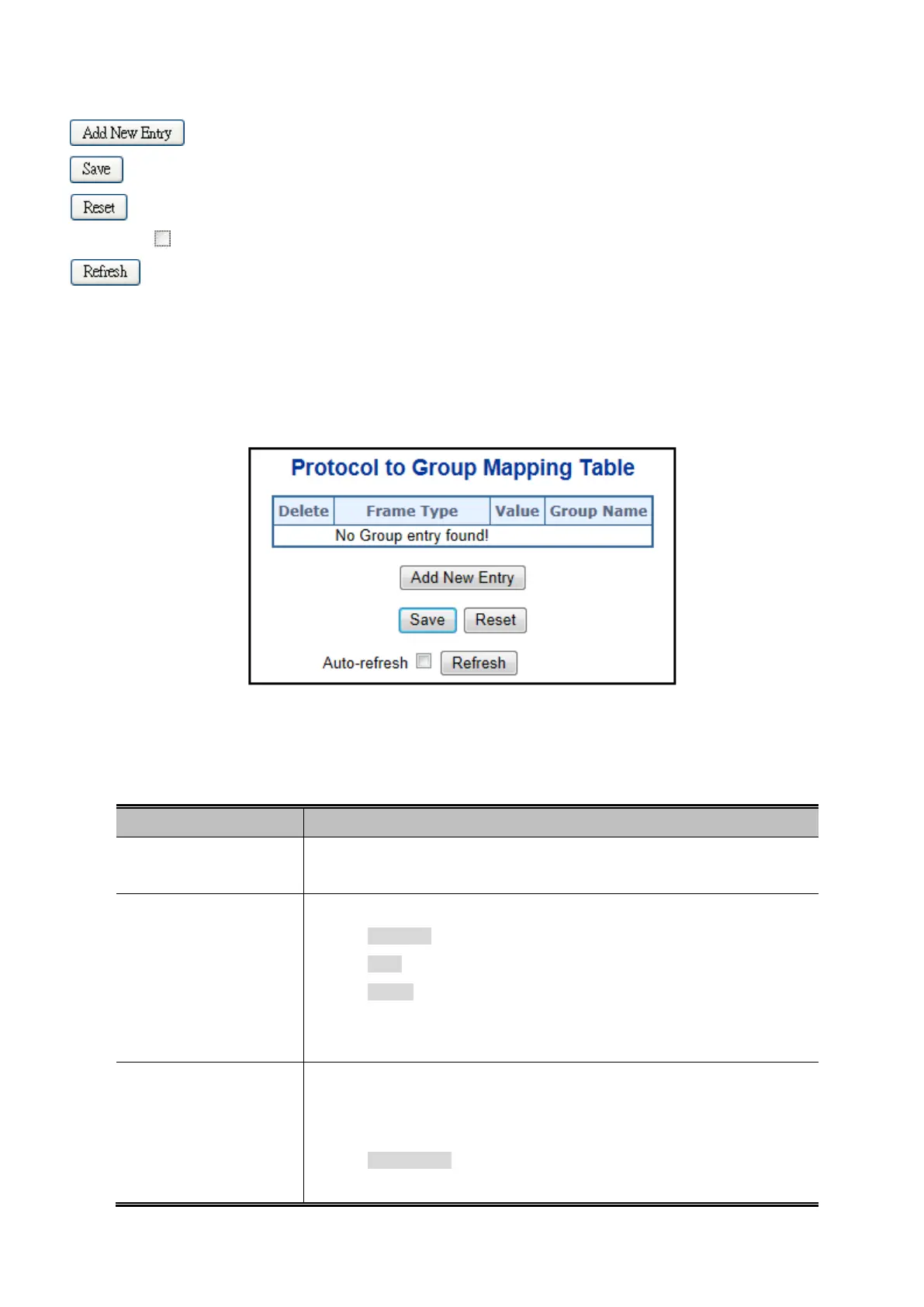

and delete already mapped entries for the switch. The Protocol-based VLAN screen in Figure 4-6-20 appears.
Figure 4-6-20: Protocol to Group Mapping Table Page Screenshot
The Page includes the following fields:
Object Description
• Delete
To delete a Protocol to Group Name map entry, check this box. The entry will be
deleted on the switch during the next Save.
• Frame Type
Frame Type can have one of the following values:
1. Ethernet
2. LLC
3. SNAP
Note: On changing the Frame type field, valid value of the following text field will
vary depending on the new frame type you selected.
• Value
Valid value that can be entered in this text field depends on the option selected
from the the preceding Frame Type selection menu.
Below is the criteria for three different Frame Types:
1. For Ethernet: Values in the text field when Ethernet is selected as a
Frame Type is called etype. Valid values for etype ranges from
