4.15.1 Ping
This Page allows you to issue ICMP PING packets to troubleshoot IP connectivity issues.
After you press “Start”, 5 ICMP packets are transmitted, and the sequence number and roundtrip time are displayed upon
reception of a reply. The Page refreshes automatically until responses to all packets are received, or until a timeout occurs. The
ICMP Ping screen in Figure 4-15-1 appears.

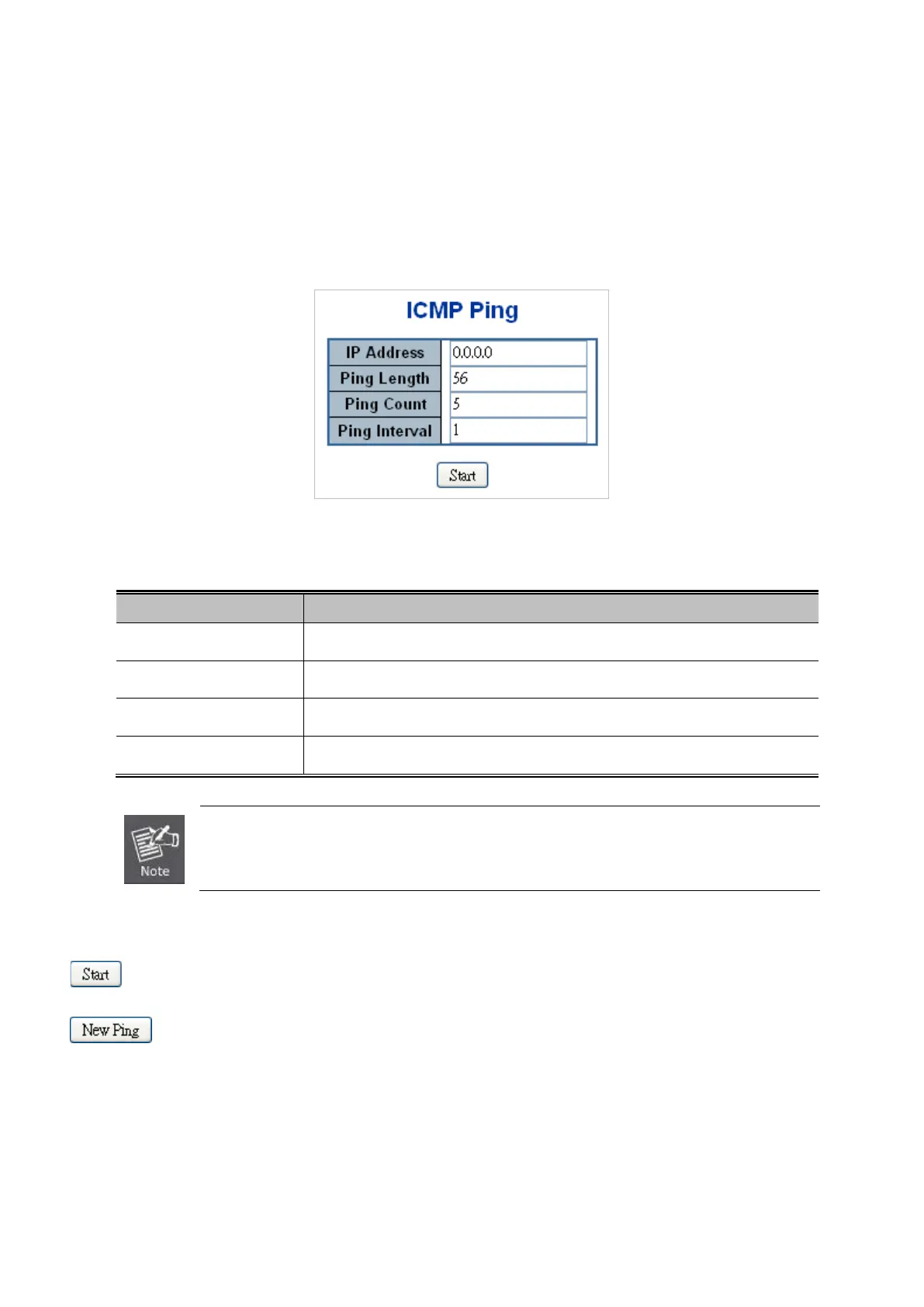

Figure 4-15-1: ICMP Ping Page Screenshot
The Page includes the following fields:
Object Description
• IP Address
The destination IP Address.
• Ping Length
The payload size of the ICMP packet. Values range from 2 bytes to 1452 bytes.
• Ping Count
The count of the ICMP packet. Values range from 1 time to 60 times.
• Ping Interval
The interval of the ICMP packet. Values range from 0 second to 30 seconds.
Be sure the target IP Address is within the same network subnet of the Managed S
witch, or you had
setup the correct gateway IP address.
Buttons
: Click to transmit ICMP packets.
: Click to re-start diagnostics with PING.
