User’s Manual of WGSW-20160HP/WGSW-24040HP series

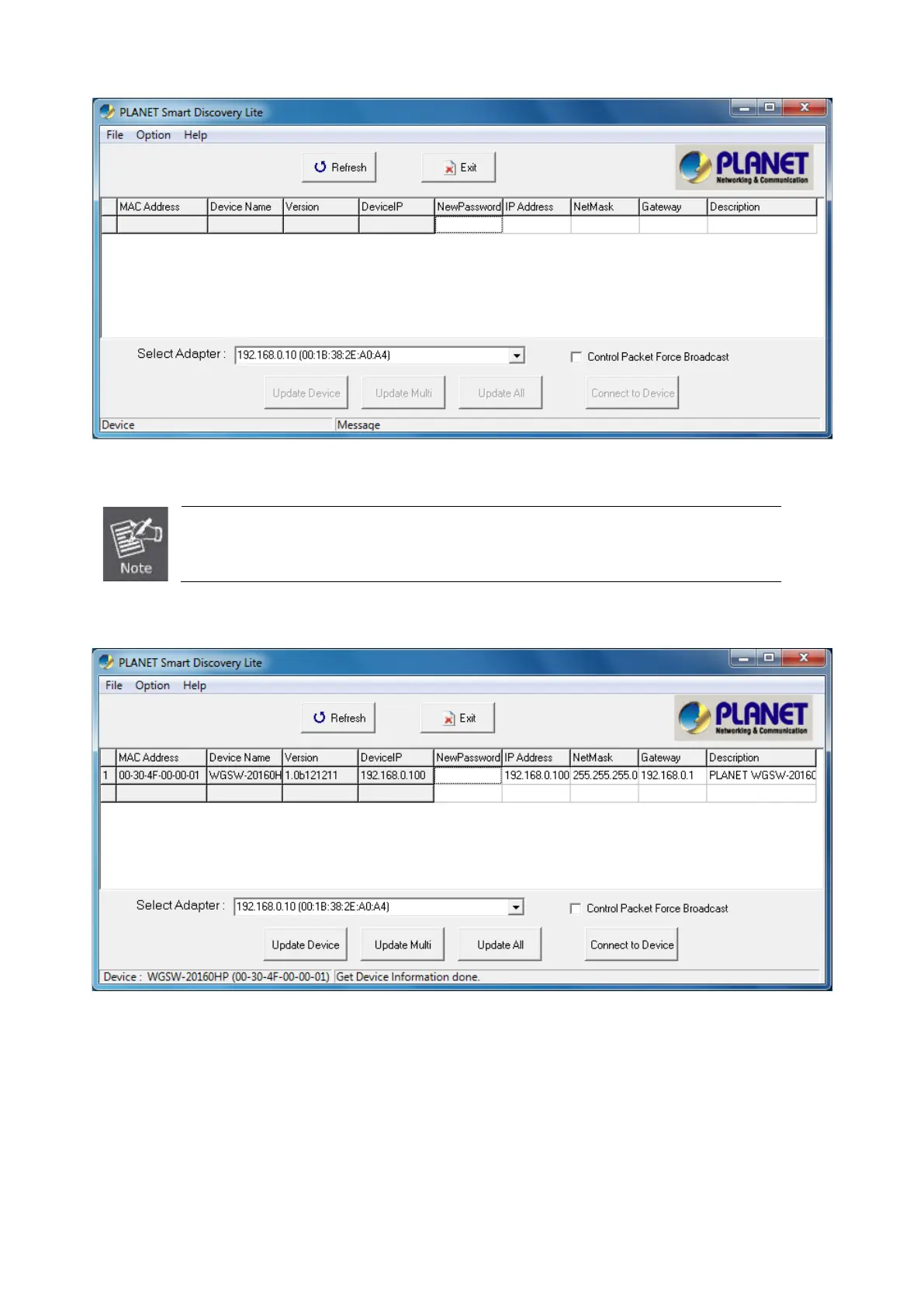

Figure 3-6: Planet Smart Discovery Utility Screen
If there are two LAN cards or above in the same administrator PC, choose diffe
using the “Select Adapter” tool.
3. Press “Refresh” button for the currently connected devices in the discovery list as the screen shows below:
Figure 3-7: Planet Smart Discovery Utility Screen
1. This utility shows all necessary information from the devices, such as MAC Address, Device Name, firmware version, and
Device IP Subnet address. It can also assign new password, IP Subnet address and description for the devices.
2. After setup is completed, press “Update Device”, “Update Multi” or “Update All” button to take effect. The meaning of
the 3 buttons above are shown as below:
Update Device: use current setting on one single device.
To Next Page
