Flat Belt Installation - Upper Arm Cam
11 Lay the replacement flat belt on a flat surface with the flat belt segments facing up. Measure the distance
in from the end of the flat belt 10 inches. Using a straight edge and permanent marker draw a line across
the flat belt at 10 inches. Repeat this process for the other end of the flat belt.

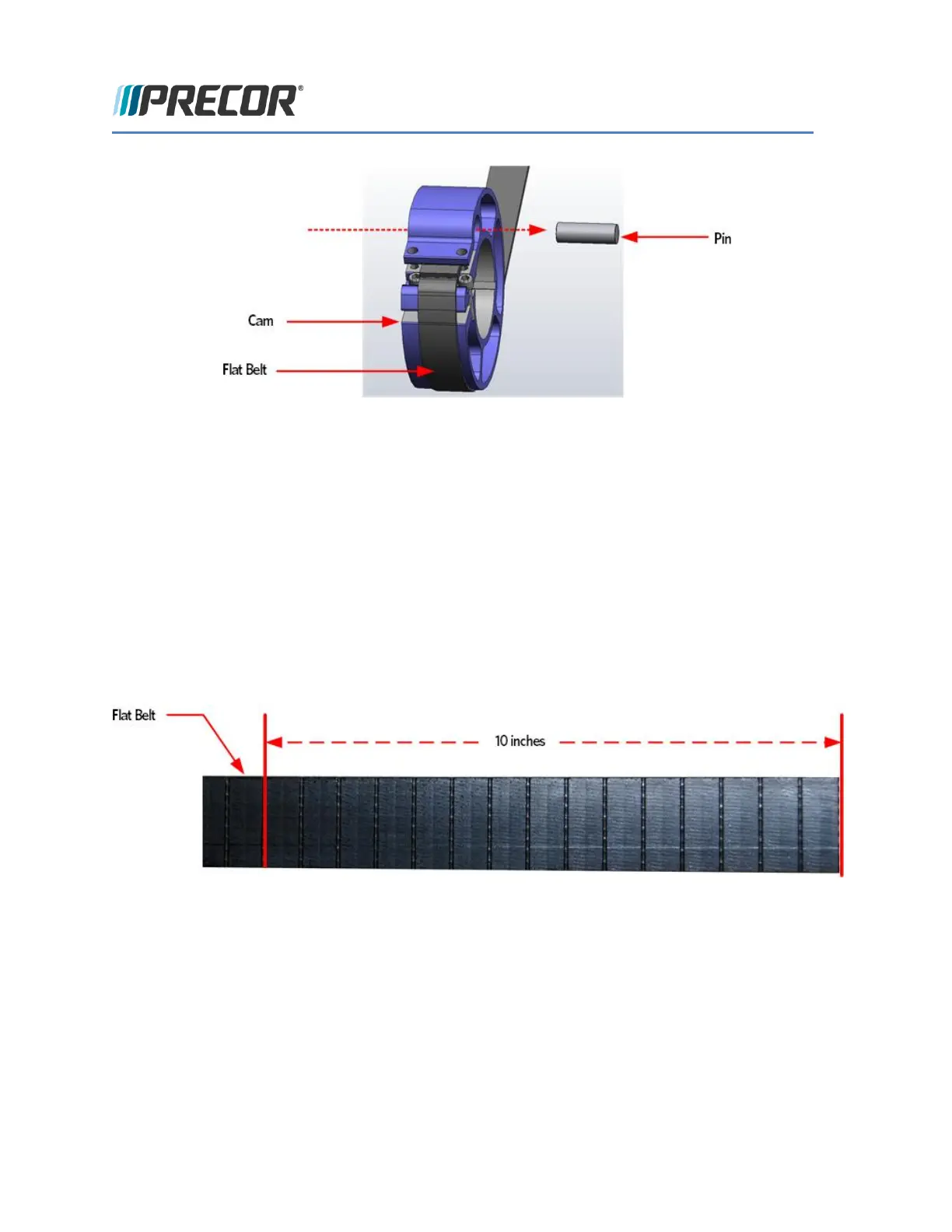

FIGURE 64: FLAT BELT END MEASUREMENT
12 Place the inside flat belt on the cam so the length of the flat belt is draped towards the back of the AMT.
Make sure the smooth side of the flat belt contacts the cam and the segmented side is facing up.
13 Install a replacement 1/4-20X1 screw and shim in one of the cam clamp screw holes, do not fully tighten
at this time.
FIGURE 65: UPPER INSIDE CAM FLAT BELT ROUTING
