Outside Flat Belt Replacement
Upper Arm Cover Removal

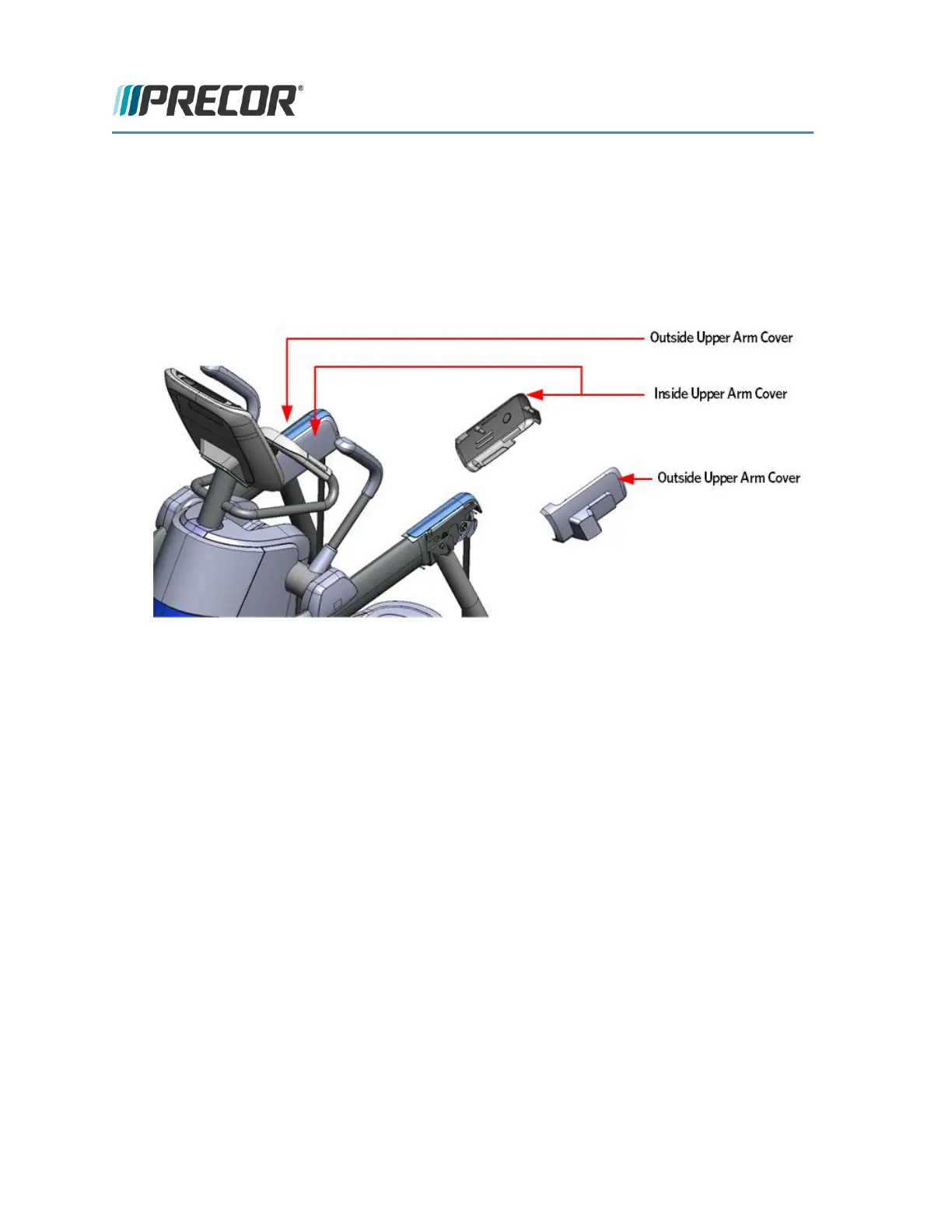

FIGURE 70: UPPER ARM COVERS
1 Remove the four screws that fasten the inside upper arm covers to the upper arm.
2 Remove the screw that fasten the outside upper arm covers to the upper arm.
3 Remove the inside and outside covers from the upper arm.
4 Repeat the process for the remaining upper arm covers.
