© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 101
14 Loop the end of the flat belt back to the 10 inch mark. While holding the flat belt end on the 10 inch
mark, work the loop into the cam clamp. A 1/2 inch deep set socket can be used to assist in pushing the
belt into place. When the flat belt loop is about half way into the cam clamp, push the pin into the flat
belt loop.
15 Continue to work the flat belt loop and pin into the cam clamp until the side of the flat belt is resting next
to the clamp screw. Ensure the pin is centered within the cam clamp.

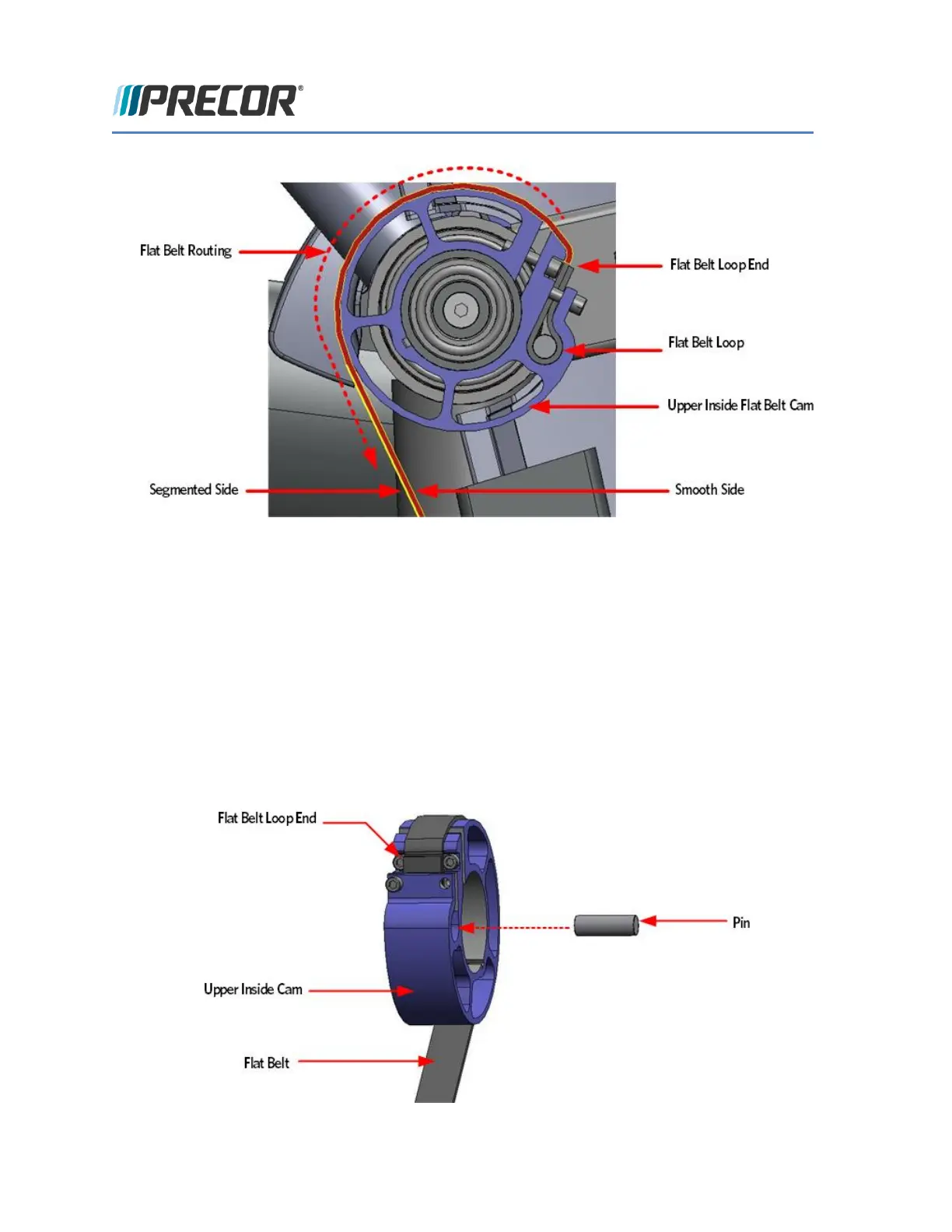

FIGURE 66: UPPER INSIDE CAM PIN INSTALL
