Flat Belt Removal - Rear Terminal
Note: Any time the flat belt terminal screws are removed from the flat belt clamp or cams, the screws
must be discarded and replaced with new screws.
10 Remove and discard the two 1/4-20X1 screws and shims that secure the flat belt to the clamp.

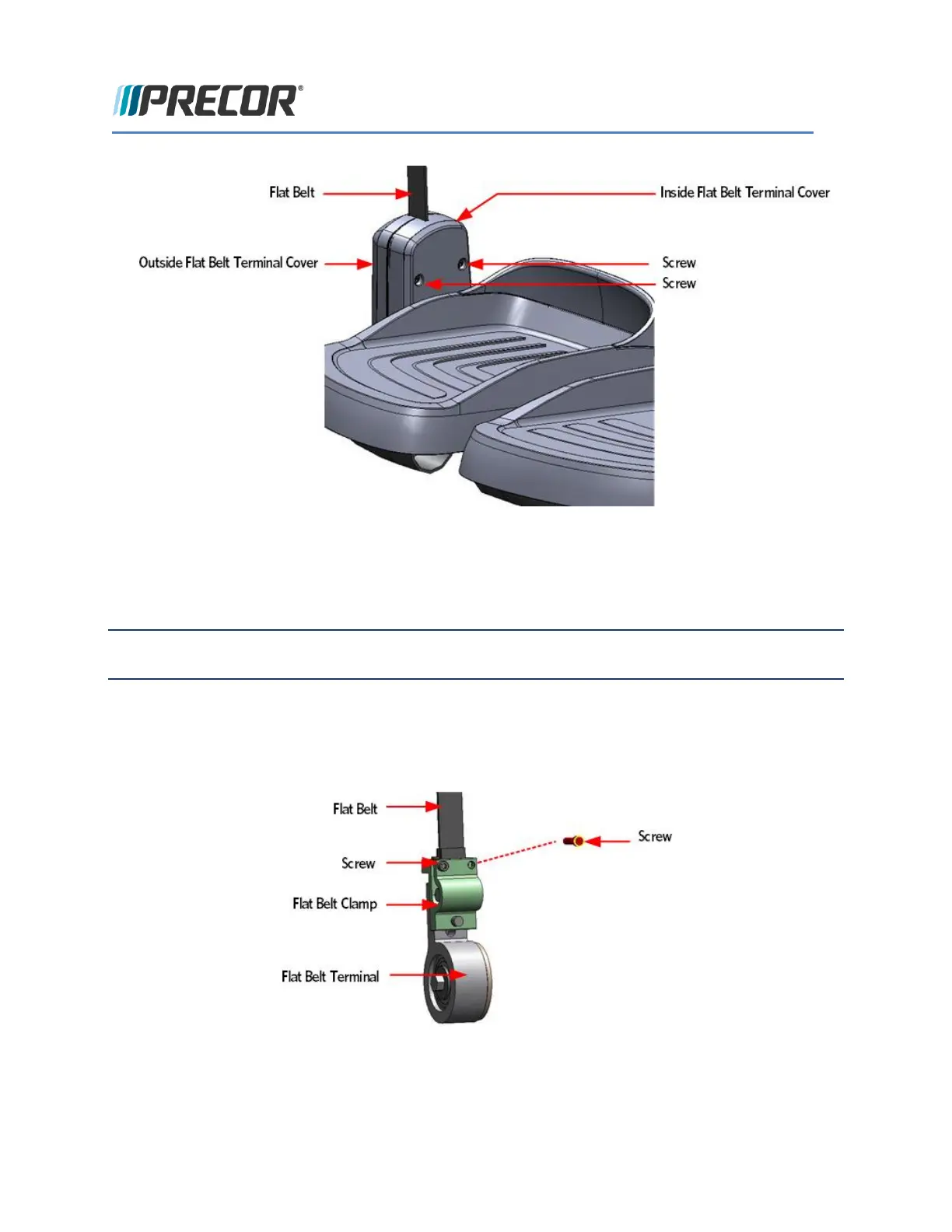

FIGURE 77: FLAT BELT REMOVAL - TERMINAL
11 Using a screwdriver, push out the pin from the flat belt loop and clamp and then slide the flat belt out of
the clamp. A 1/2 inch socket will fit the inside diameter of the flat belt clamp and can be used to push
the flat belt out of the flat belt clamp.
