© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 76
7 Remove the mounting bolt and washer that secure the flat belt terminal to the stairarm, remove the flat
belt terminal and anti-rotation disc.

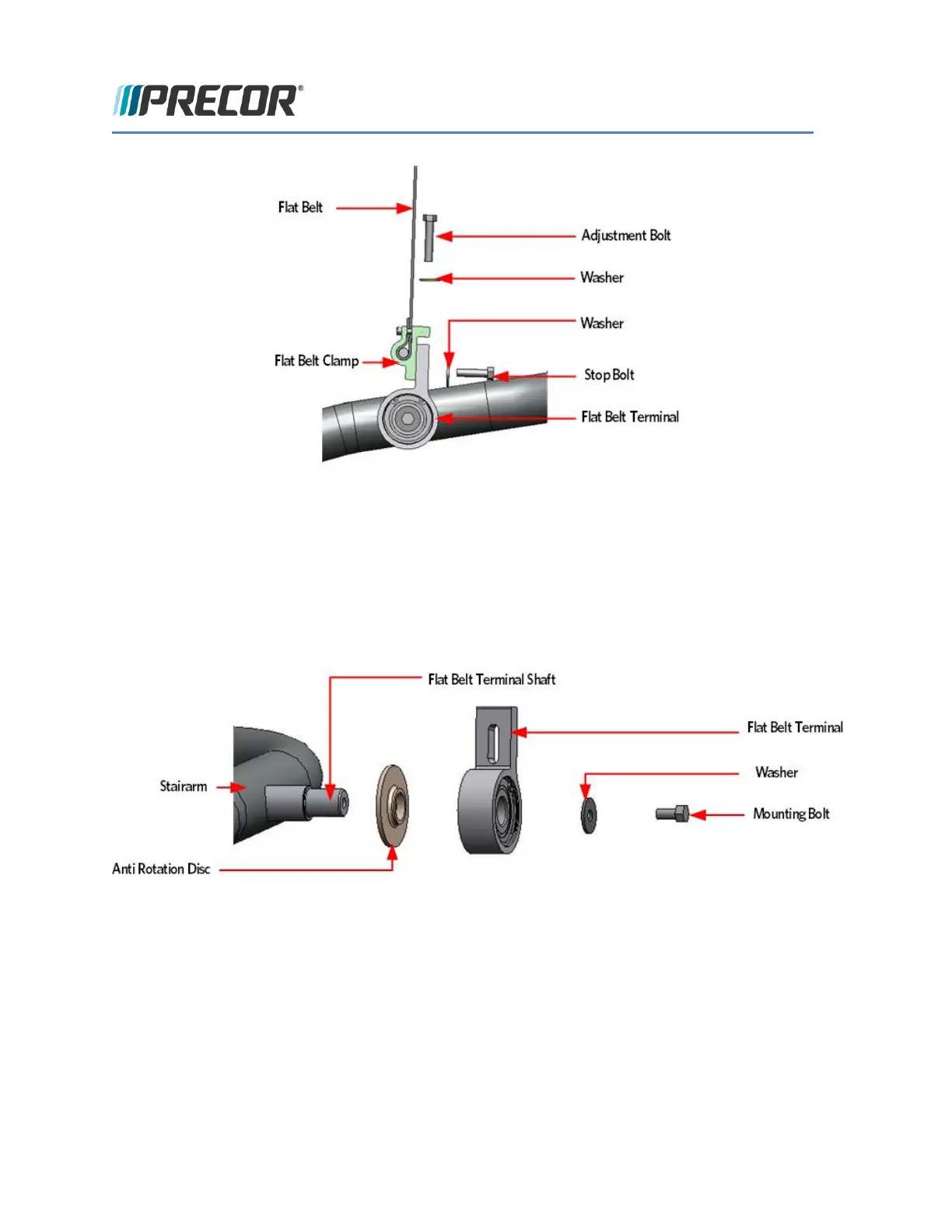

FIGURE 35: FLAT BELT TERMINAL REMOVAL
Flat Belt Terminal Installation
8 Apply a thin layer of AMSOIL GPOR1 synthetic polymeric grease to the flat belt terminal shaft.
9 Carefully slide on the anti-rotation disc and flat belt terminal. Do not use excessive force. Fasten the
anti-rotation disc and replacement flat belt terminal onto the stairarm using the washer and mounting
bolt removed in step 5, torque to 300 inch pounds or 25 foot pounds.
10 Fasten the stop bolt and washer to the flat belt clamp, but do not fully tighten at this time.
11 Thread the adjustment bolt through the washer, flat belt clamp and into the flat belt terminal.
