Stride count greater than 100 million
strides
Display "Belts Change Required"
Inside Flat Belt Replacement
1 Remove the main body covers as per procedure, Cover Replacement (on page 53).
2 Remove the screw that secures the belt keeper to the frame and remove the belt keeper.
3 Remove the tension from the inner flat belt pulleys by lifting up on the stairarms, pulling the flat belts off
the flat belt pulleys, and then gently setting the stairarm down.
Flat Belt Removal - Front Clamp
4 Remove the two mounting bolts and washers that secure the front flat belt clamp to the platform.

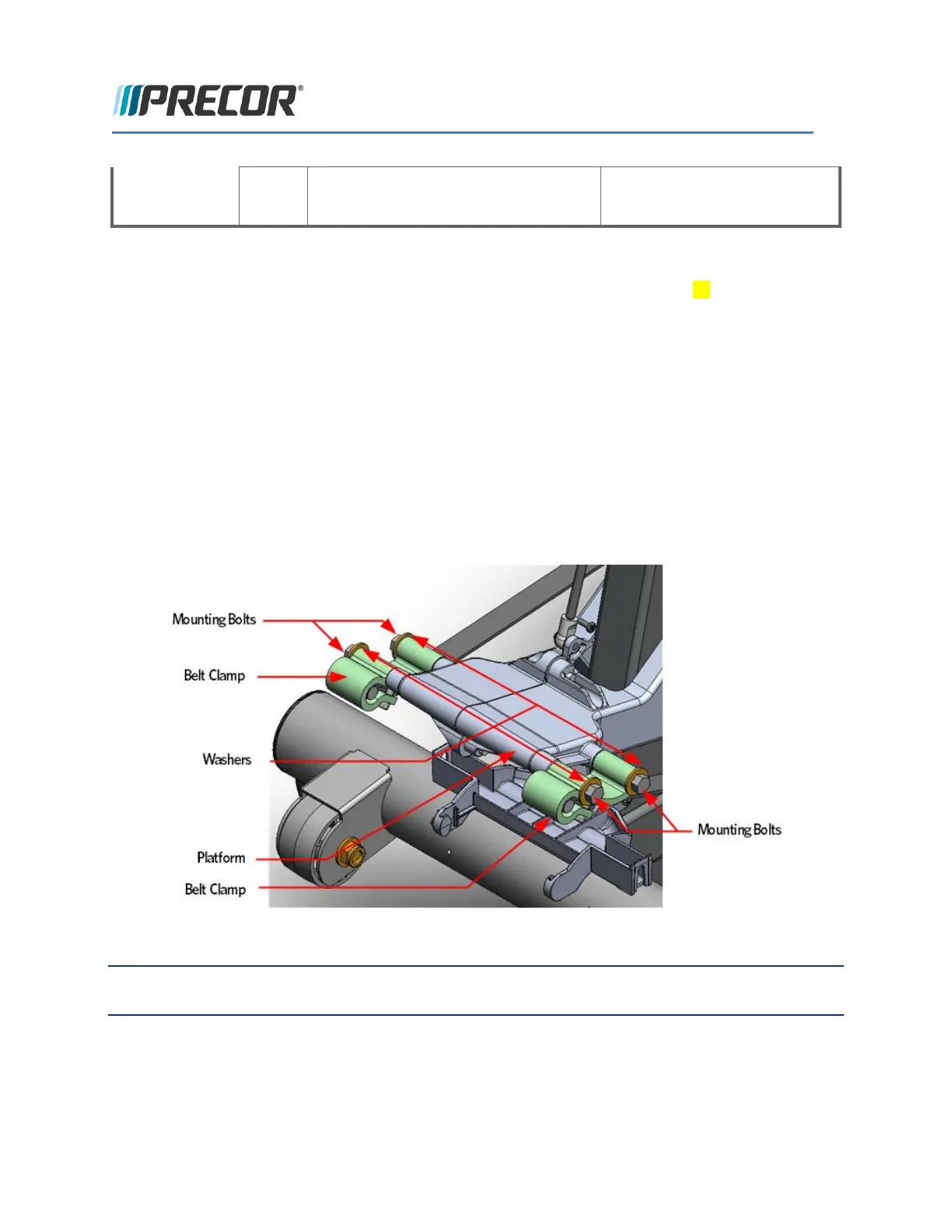

FIGURE 59: FRONT BELT CLAMPS
Note: Any time the flat belt terminal screws are removed from the flat belt clamp or cams, the screws
must be discarded and replaced with new screws.
5 Temporarily reinstall the two belt clamp mounting bolts without the washers. Having the belt clamp
installed without the washers will help ease the removal and installation of the flat belts.
6 Remove and discard the two 1/4-20X1 flat belt clamp screws and shims that secure the flat belt to the
clamp.
