© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 112

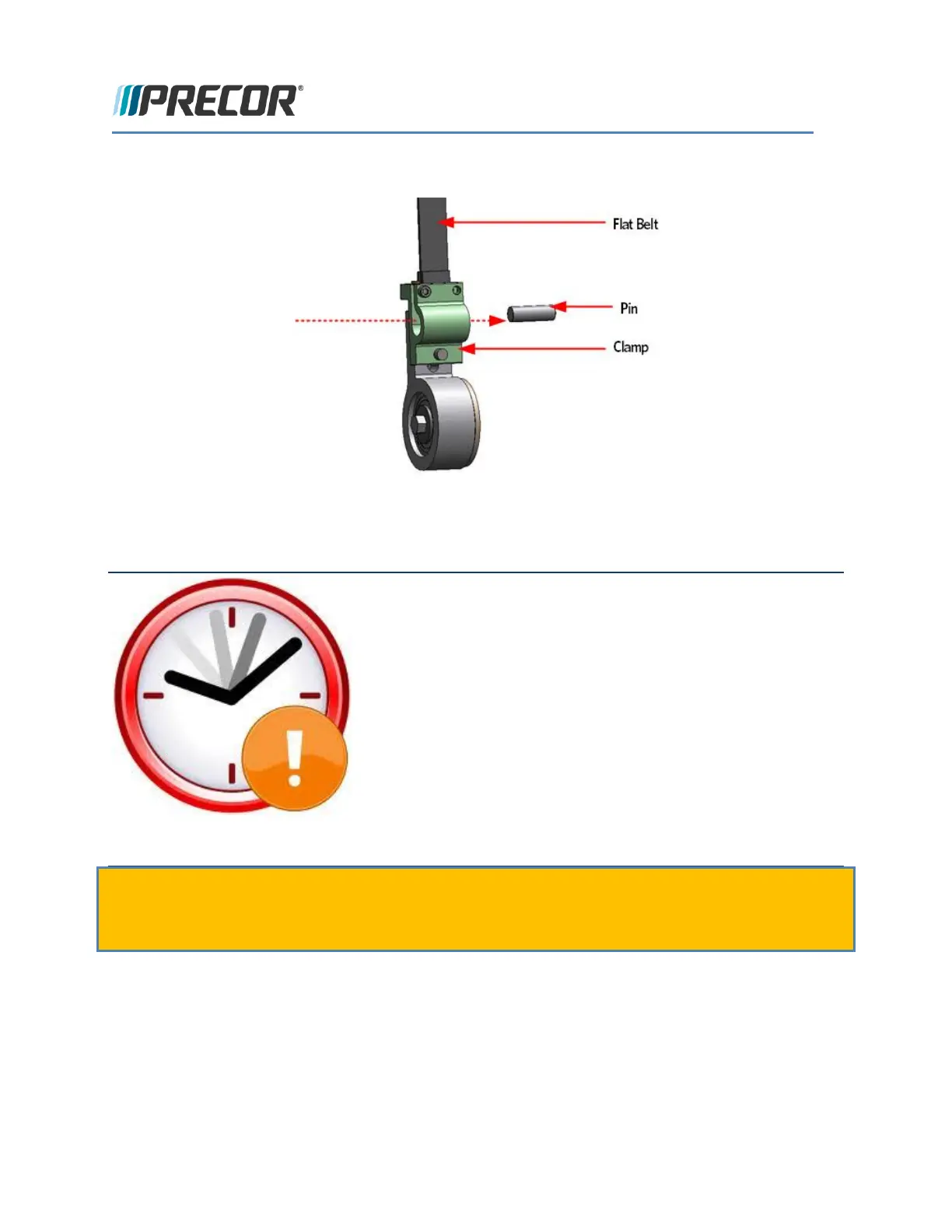

FIGURE 78: FLAT BELT PIN REMOVAL
Upper Arm Flat Belt Pulley Removal
Time Saver Tip: When installing the replacement flat belt, tape the end
of the replacement belt to the old flat belt at the cam side and then pull the new belt through the upper arm
as the old belt is removed.
If the belt has already been removed, you can use a fish tape or coat hanger to pull the belt through
the upper arm. Ensure the flat belt is routed over the top of any hardware that may be crossing the
inside of the upper arm.
12 If the flat belt cannot be pulled through the upper arm by taping a new belt to the old belt or with a fish
tape, continue with the next steps, otherwise skip to the Flat Belt Removal - Upper Arm Cam procedure.
13 Remove the mounting bolt, the two washers and the nut that secure the upper arm pulley to the upper
arm.
FIGURE 79: UPPER ARM FLAT BELT PULLEY MOUNTING
