© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 103
Flat Belt Installation - Front Clamp
18 Install a replacement 1/4-20X1 screw and a shim in one of the clamp screw holes, do not fully tighten at
this time.
19 Loop the end of the flat belt to the 10 inch mark. While holding the flat belt end on the 10 mark, work the
loop into the terminal belt clamp. A 1/2 inch deep set socket can be used to assist in pushing the belt
into place. When the flat belt loop is about half way into the terminal clamp, push the pin into the flat belt
loop.
20 Continue to work the flat belt loop and pin into the terminal clamp until the side of the flat belt is resting
next to the clamp screw. Ensure the pin is centered within the terminal clamp.

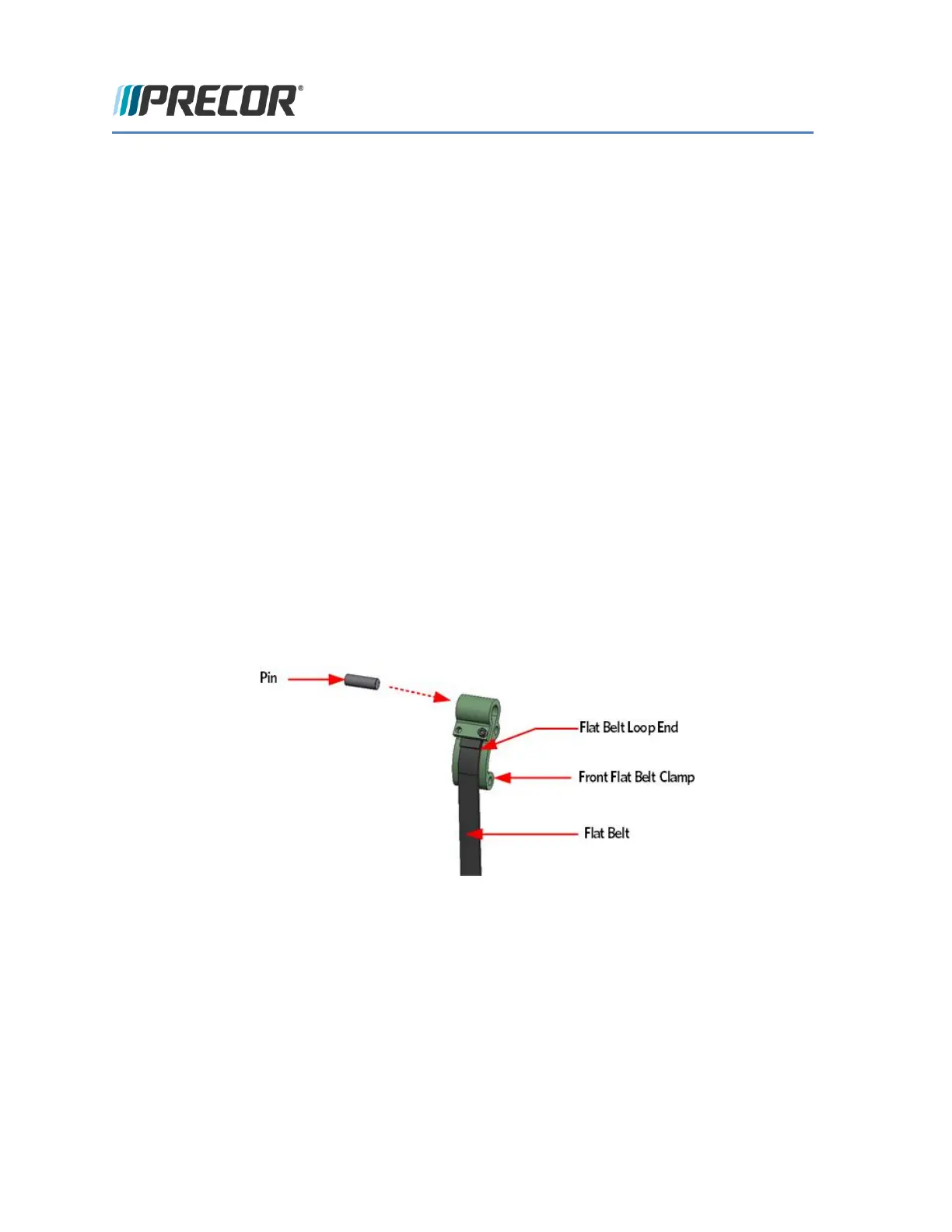

FIGURE 68: FRONT FLAT BELT CLAMP PIN MOUNTING
21 Install the second1/4-20X1 screw and shim that secure the flat belt to the clamp, do not fully tighten at
this time.
Inside Flat Belt Alignment
22 The flat belts ends will now need to be adjusted to their final position before the flat belt clamp screws
can be tightened. Gently press downward on the stairarm pedal that corresponds to the replacement
belt.
