© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 86

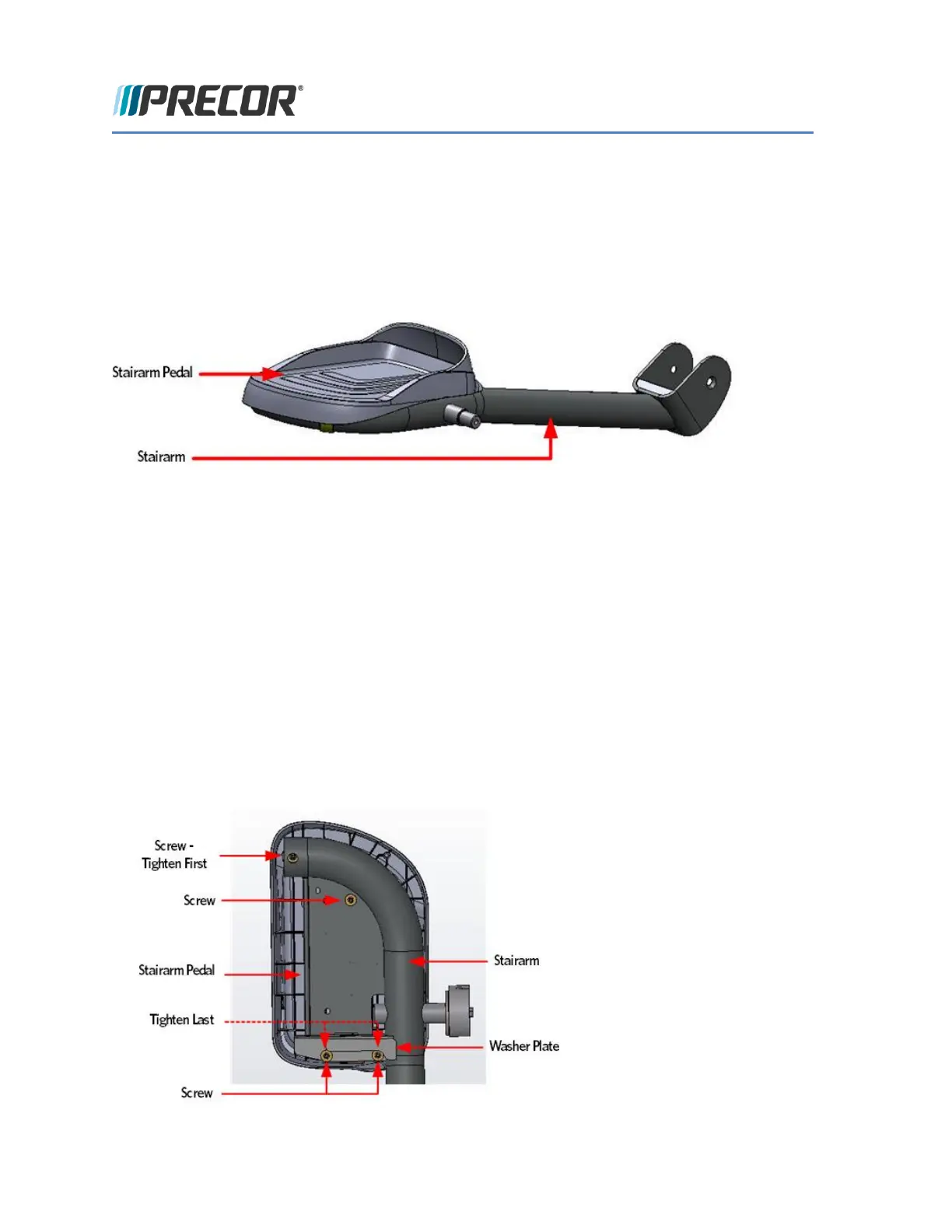

FIGURE 47: STAIRARM AND STAIRARM PEDAL
Stairarm Pedal Replacement Procedure
1 Pivot the stairarm up into a vertical position. Note: The following procedure will be much more efficient
if an assistant holds the stairarm up.
2 Remove the four screws, washers and washer plate that secure the stairarm pedal to the stairarm,
remove the stairarm pedal.
3 Fasten the replacement stairarm pedal to the stairarm using the four screws, washers and washer plate
removed in step 2.
4 Torque the screws to 15 inch pounds, starting from the single screw at the end of the stairarm, than
screw mounted in the middle, finally the two rear pedal screws.
FIGURE 48: STAIRARM AND STAIRARM PEDAL SCREW LOCATIONS
