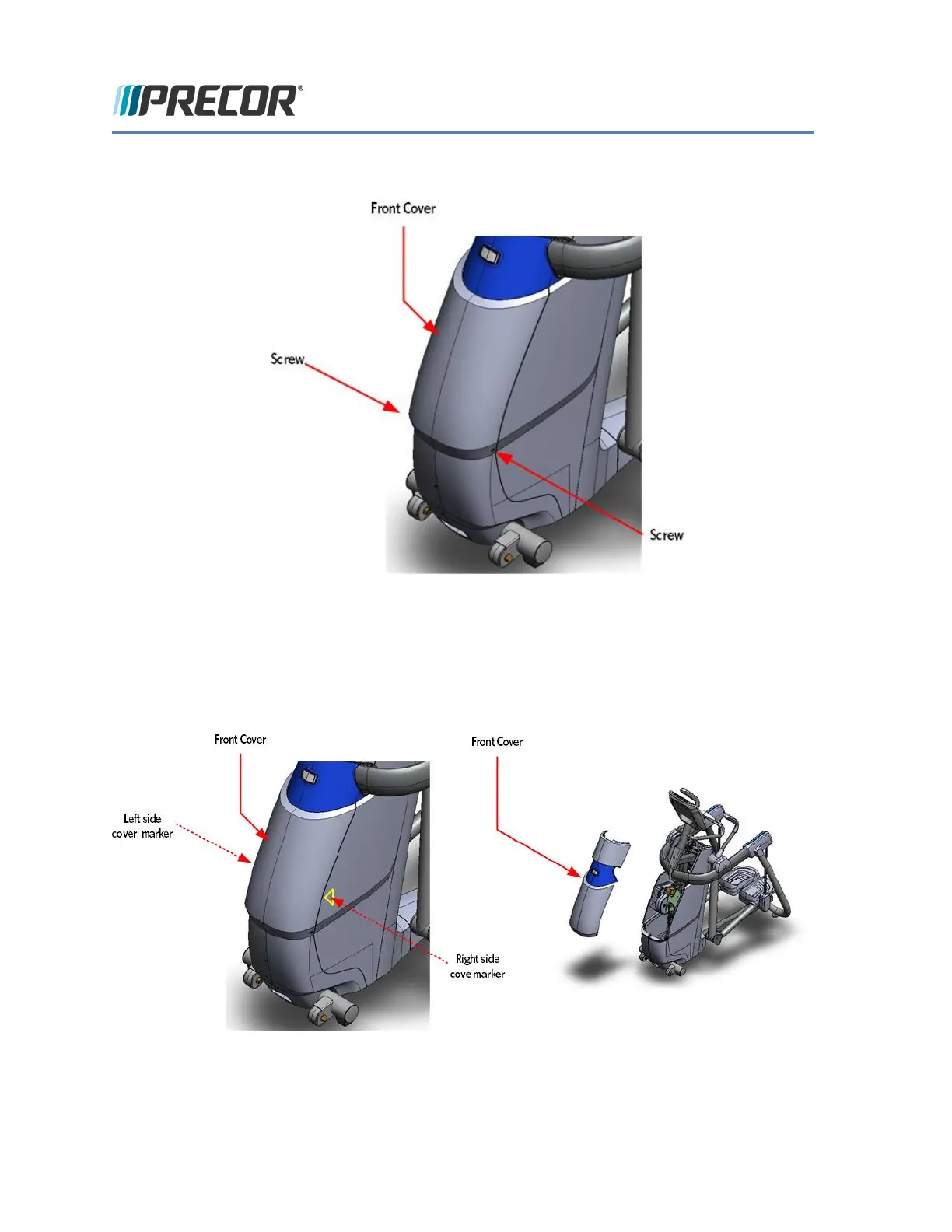

FIGURE 6: FRONT COVER - SCREW LOCATIONS
2 There are two triangle markers embossed into the left and right side covers, the markers indicate locking
joints. Place the heels of your hands just above the left and right side triangle markers. Gently tap the
triangle markers with the palm of your hand, the locking tabs will release and the front can be removed.
FIGURE 7: SIDE COVER MARKERS AND FRONT COVER
Center Beam Cover Removal
1 Remove the platform.
