9 Install the replacement drive input assembly by aligning the bearing snap ring opening with tab of the
drive input housing.
10 Fasten the drive input assembly to the drive input housing using the screw and square washer. Make
sure that the square washer does not contact the drive input pulley after installation, test by spinning
the drive input pulley through its full range.

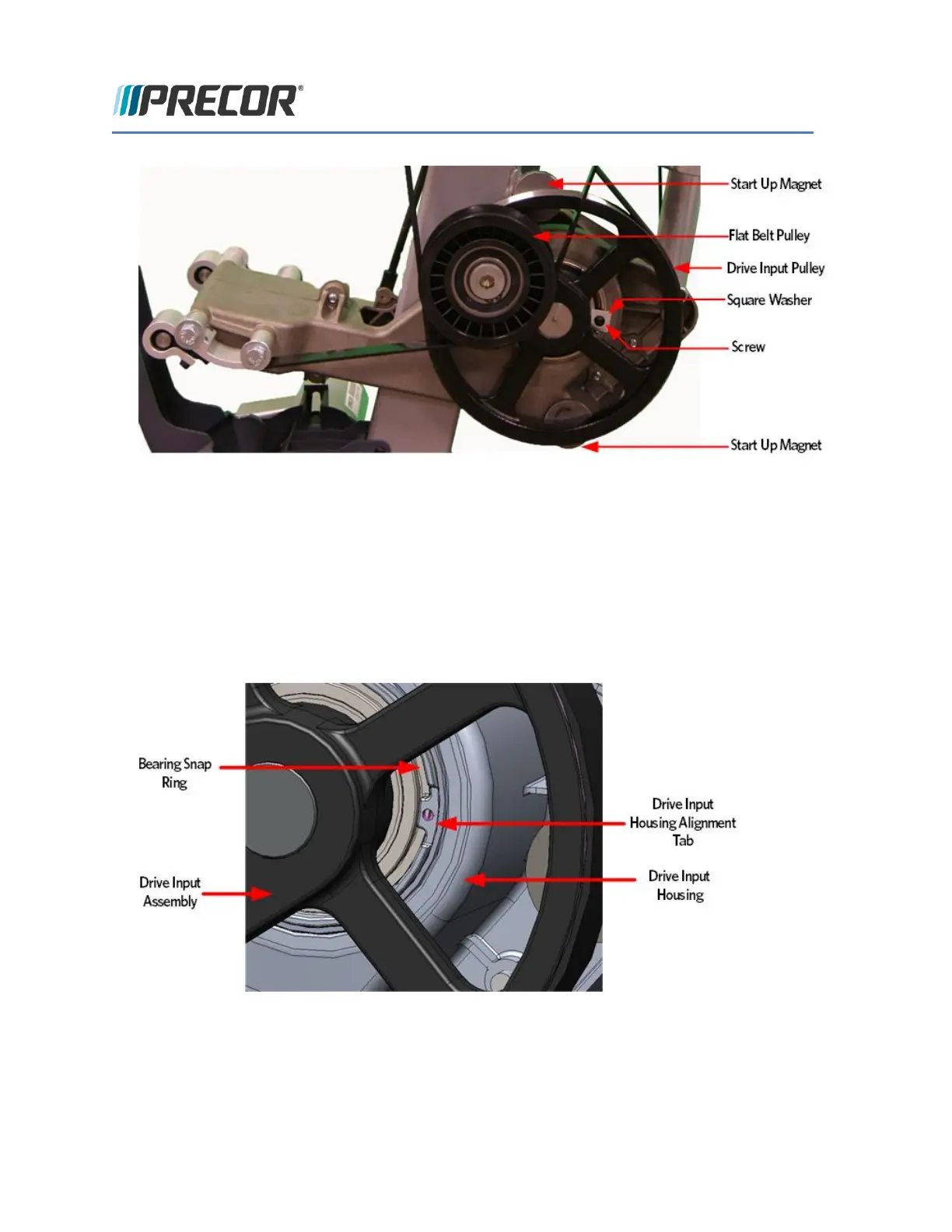

FIGURE 167: DRIVE INPUT ASSEMBLY ALIGNMENT
11 Replace the drive input belt over the drive input pulley and the step up pulley.
12 Place the crank arm on the shaft and secure the crank arm with mounting bolt and washer. To tighten
the crank arm mounting bolt, insert a socket extension about twelve inches long or equivalent in the
